Schematic Diagram

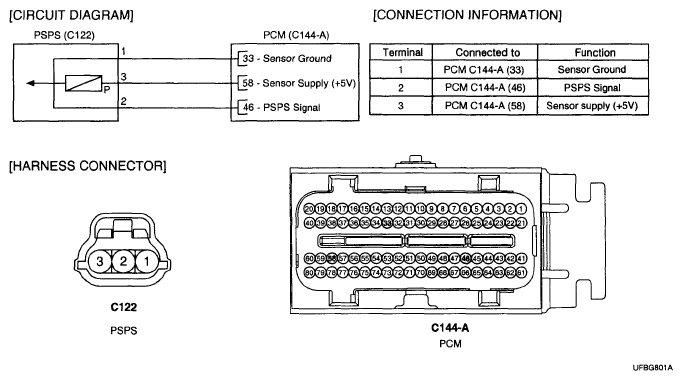

Fig 1: Power Steering Pressure Sensor/Switch Circuit - Schematic Diagram (Low Input)

G04879915

Courtesy of HYUNDAI MOTOR CO.
