Schematic Diagram

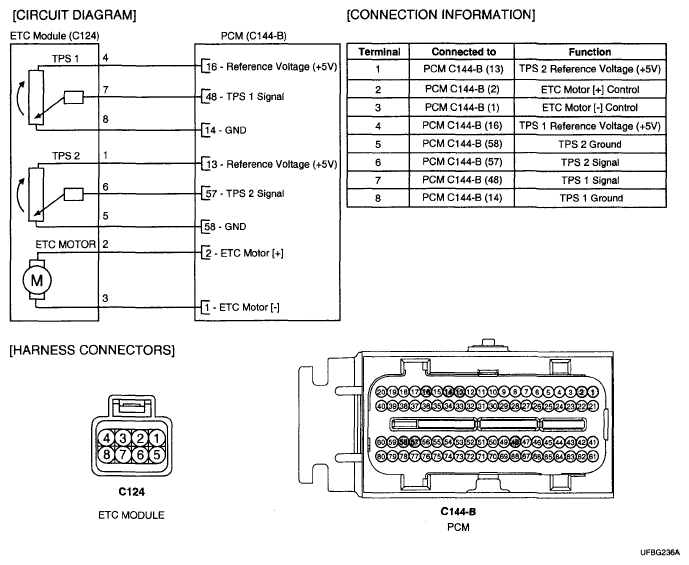

Fig 1: Electronic Throttle Control Module - Schematic Diagram

G04879811

Courtesy of HYUNDAI MOTOR CO.
