Home >> Hyundai >> 2006 >> Azera SE >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (1 Of 2) >> DTC Troubleshooting Procedures >> DTC P0196 Engine Oil Temp. Sensor Range / Performance >> Schematic Diagram

Schematic Diagram

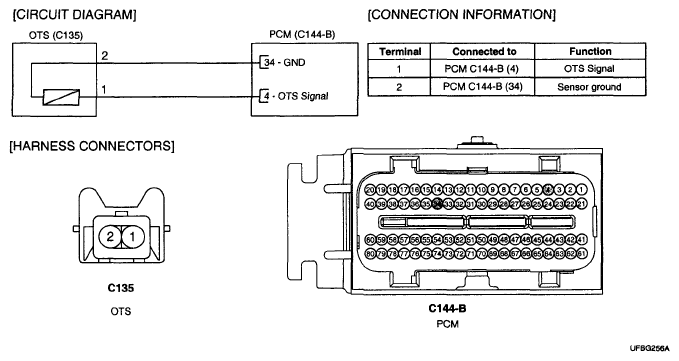

Fig 1: Oil Temperature Sensor - Schematic Diagram

G04884478

Courtesy of HYUNDAI MOTOR CO.
