Schematic Diagram

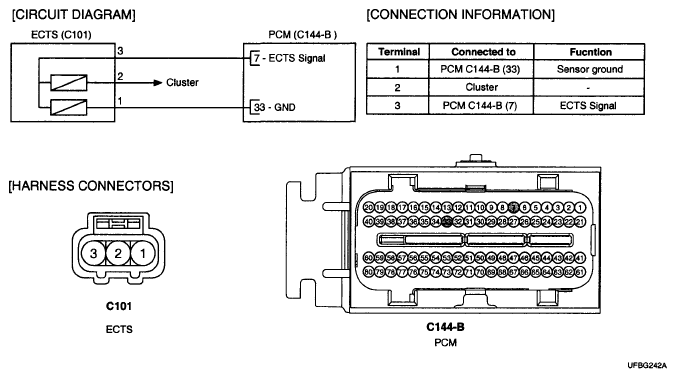

Fig 1: Engine Coolant Temperature Sensor - Schematic Diagram

G04884424

Courtesy of HYUNDAI MOTOR CO.
