Circuit Diagram For Charging System

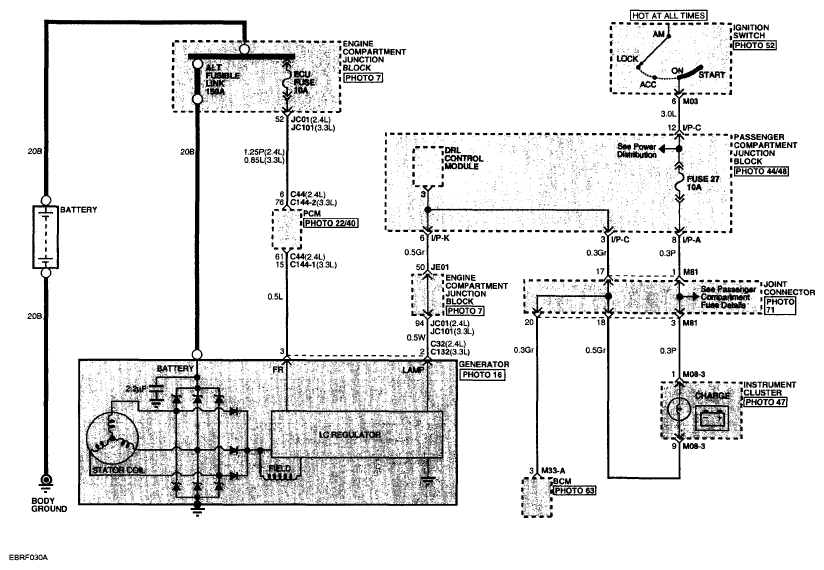

Fig 1: Circuit Diagram For Charging System

G04879721

Courtesy of HYUNDAI MOTOR CO.
