Wheel Alignment Specifications (04-50-013)

Publication date: 2004-12-01
Reference number: 04-50-013

WHEEL ALIGNMENT SPECIFICATIONS

WHEEL ALIGNMENT SPECIFICATIONS

TECHNICAL SERVICE BULLETIN

Reference Number(s): 04-50-013, Date of Issue:  DECEMBER, 2004
HYUNDAI: ALL 2005 MODELS
GROUP: CHASSIS

DESCRIPTION

The table below lists the 2005 model year vehicle wheel alignment specifications.

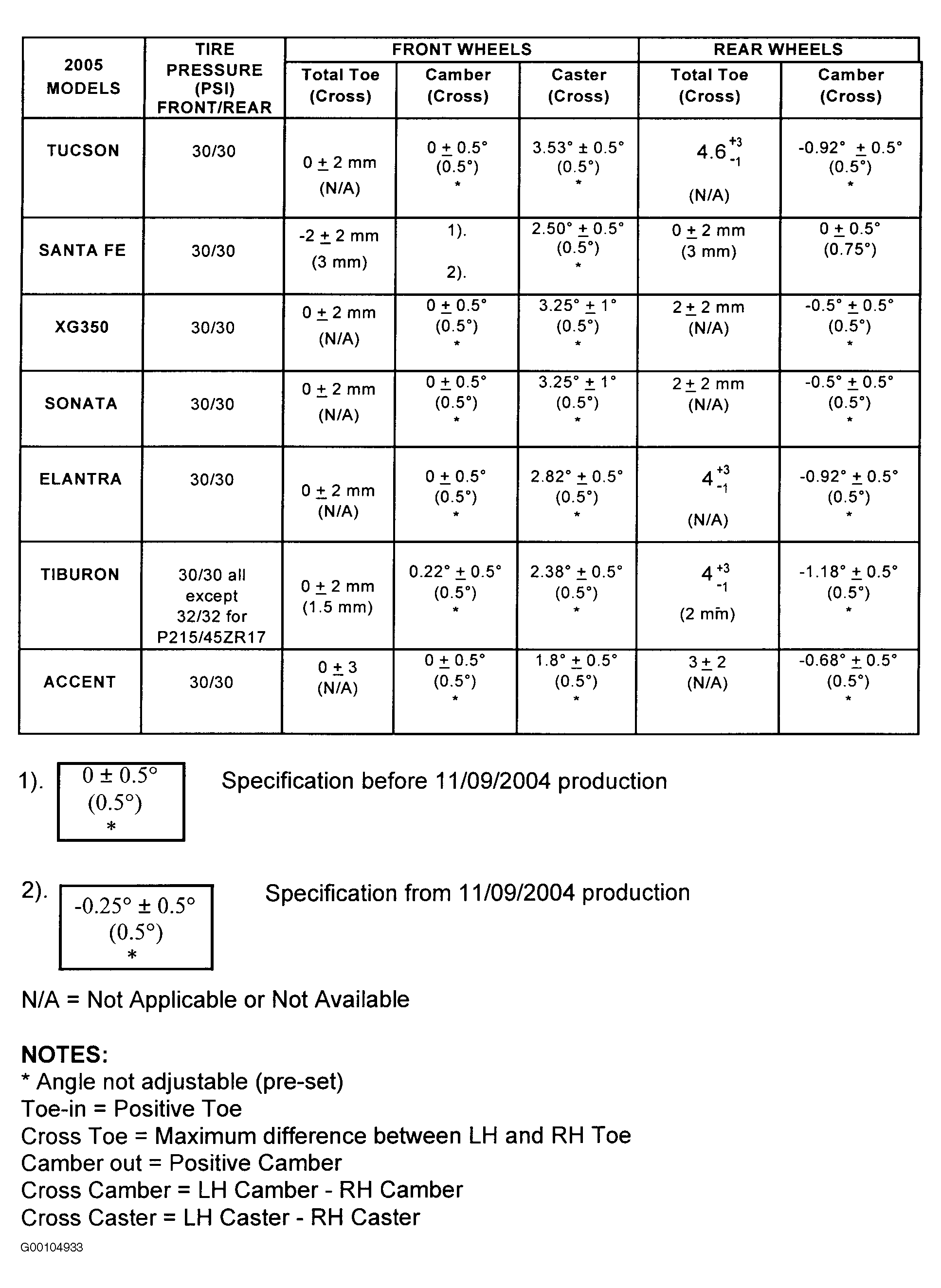

2005 MODEL YEAR ALIGNMENT SPECIFICATIONS CHART

Fig 1: 2005 Model Year Alignment Specifications
G00104933

Vehicle may tend to lead or drift:

  1. Towards the side with the most positive camber
  2. Towards the side with the least positive caster

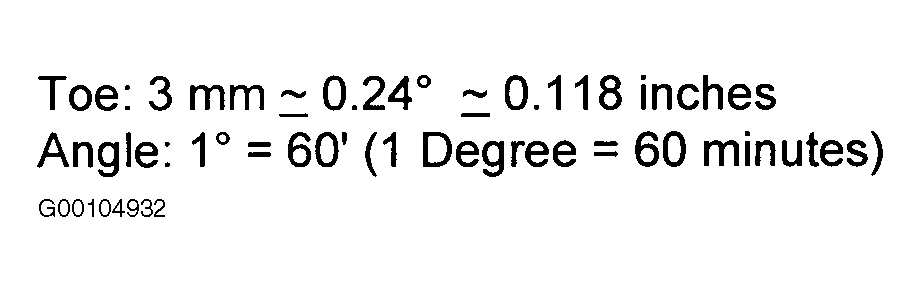

CONVERSIONS

Fig 2: Conversion Specifications
G00104932
