2005 XG350 Pcm Program Refinement - Improved DRIVEABILITY (07-36-002)

Publication date: 2007-02-01
Reference number: 07-36-002

2005 XG350 PCM PROGRAM REFINEMENT - IMPROVED DRIVEABILITY

2005 XG350 PCM PROGRAM REFINEMENT - IMPROVED DRIVEABILITY

TECHNICAL SERVICE BULLETIN

Reference Number(s): 07-36-002, Date of Issue:  FEBRUARY, 2007
HYUNDAI: 2005 XG350
GROUP: ENGINE ELECTRICAL

DESCRIPTION

This bulletin provides a procedure to reprogram the PCM software in 2005 model year XG350 vehicles to improve driveability while accelerating during cold engine operation or after starting the engine.

VEHICLES AFFECTED

CAUTIONS DURING REPROGRAMMING

  1. Make sure the battery has reasonable charge. If the vehicle has been in storage for days run the engine at idle for at least 15 minutes to assure an adequate battery charge state for reliable reprogramming results.
  2. Perform reprogramming with the ignition key in the ON position.
  3. Turn off all lights (do not leave headlight switch in auto modes.) and all accessories (including heater/air conditioner/blower, radio, heated seats, rear defroster, etc.) to make certain the battery will not be discharged during reprogramming.
  4. Be careful not to disconnect any cables connected to the vehicle, the GDS or the laptop during reprogramming.
  5. Do not start the engine during reprogramming.
  6. Do not turn the ignition switch OFF during reprogramming.

ROM ID INFORMATION TABLE

ROM ID INFORMATION TABLE

MODEL YEAR PCM P/N ROM ID
PREVIOUS NEW
2005 39106-39250 EH0685-F0
EH0685-F1
EH0685-F2		 EH0685-F3

ECM REPROGRAMMING PROCEDURE

GDS INSTALLATION PROCEDURE

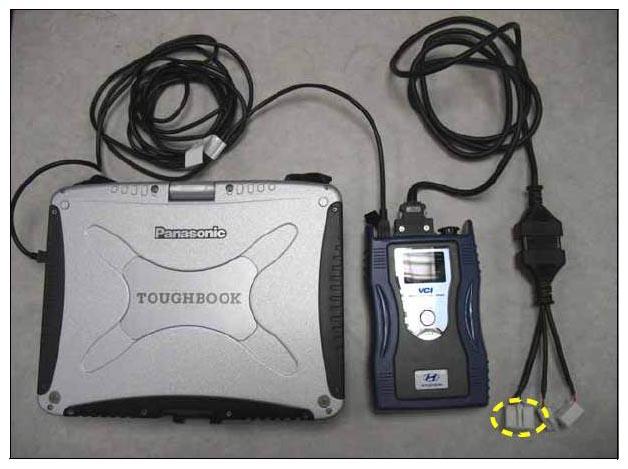

Fig 1: Identifying GDS
G05145911Courtesy of HYUNDAI MOTOR CO.
WARNING: Make sure that the battery symbol indicator at the bottom right tray of the GDS laptop shows at least 25% so there will be enough power for the reprogram; if it has less, charge the GDS laptop by connecting the power adaptor cable for at least 1/2 hour or leave it connected during the reprogram procedure if possible.
  1. Connect the USB cable between the GDS laptop USB port and the VCI.
    NOTE: When performing the reprogramming using the GDS, wireless communication between the VCI and GDS laptop cannot be used; you must connect the USB cable between the GDS laptop and the VCI.
  2. Connect the GDS 3-connector adaptor to the DLC connector from the VCI.

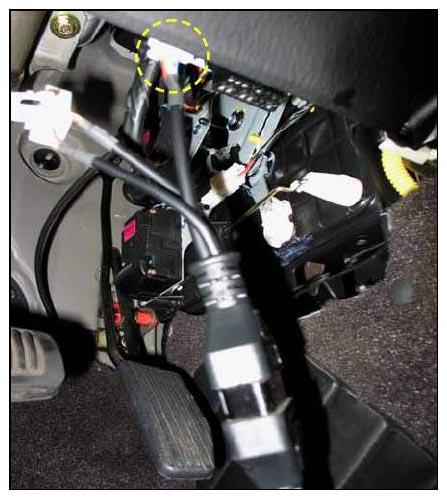

    Fig 2: Plugging GDS 3-Connector Adaptor's Larger 10-Pin Connector To Vehicle's Connector
    G05145912Courtesy of HYUNDAI MOTOR CO.
  3. Plug the GDS 3-connector adaptor's larger 10-pin connector to the vehicle's connector under the instrument panel on the driver's side located as shown in the picture above.
  4. Turn on the VCI and GDS laptop, and then perform reprogramming in accordance with the instructions below:

AUTOMATIC REPROGRAMMING PROCEDURE

Internet Update

Select the Internet Update to check that your GDS has Local Version 1.22  or higher. Below is an example of an Internet Update available to Server Version 1.22  with the current GDS Local Version at 1.20,  note the Download Start  button is available to perform the internet update:

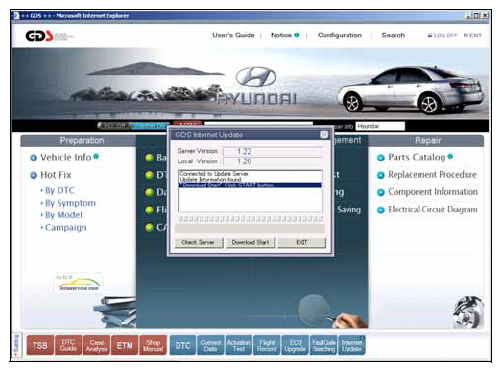

Fig 3: GDS Screen Display - Download Start
G05145913Courtesy of HYUNDAI MOTOR CO.

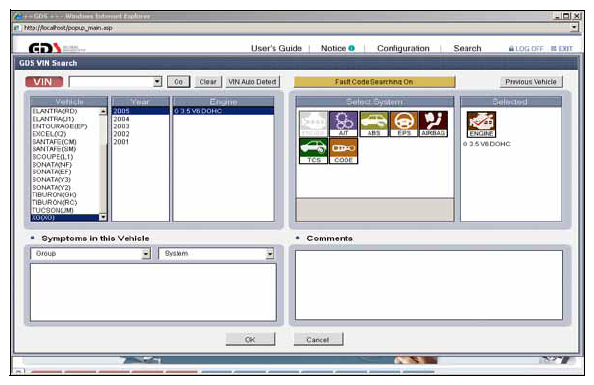

  1. Enter the vehicle information either automatically by pressing the VIN Auto Detect button  or, if this does not work, manually enter the vehicle model and model year, and select ENGINE  as the system:
    Fig 4: GDS Screen Display - VIN Auto Detect Button
    G05145914Courtesy of HYUNDAI MOTOR CO.
  2. Select ECU Upgrade:

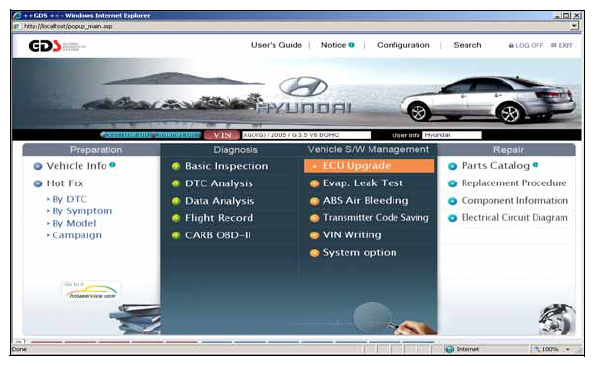

    Fig 5: GDS Screen Display - ECU Upgrade
    G05145915Courtesy of HYUNDAI MOTOR CO.
  3. Select Auto Mode  then ENGINE  at the left ECU Upgrade column and the following screen will be displayed:

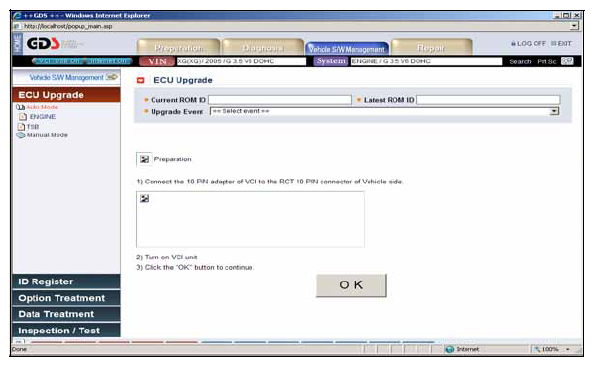

    Fig 6: GDS Screen Display - ECU Upgrade Column
    G05145916Courtesy of HYUNDAI MOTOR CO.
  4. After selecting OK,  the GDS will read the ROM ID as follows:

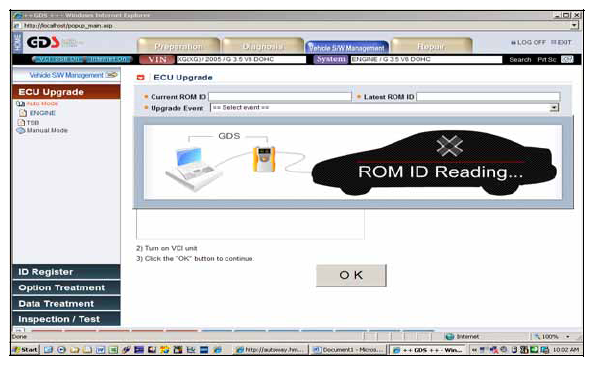

    Fig 7: GDS Screen Display - ROM ID
    G05145917Courtesy of HYUNDAI MOTOR CO.
  5. After the Current ROM ID is displayed, select Upgrade Event #83  as shown below:

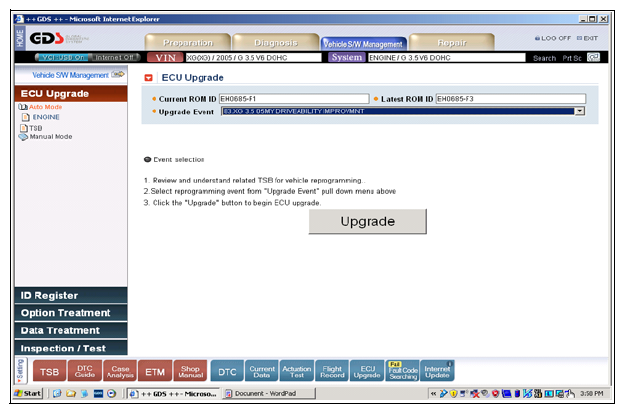

    Fig 8: GDS Screen Display - Upgrade Event #83
    G05145918Courtesy of HYUNDAI MOTOR CO.
  6. After selecting the Upgrade  button, select OK  at the following screen:

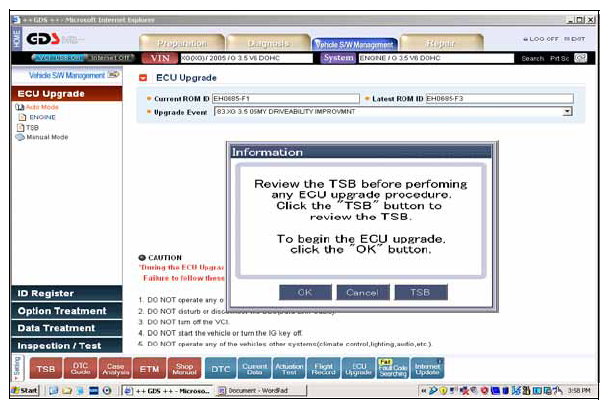

    Fig 9: GDS Screen Display - Upgrade Button
    G05145919Courtesy of HYUNDAI MOTOR CO.
  7. The vehicle battery voltage is checked to verify it is at least 12 volts as required to assure reliable reprogramming results. Select OK  at this screen if the results indicate Voltage is OK.
    WARNING: If voltage is below 12 volts, select Cancel and run the engine for 10 minutes at idle. Select OK again at the previous screen to verify the battery voltage exceeds 12 volts.

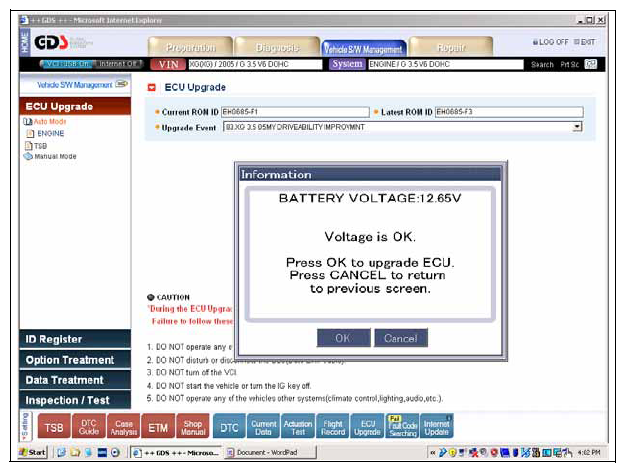

    Fig 10: GDS Screen Display - Battery Voltage
    G05145920Courtesy of HYUNDAI MOTOR CO.
  8. Reprogramming will begin and progress of the reprogramming will appear on the bar graph:

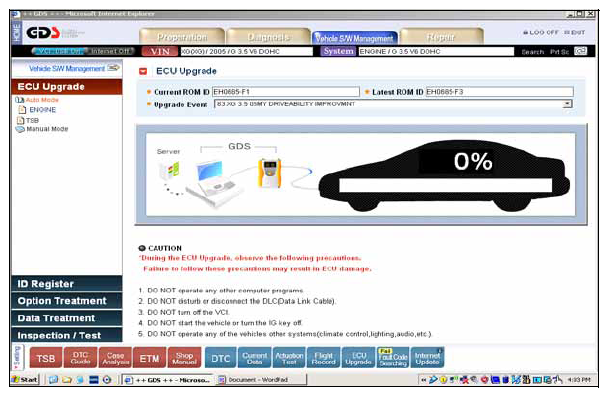

    Fig 11: GDS Screen Display - Reprogramming Bar Graph
    G05145921Courtesy of HYUNDAI MOTOR CO.
  9. When 100% is reached on the bar graph, reprogramming is not  finished. You must wait until the next screen which indicates reprogramming is complete:
    Fig 12: GDS Screen Display - 100% Reprogramming Bar Graph
    G05145922Courtesy of HYUNDAI MOTOR CO.

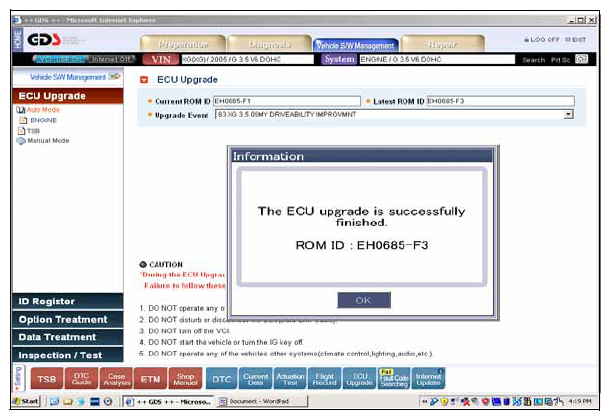

    Fig 13: GDS Screen Display - Reprogramming Complete
    G05145923Courtesy of HYUNDAI MOTOR CO.
  10. Disconnect the 3-connector adaptor from the VCI DLC connector and plug the VCI's DLC connector directly into the vehicle's DLC connector for using the normal diagnostics mode of the GDS.
  11. Check for any engine or transmission section diagnostic trouble codes (DTCs) and erase any trouble codes present.
  12. Turn the vehicle ignition switch OFF for about 20 seconds and then start the engine to confirm proper operation of the vehicle.

MANUAL REPROGRAMMING PROCEDURE

CAUTION:
  • Manual reprogramming must be performed only when automatic reprogramming fails.
  • If automatic reprogramming fails, turn the ignition switch OFF for about 20 seconds, place it back in the ON position and then perform manual reprogramming.
PASSWORD REFERENCE

MENU PASSWORD
39106-39250 9250
  1. Within the ECU Upgrade  screen, select Manual Mode  followed by ENGINE  in the left column, then select Upgrade Event #83,  and referring to the above table select the ECU part number 39106-39250,  and then select OK:

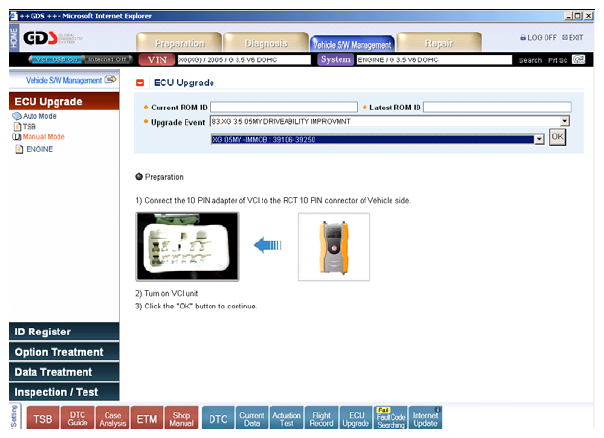

    Fig 14: GDS Screen Display - ECU Upgrade
    G05145924Courtesy of HYUNDAI MOTOR CO.
  2. Enter Password 9250  and select OK:

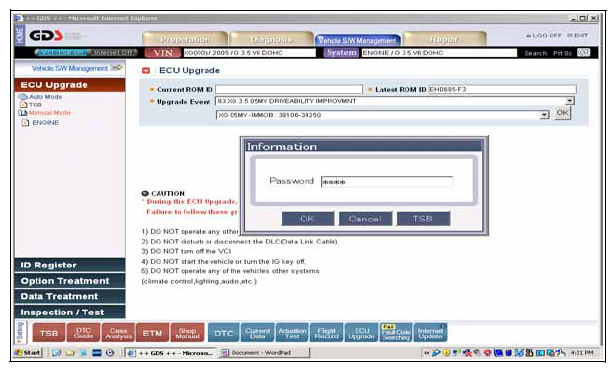

    Fig 15: GDS Screen Display - Password 9250
    G05145925Courtesy of HYUNDAI MOTOR CO.
  3. The battery voltage must be above 12 volts for reliable reprogram results. If the result is good, select OK;  otherwise select cancel and run the engine at idle for 10 minutes to recharge battery and retry.

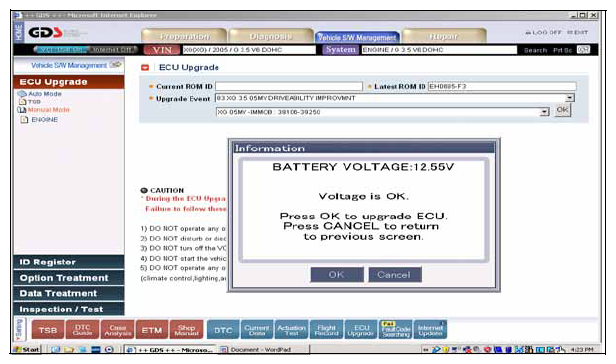

    Fig 16: GDS Screen Display - Battery Voltage
    G05145926Courtesy of HYUNDAI MOTOR CO.
  4. Reprogramming will occur until 100% is indicated in the bar graph. Wait for the follow-up final screen to indicate actual completion:

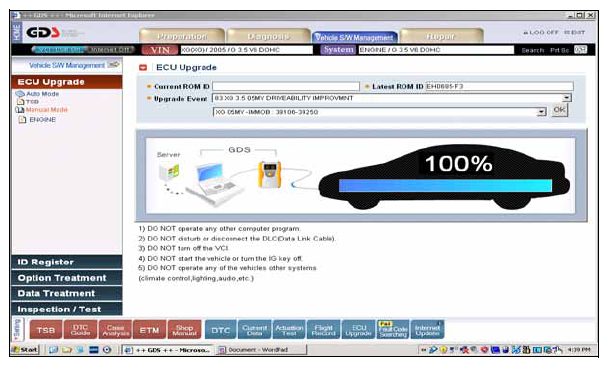

    Fig 17: GDS Screen Display - 100% Reprogramming Bar Graph
    G05145927Courtesy of HYUNDAI MOTOR CO.

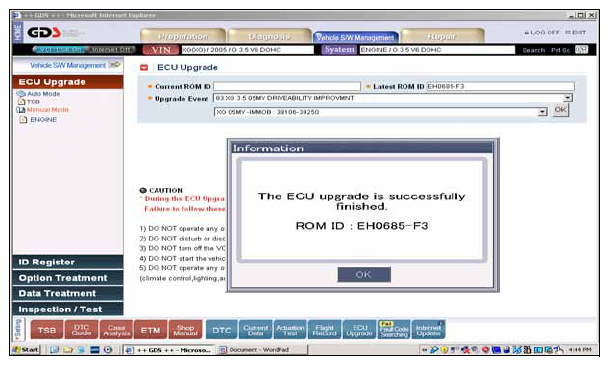

    Fig 18: GDS Screen Display - Actual Completion
    G05145928Courtesy of HYUNDAI MOTOR CO.
  5. Disconnect the 3-connector adaptor from the VCI DLC connector and plug the VCI's DLC connector directly into the vehicle's DLC connector for using the normal diagnostics mode of the GDS.
  6. Check for any engine or transmission section diagnostic trouble codes (DTCs) and erase any trouble codes present.
  7. Turn the vehicle ignition switch OFF for about 20 seconds and then start the engine to confirm proper operation of the vehicle.

WARRANTY INFORMATION

WARRANTY INFORMATION

MODEL OP CODE OP NAME OP TIME CASUAL P/N NATURE CAUSE
XG350 39110F55 PCM REPROGRAMMING 0.3 M/H 39106-39250 (1)N13 (2)C40
(1) Poor accceleration
(2) Improper adjustment
