Component Inspection: Notes

  1. Ignition "OFF".
  2. Disconnect ECTS connector.
  3. Measure resistance between terminals 1 and 3 of the sensor connector (Component side).

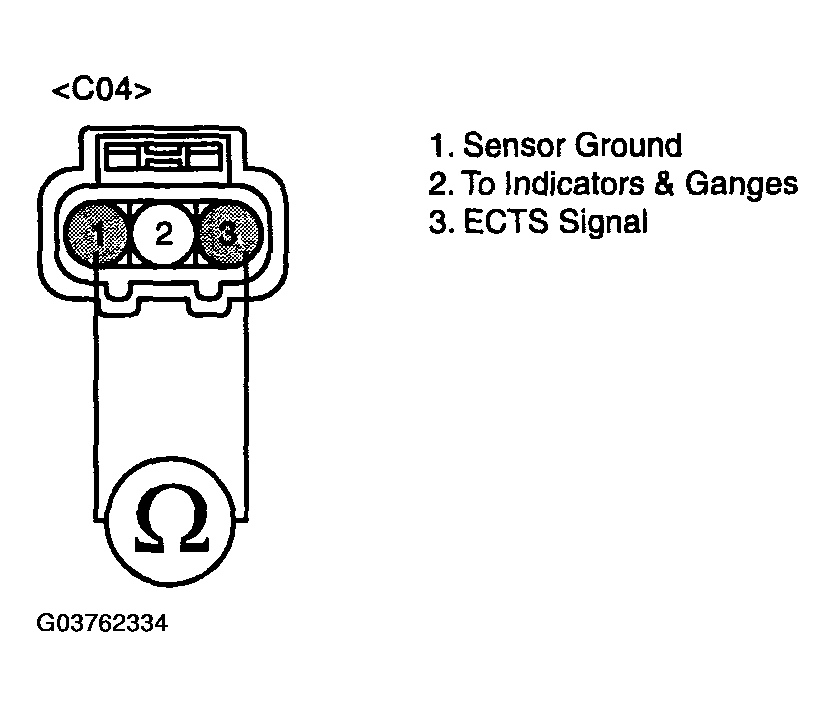

    4. Fig 1: Measuring Resistance Between Terminals 1 And 3 Of Sensor Connector (Component Side)
    G03762334Courtesy of HYUNDAI MOTOR CO.
