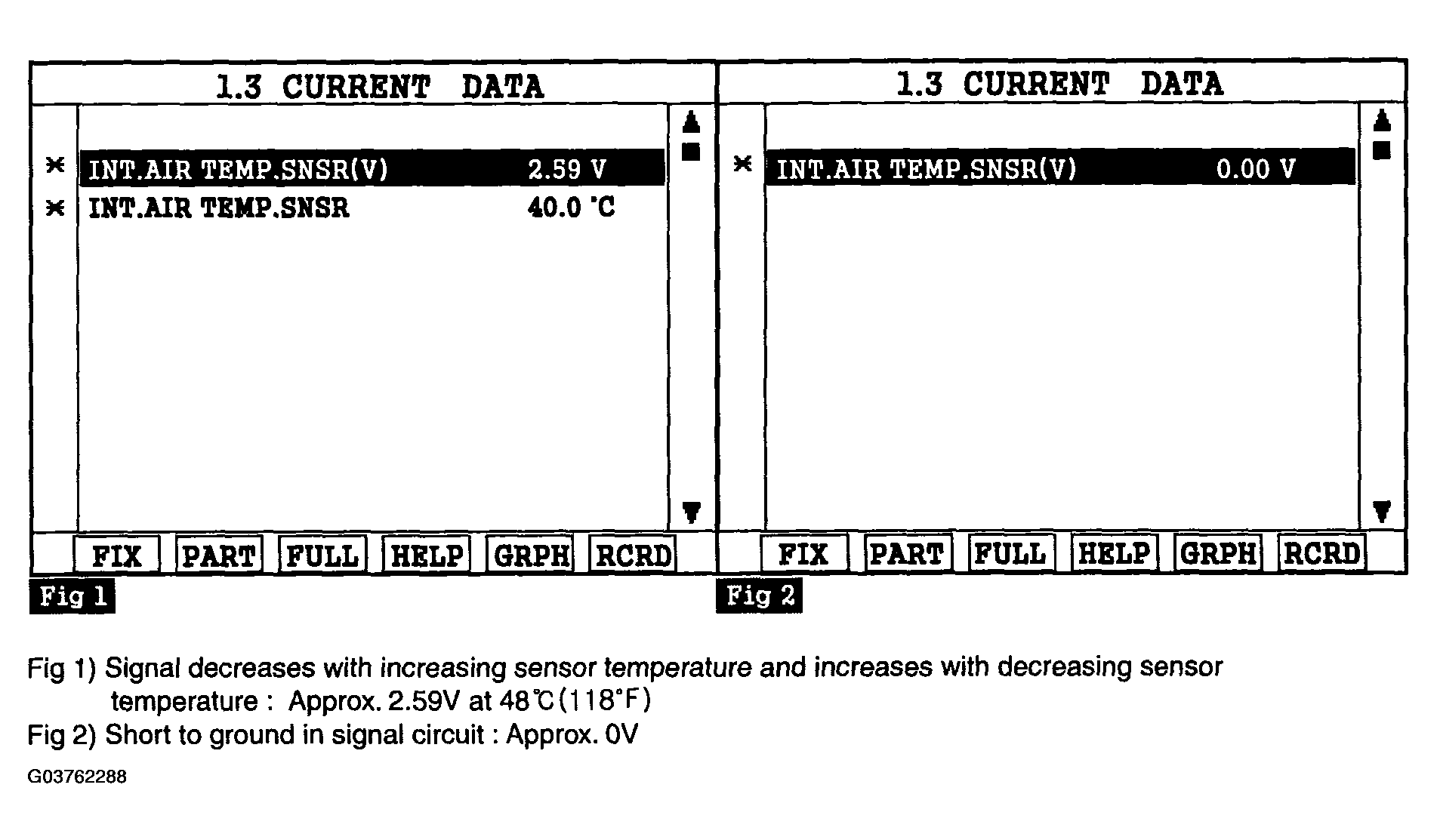

Home >> Hyundai >> 2005 >> Tucson LX, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Control System Diagnosis (2.7L) (1 Of 2) >> DTC Troubleshooting Procedures >> DTC P0112: Intake Air Temperature Sensor1 Circuit Low Input >> Signal Waveform
