Evaporative And ORVR Emission Control System: Components

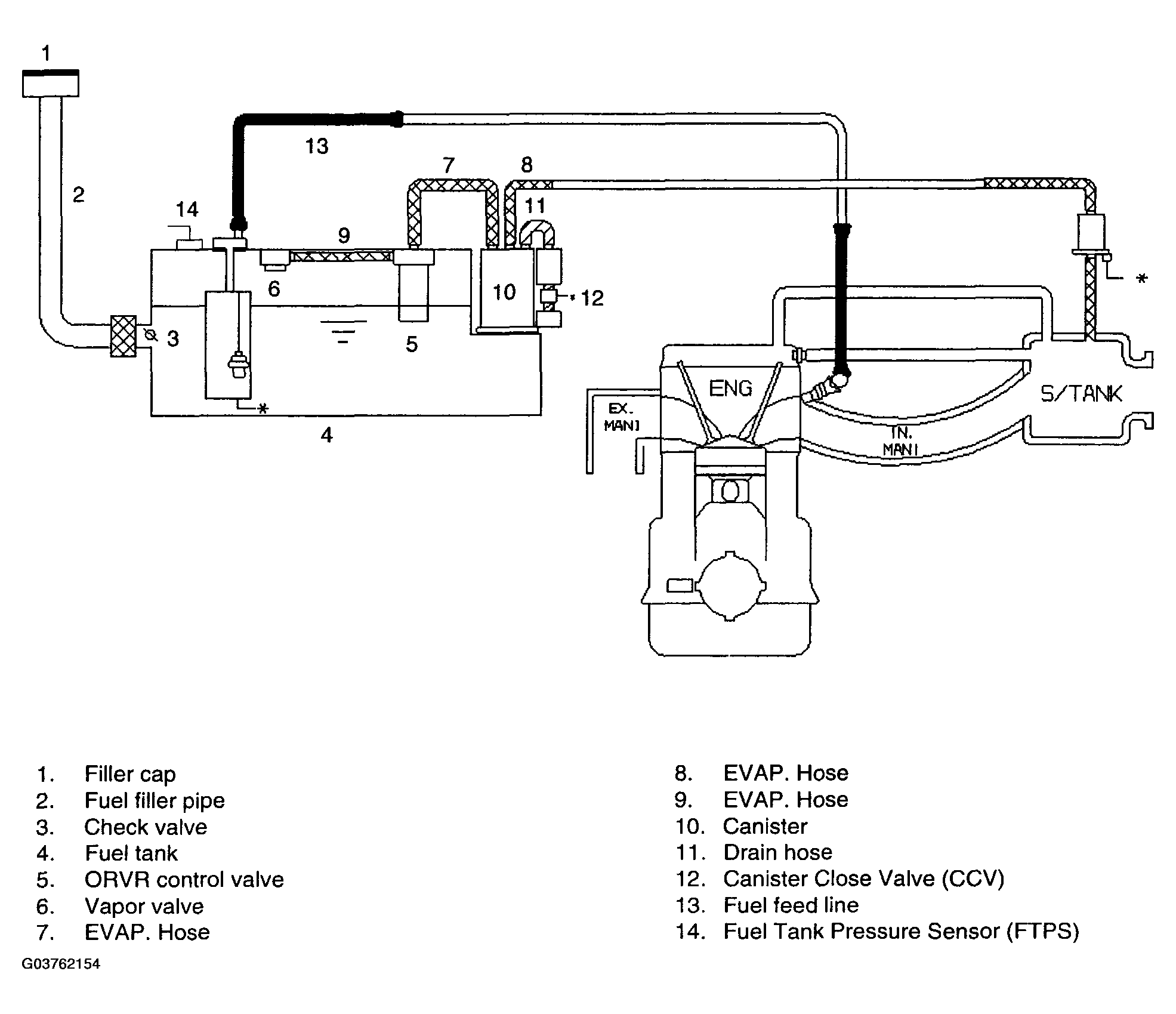

Fig 1: Identifying Evaporative And ORVR Emission Control System Components

G03762154

Courtesy of HYUNDAI MOTOR CO.
