Diagnosis Flow

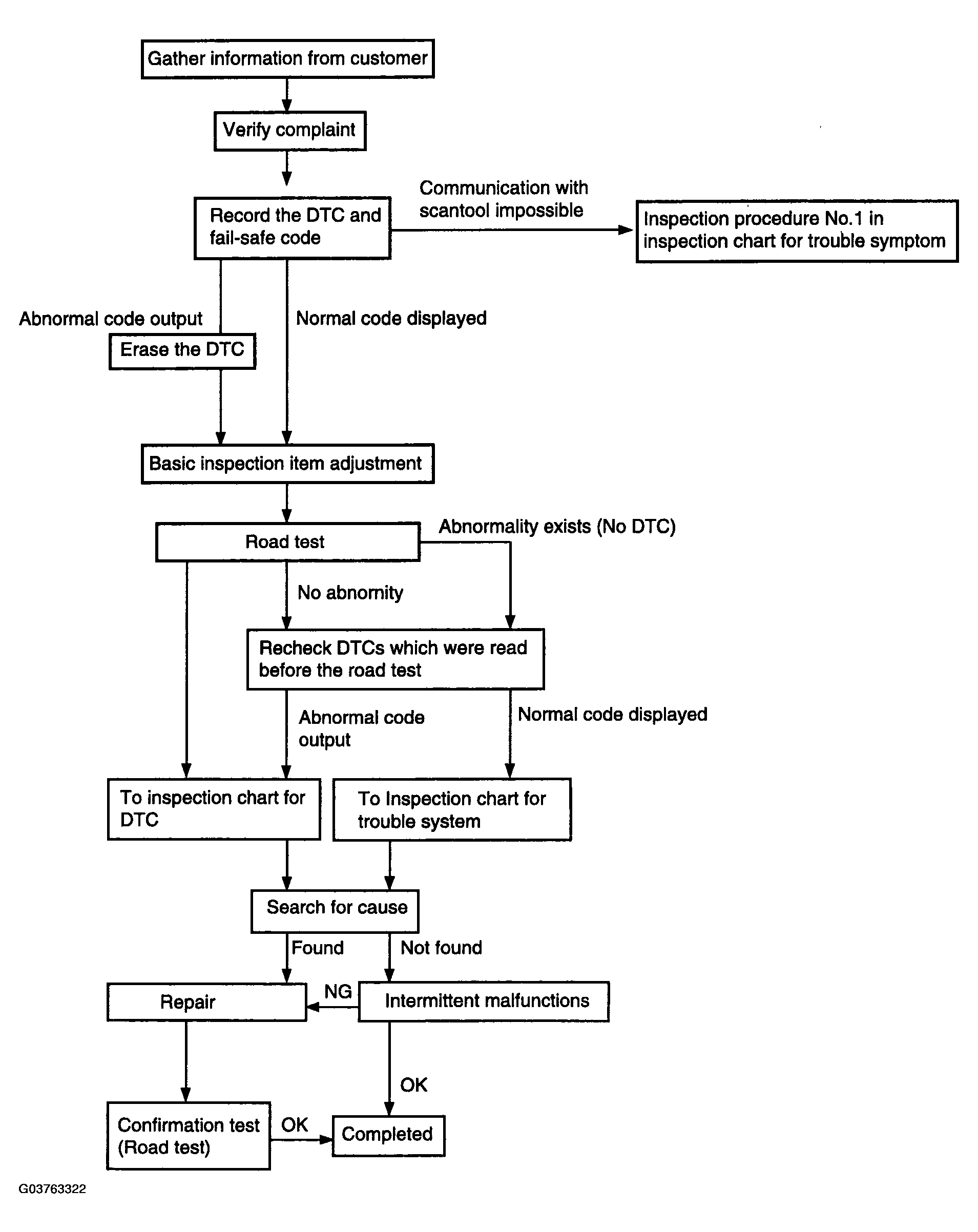

Fig 1: Troubleshooting Diagnosis Flow Chart

G03763322

Courtesy of HYUNDAI MOTOR CO.
