DTC C2380 Abs/TCS/Esp Valve Error

DTC C2380 DESCRIPTION & PROBABLE CAUSES

DTC No. C2380 ABS/TCS/ESP valve error Probable cause
The HECU monitors the solenoid valve operating circuit. If there is no continuity of the solenoid valve, when the HECU switches the solenoid valve ON, it is a cause an open or short in the circuit of the solenoid coil or harness.
  • Faulty HECU

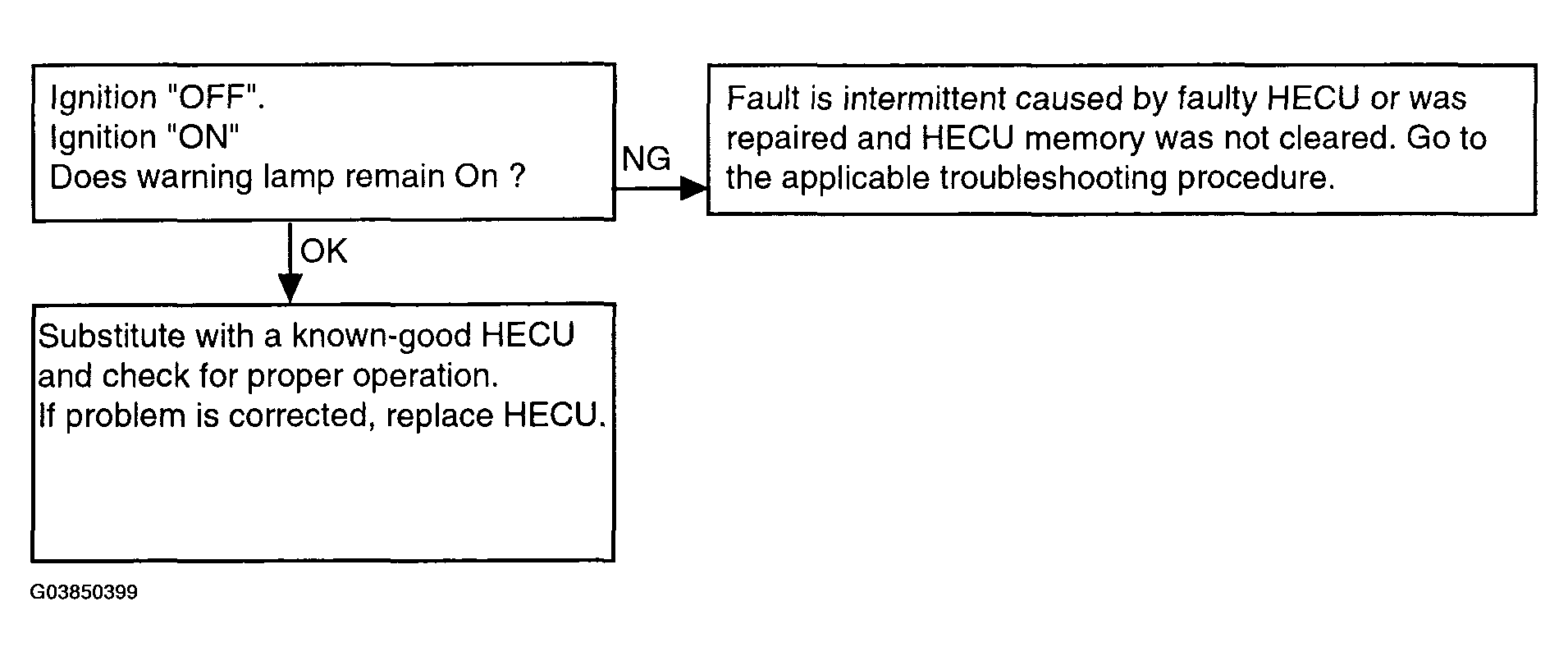

Fig 1: ABS/TCS/ESP Valve Error Flow Chart
G03850399Courtesy of HYUNDAI MOTOR CO.
