DTC C1503 Esp Switch Error

DTC C1503 DESCRIPTION & PROBABLE CAUSES

DTC No. C1503 ESP switch error Probable cause
Trouble code is set when the condition that the level of ESP switch is high is continued for 60sec. When the ESP switch failure is set there is no signal in the warning lamp and HECU inhibit the ESP control and allow the ABS/EBD control.
  • Open or short ESP switch

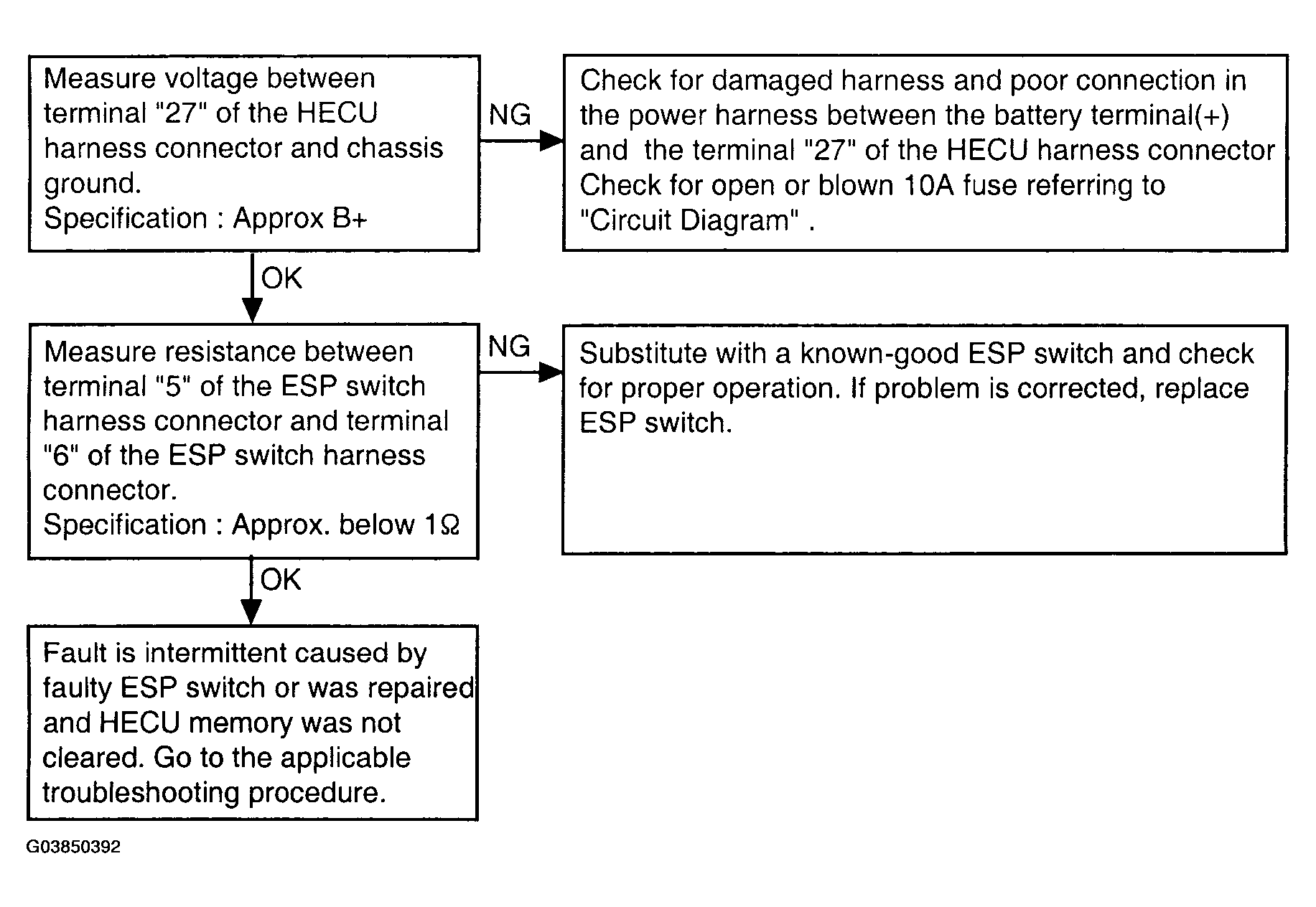

Fig 1: Open Or Short ESP Switch Flow Chart
G03850392Courtesy of HYUNDAI MOTOR CO.
