Outside View

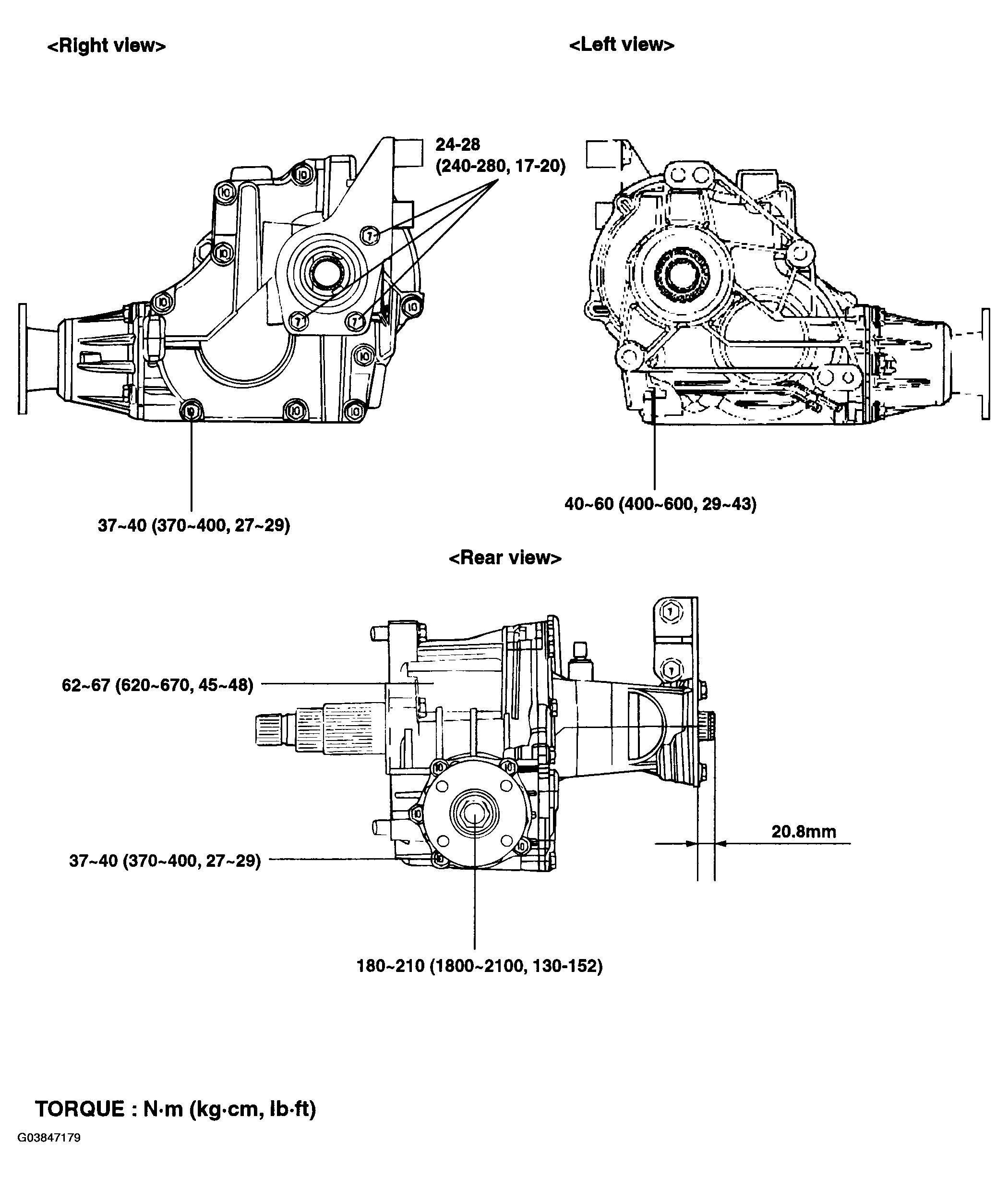

Fig 1: Transfer Case With Torque Specifications

G03847179

Courtesy of HYUNDAI MOTOR CO.
