Harness Inspection Procedures (MAF)

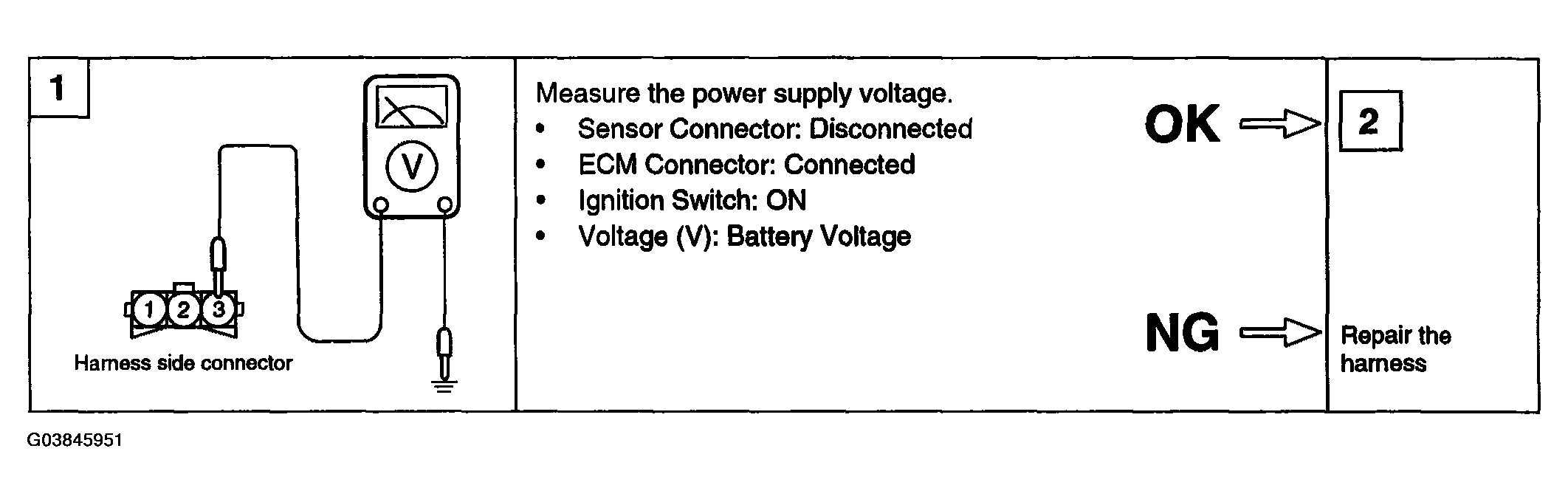

Fig 1: Checking Harness (1 Of 3)
G03845951Courtesy of HYUNDAI MOTOR CO.

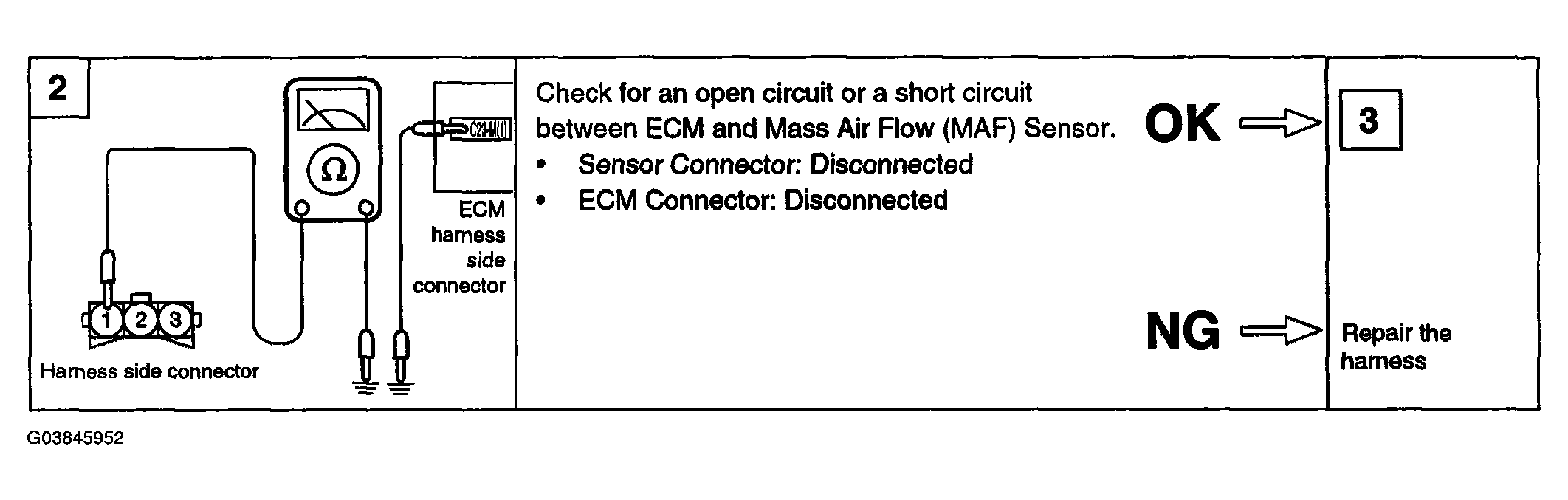

Fig 2: Checking Harness (2 Of 3)
G03845952Courtesy of HYUNDAI MOTOR CO.

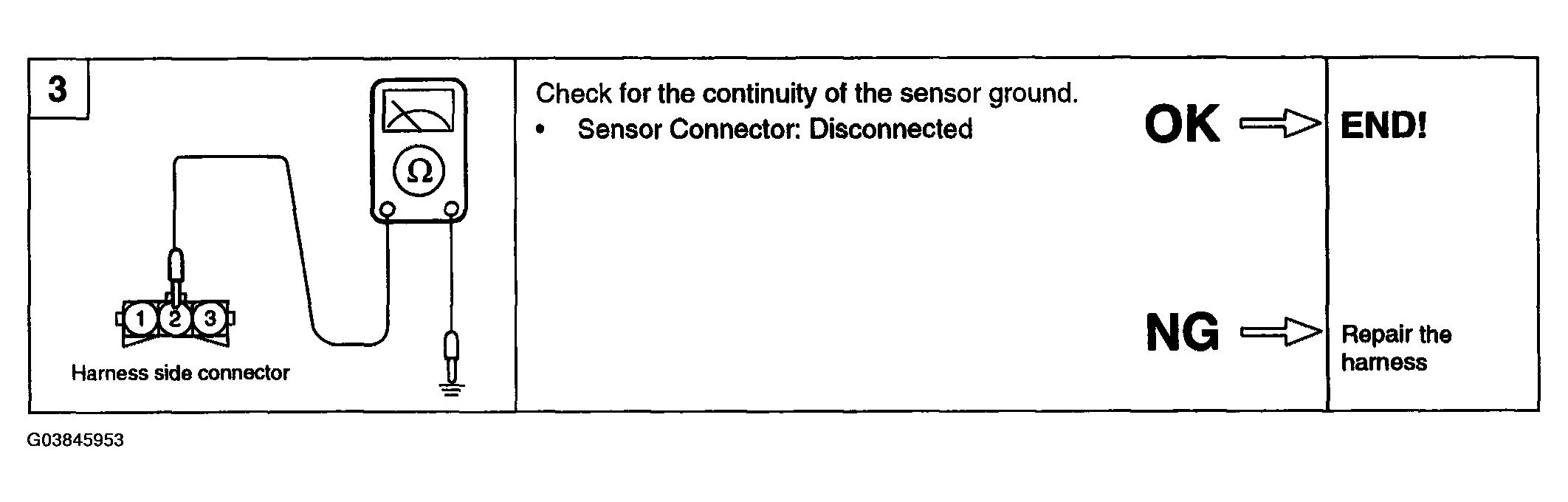

Fig 3: Checking Harness (3 Of 3)
G03845953Courtesy of HYUNDAI MOTOR CO.
