Canister Close Valve (CCV): Notes

The canister close valve is an ON/OFF type which controls the inner pressure of fuel tank caused by fuel evaporation.

It is used to close the evaporative system and to observe tank pressure respectively with the fuel tank pressure sensor.

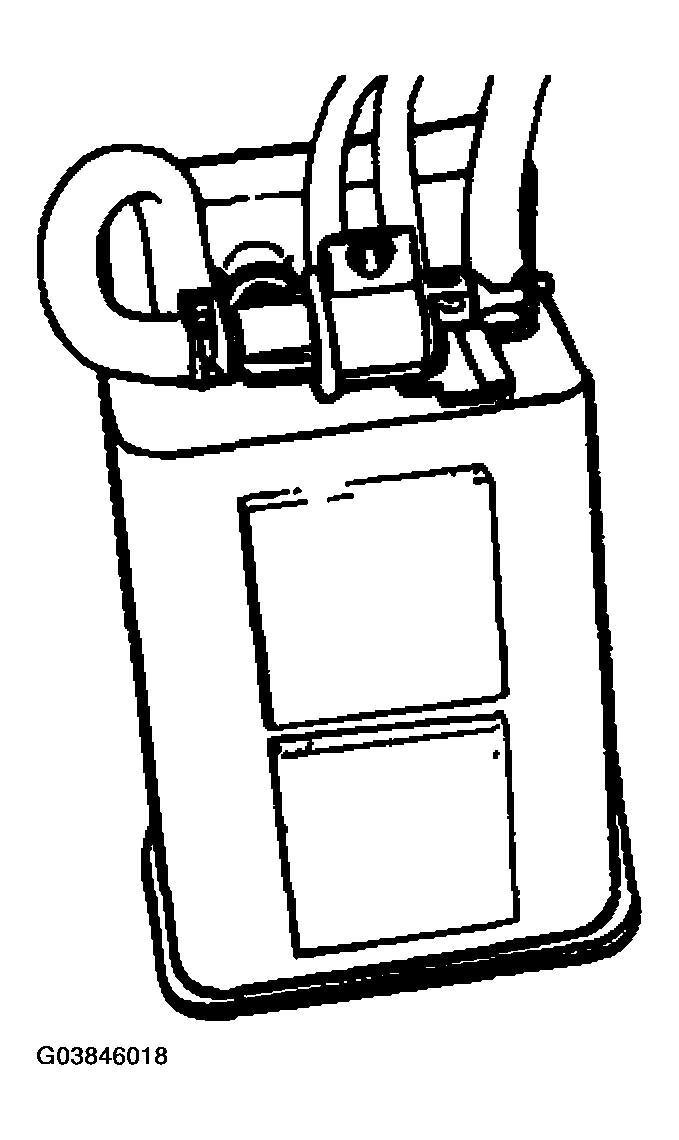

Fig 1: Identifying Canister Close Valve

Courtesy of HYUNDAI MOTOR CO.

[CIRCUIT DIAGRAM (CCV)]

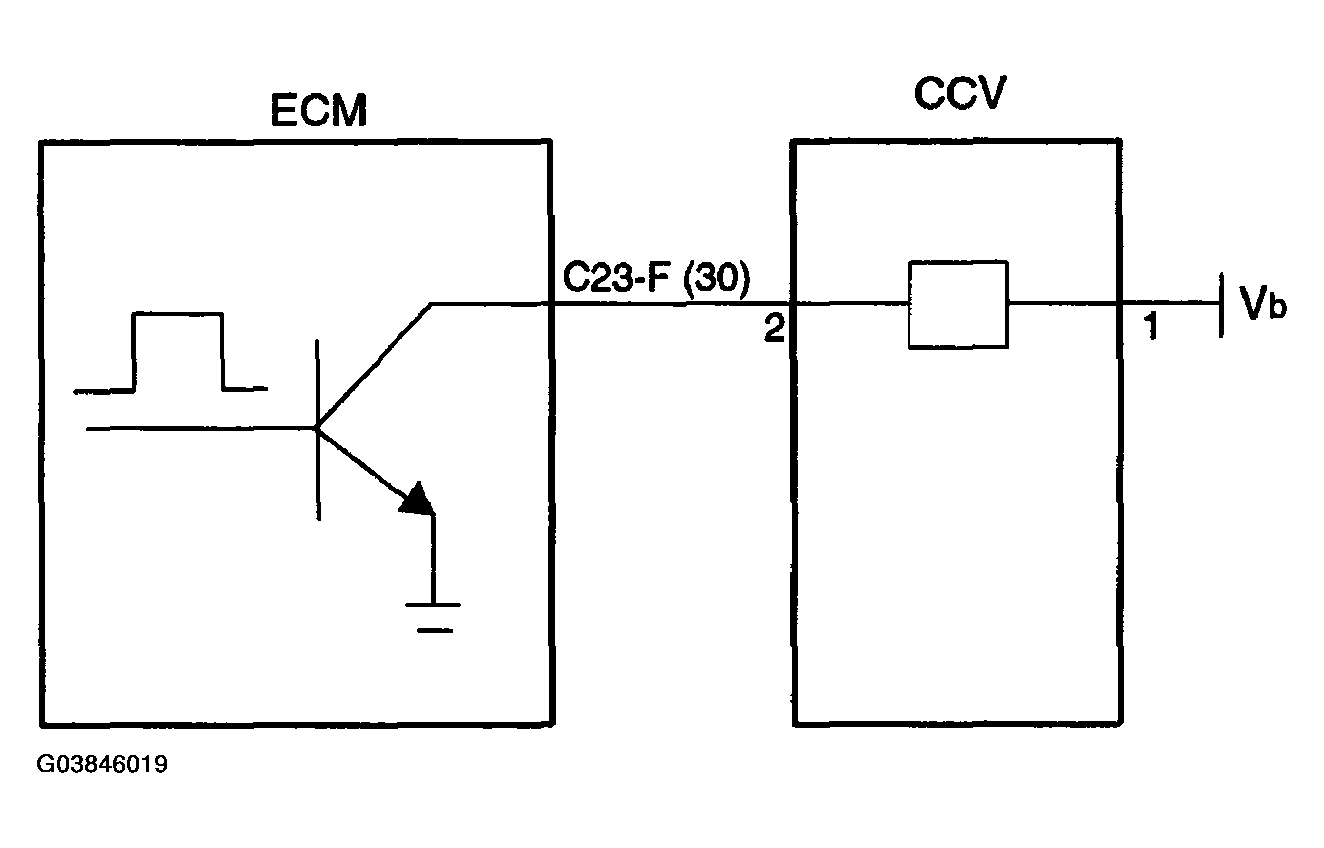

Fig 2: Canister Close Valve Circuit Diagram

Courtesy of HYUNDAI MOTOR CO.

[HARNESS CONNECTOR]

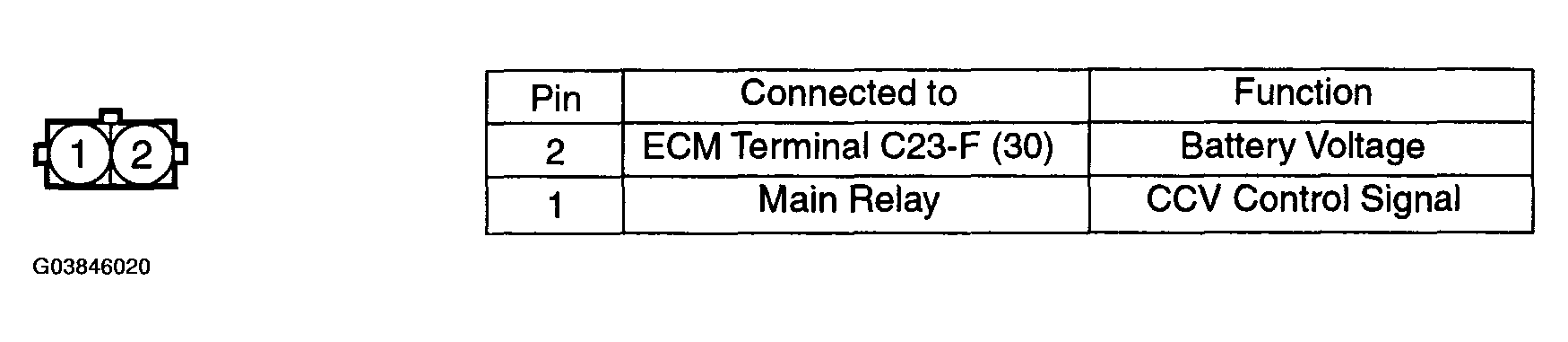

Fig 3: Identifying Canister Close Valve Harness Connector

Courtesy of HYUNDAI MOTOR CO.
