Troubleshooting Procedures (MAF)

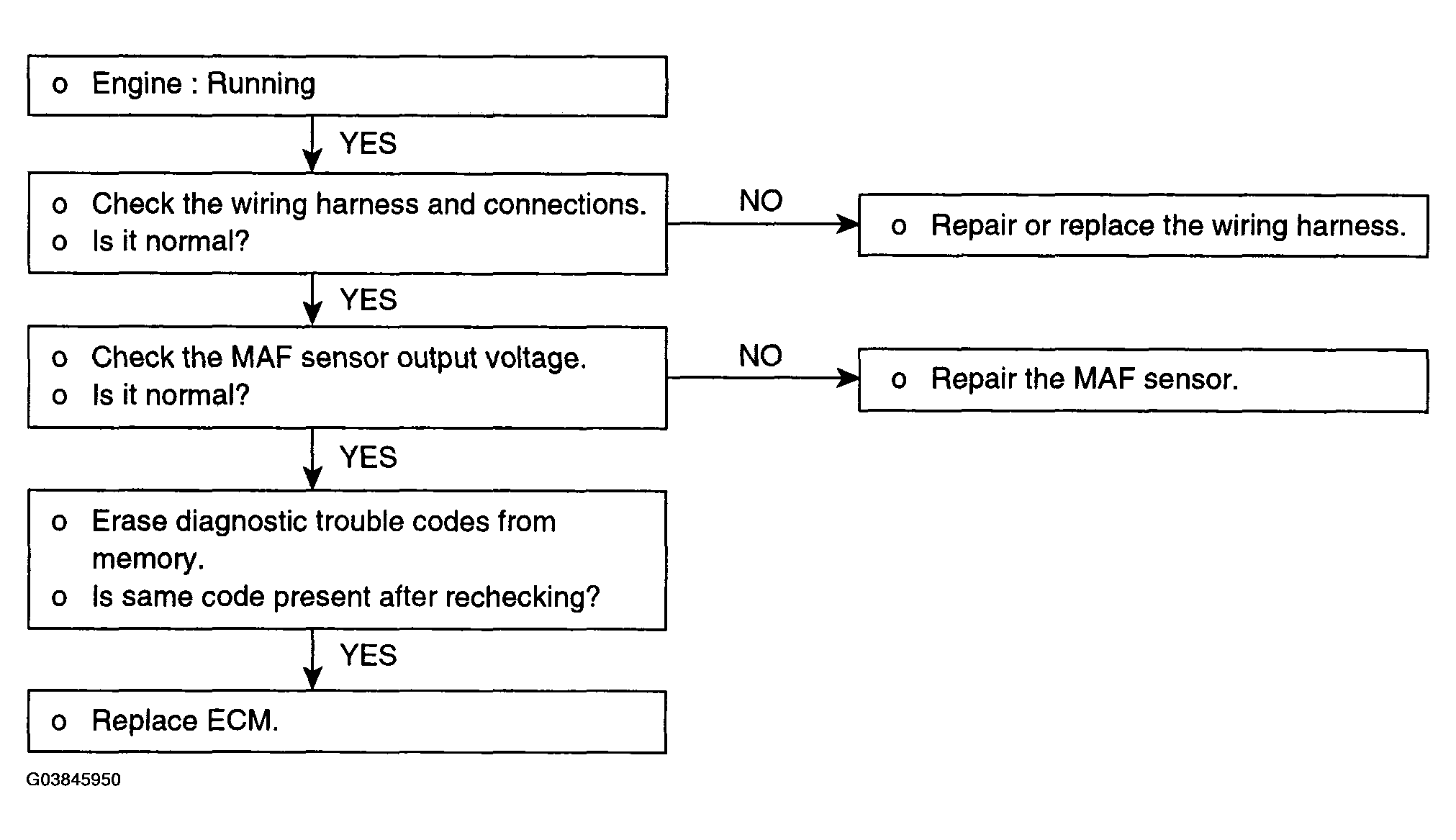

Fig 1: Troubleshooting Flow Chart
G03845950Courtesy of HYUNDAI MOTOR CO.
