Crankshaft Position (CKP) Sensor: Notes

The Crankshaft Position Sensor is a Hall-effect sensor that senses the Crank angle (piston position) of each cylinder and converts it into a pulse signal. Based on the input signal, the ECM computes the engine speed and controls the fuel injection timing and ignition timing.

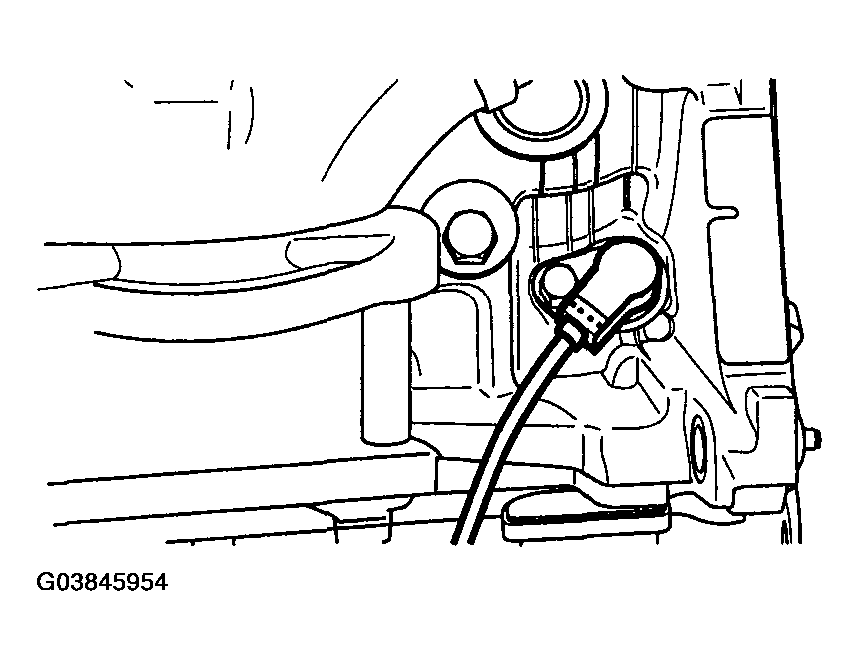

Fig 1: Locating Crankshaft Position Sensor

Courtesy of HYUNDAI MOTOR CO.

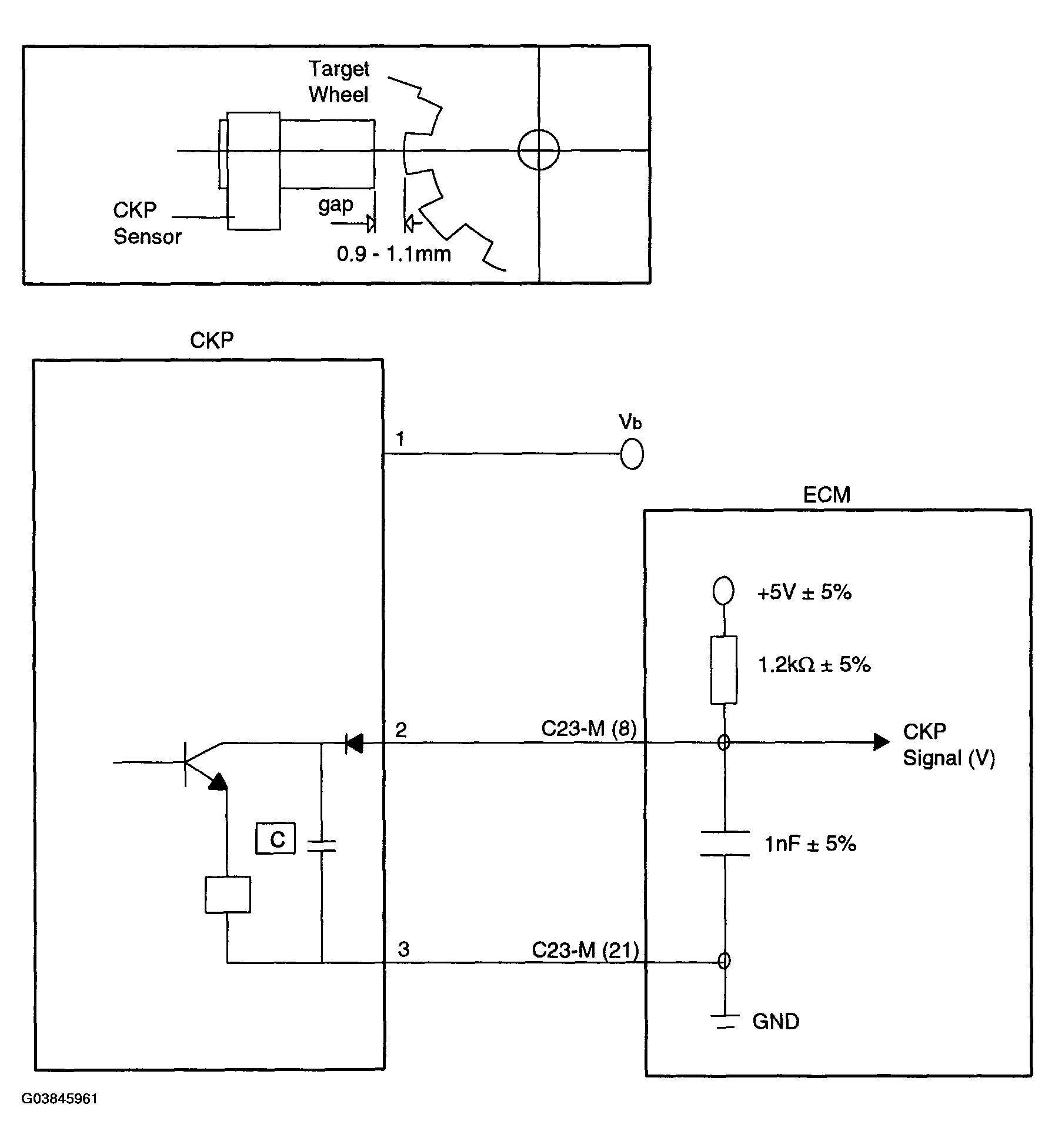

[CIRCUIT DIAGRAM (CKP)]

Fig 2: Crankshaft Position Sensor Circuit Diagram

Courtesy of HYUNDAI MOTOR CO.

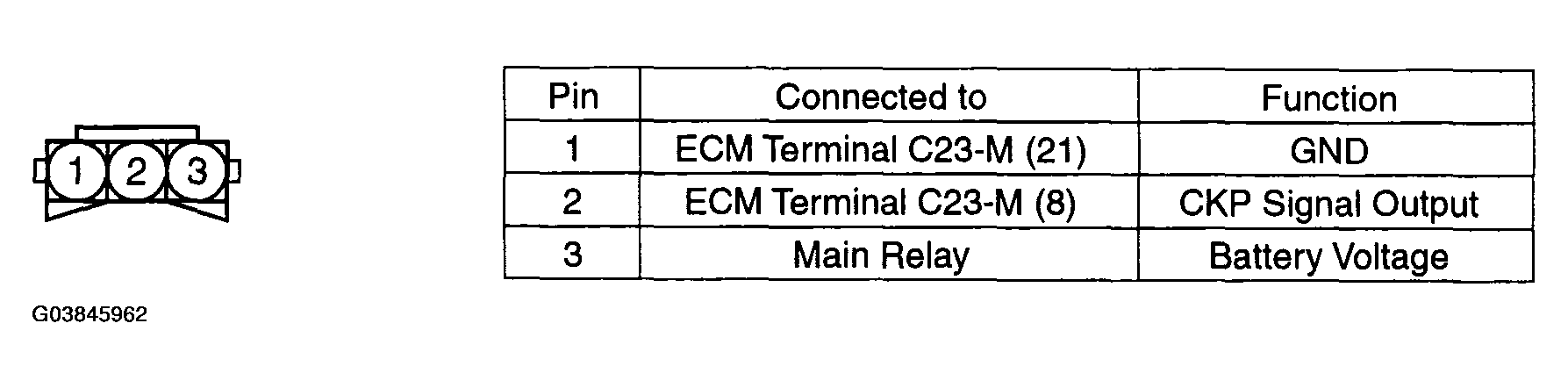

[HARNESS CONNECTOR]

Fig 3: Identifying Crankshaft Position Sensor Harness Connector

Courtesy of HYUNDAI MOTOR CO.

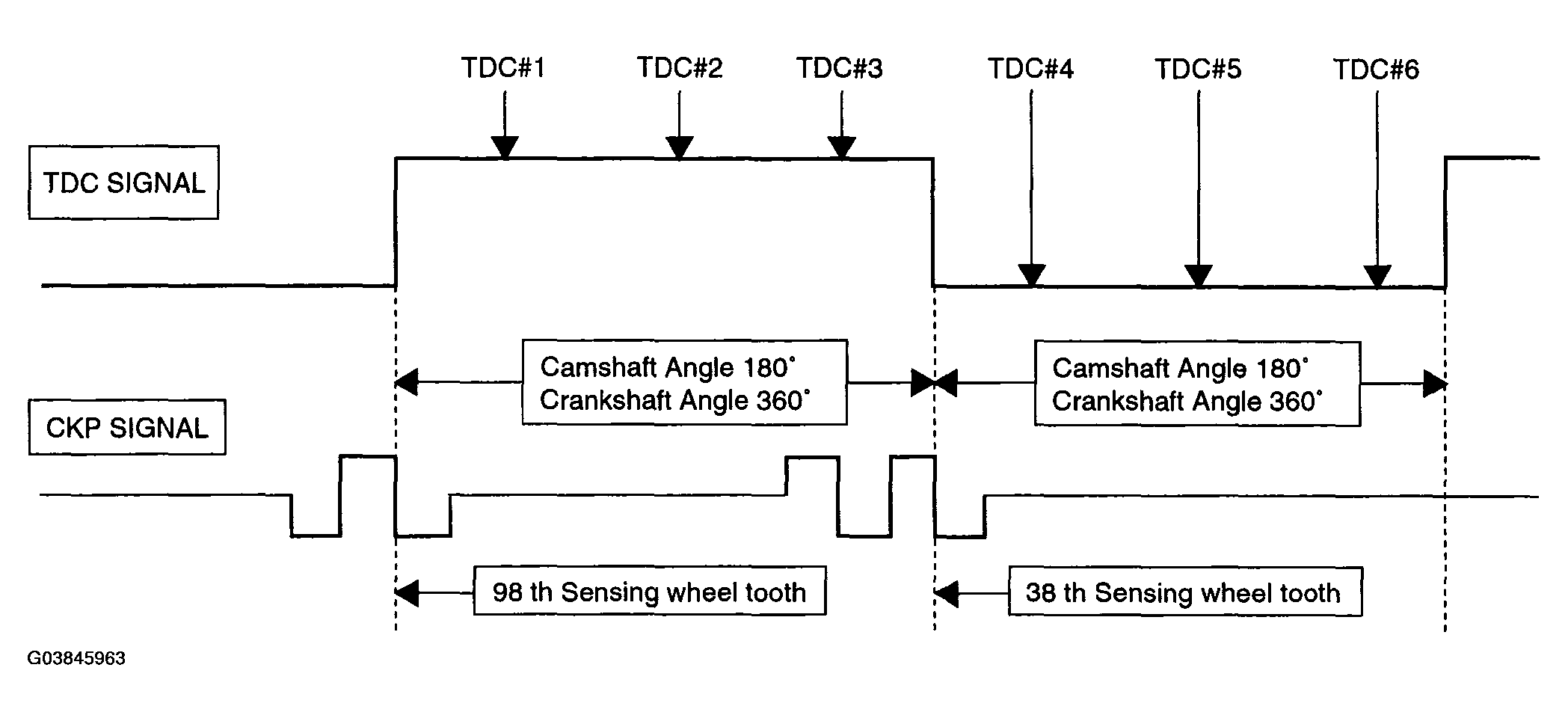

[OUTPUT FEATURE OF CKP]

Fig 4: Identifying CKP And TDC Signals

Courtesy of HYUNDAI MOTOR CO.
