Camshaft Position (TDC) Sensor: Notes

The TDC Sensor is a Hall-effect sensor that detects the camshaft position on the compression stroke of the No. 1 cylinder, converts it into a pulse signal, and inputs it to the ECM. The ECM then computes the fuel injection sequence, etc. based on the input signal.

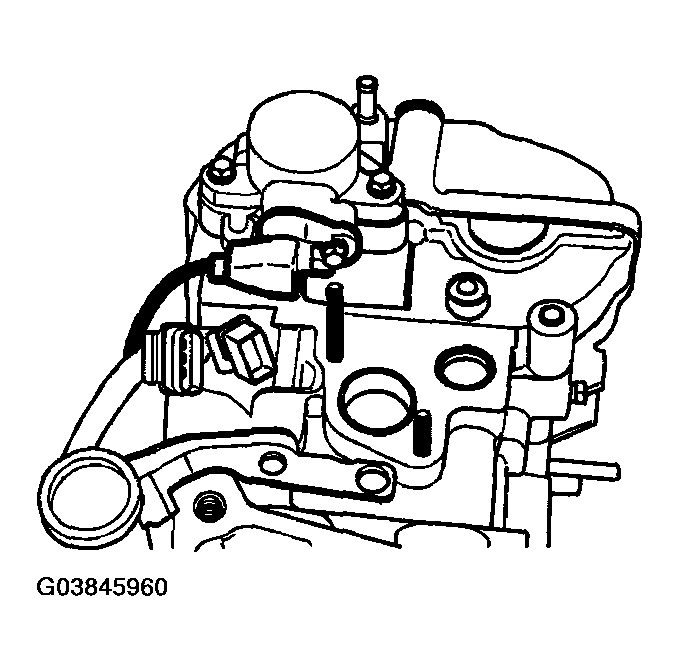

Fig 1: Locating Camshaft Position Sensor

Courtesy of HYUNDAI MOTOR CO.

[CIRCUIT DIAGRAM AND OUTPUT FEATURE (TDC)]

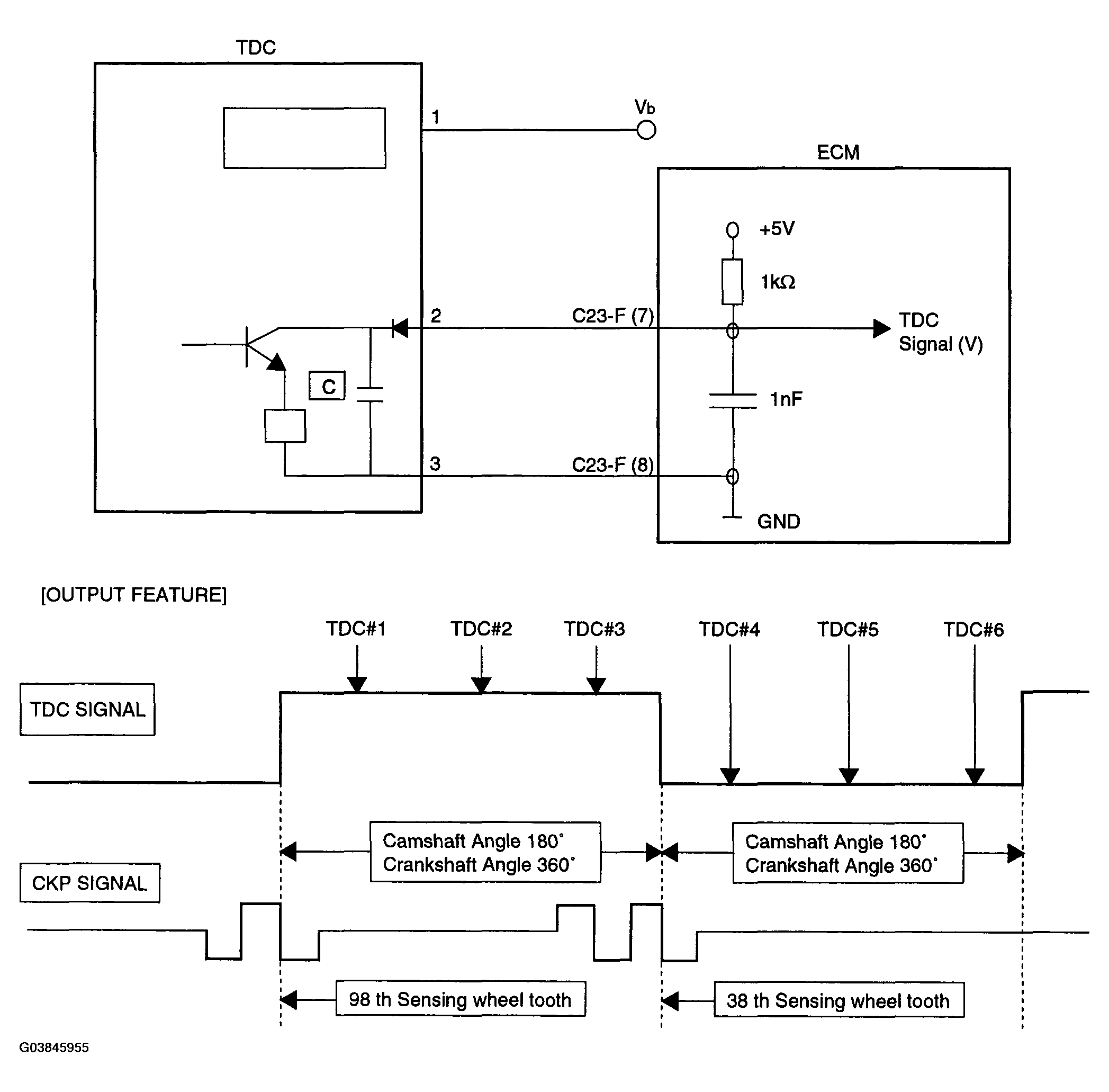

Fig 2: Camshaft Position Sensor Circuit Diagram And Output Feature

Courtesy of HYUNDAI MOTOR CO.

[HARNESS CONNECTOR]

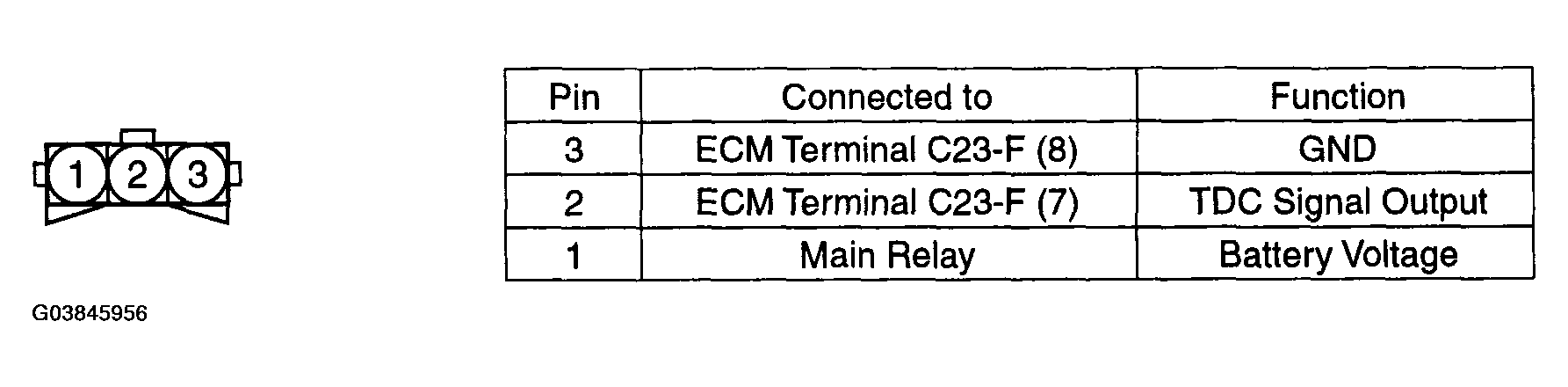

Fig 3: Identifying Camshaft Position Sensor Harness Connector

Courtesy of HYUNDAI MOTOR CO.
