Output Shaft Speed Sensor Replacement: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Removal of the battery and air cleaner, (see the TRANSAXLE RANGE SWITCH REPLACEMENT )
  2. Remove the output shaft speed sensor(A).

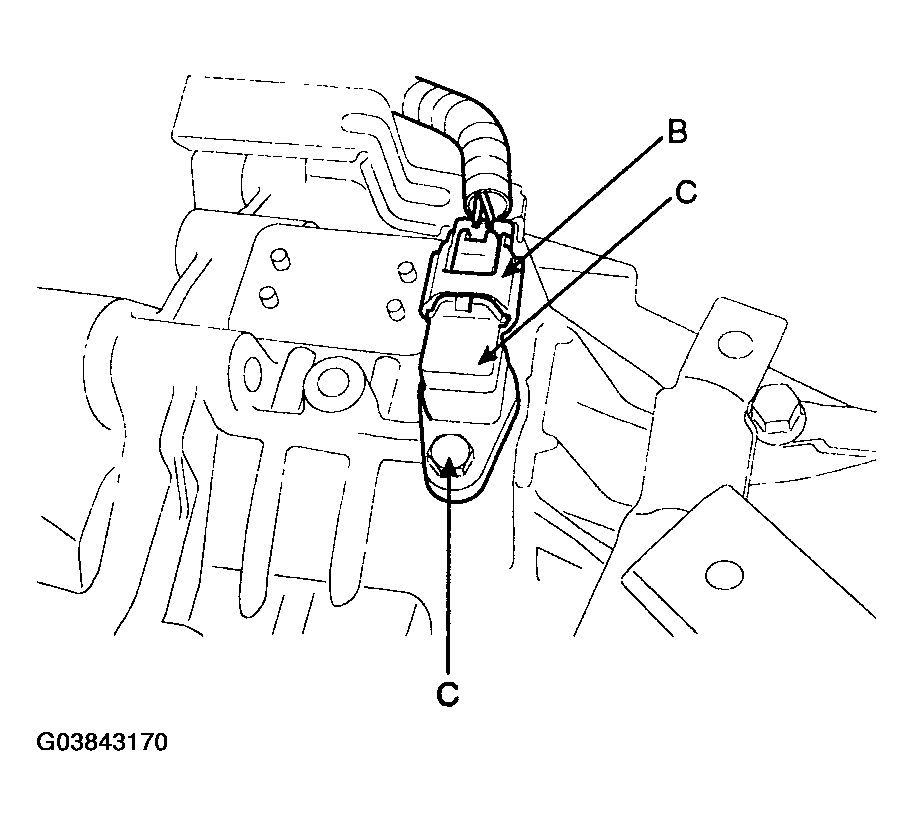

    Fig 1: Removing Bolt
    G03843170Courtesy of HYUNDAI MOTOR CO.
    1. Disconnect the output shaft speed sensor connector(B).
    2. Remove the bolt(C).
    3. Inspect the output shaft speed sensor bore.
