Automatic Transaxle System: Components

WARNING: This page is about a different variant/trim than selected.

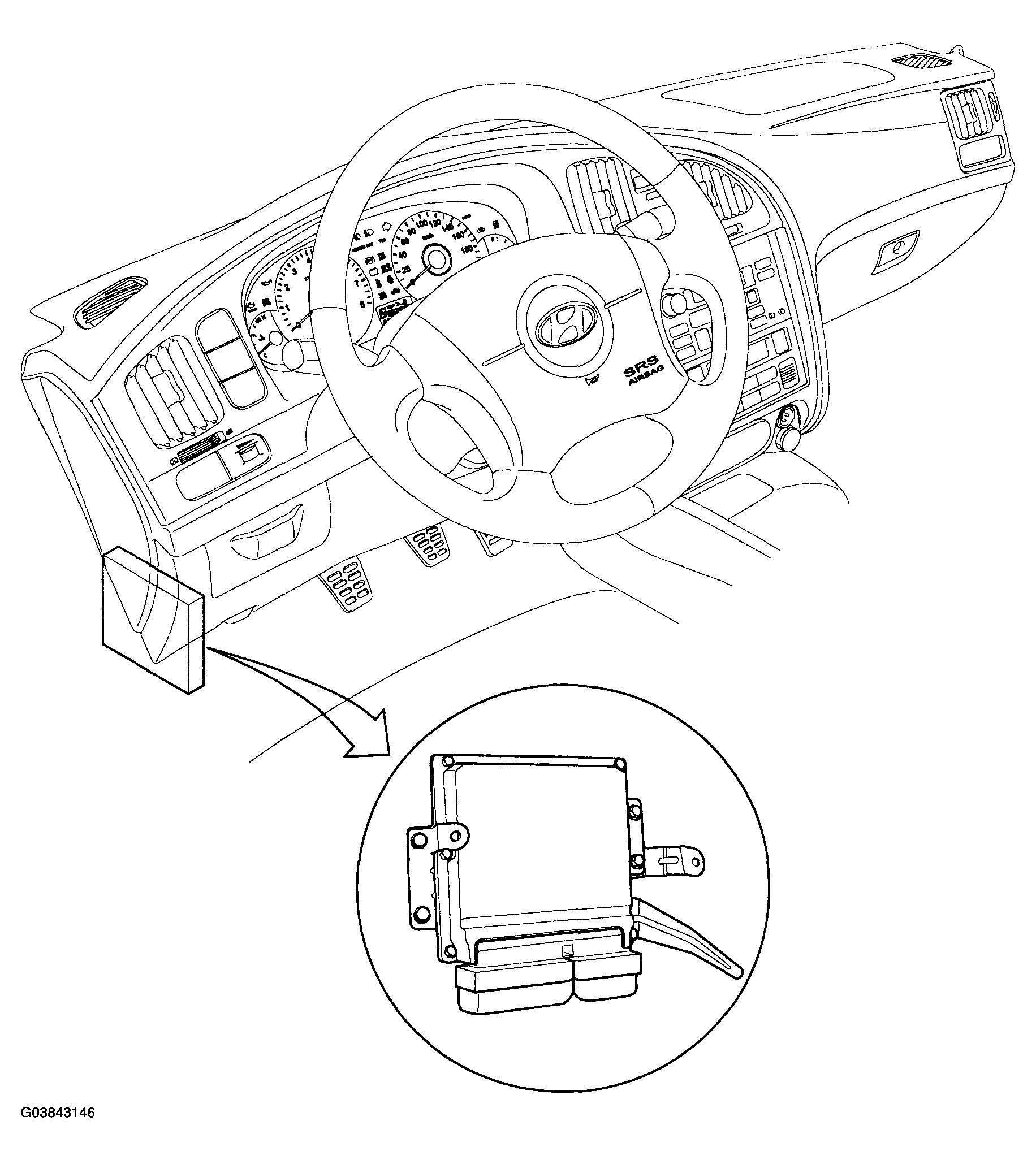

Fig 1: Identifying Components
G03843146Courtesy of HYUNDAI MOTOR CO.

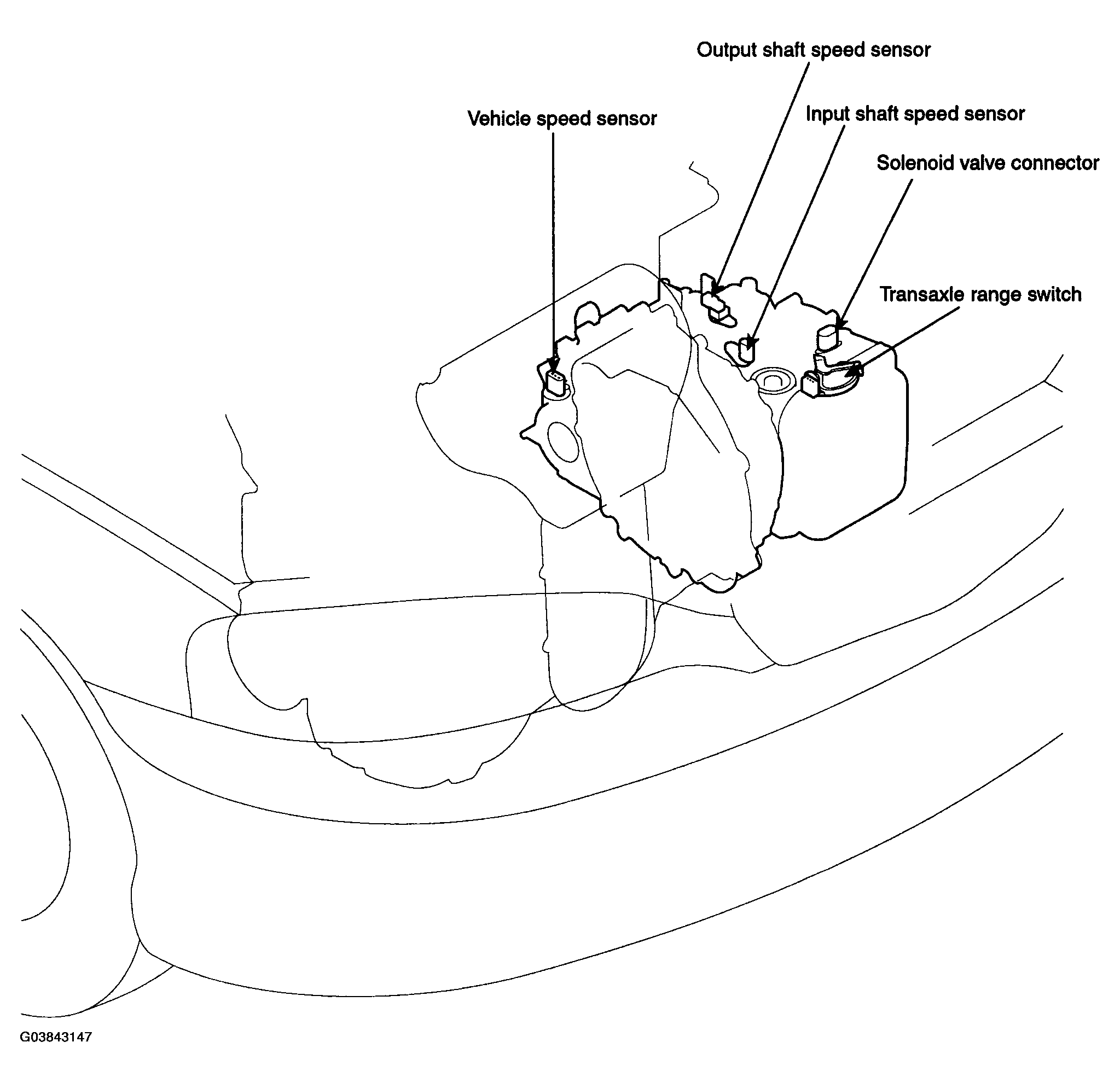

Fig 2: Identifying Transaxle Range Switch
G03843147Courtesy of HYUNDAI MOTOR CO.

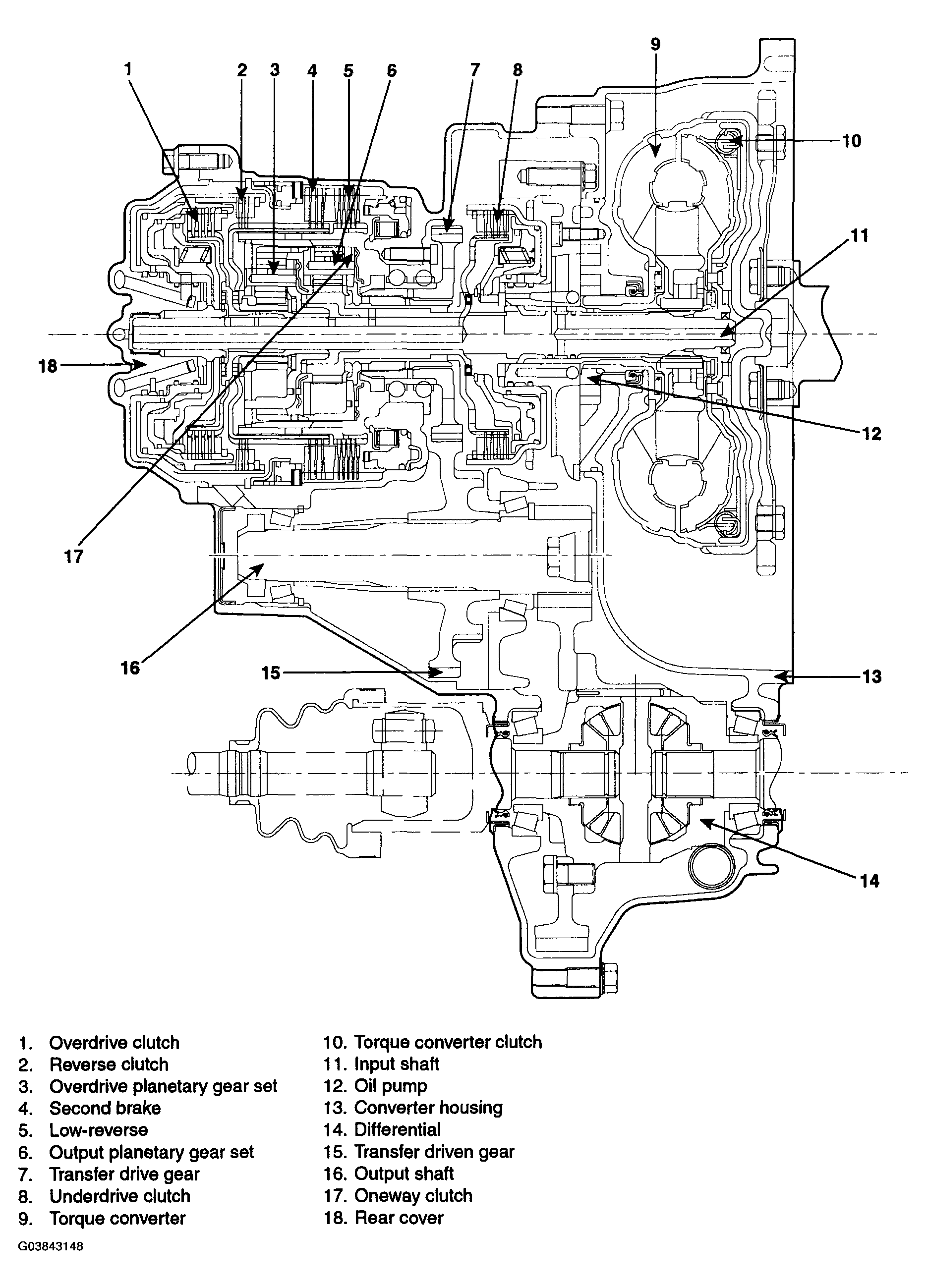

Fig 3: Identifying Overdrive Clutch And Torque Convertor
G03843148Courtesy of HYUNDAI MOTOR CO.
