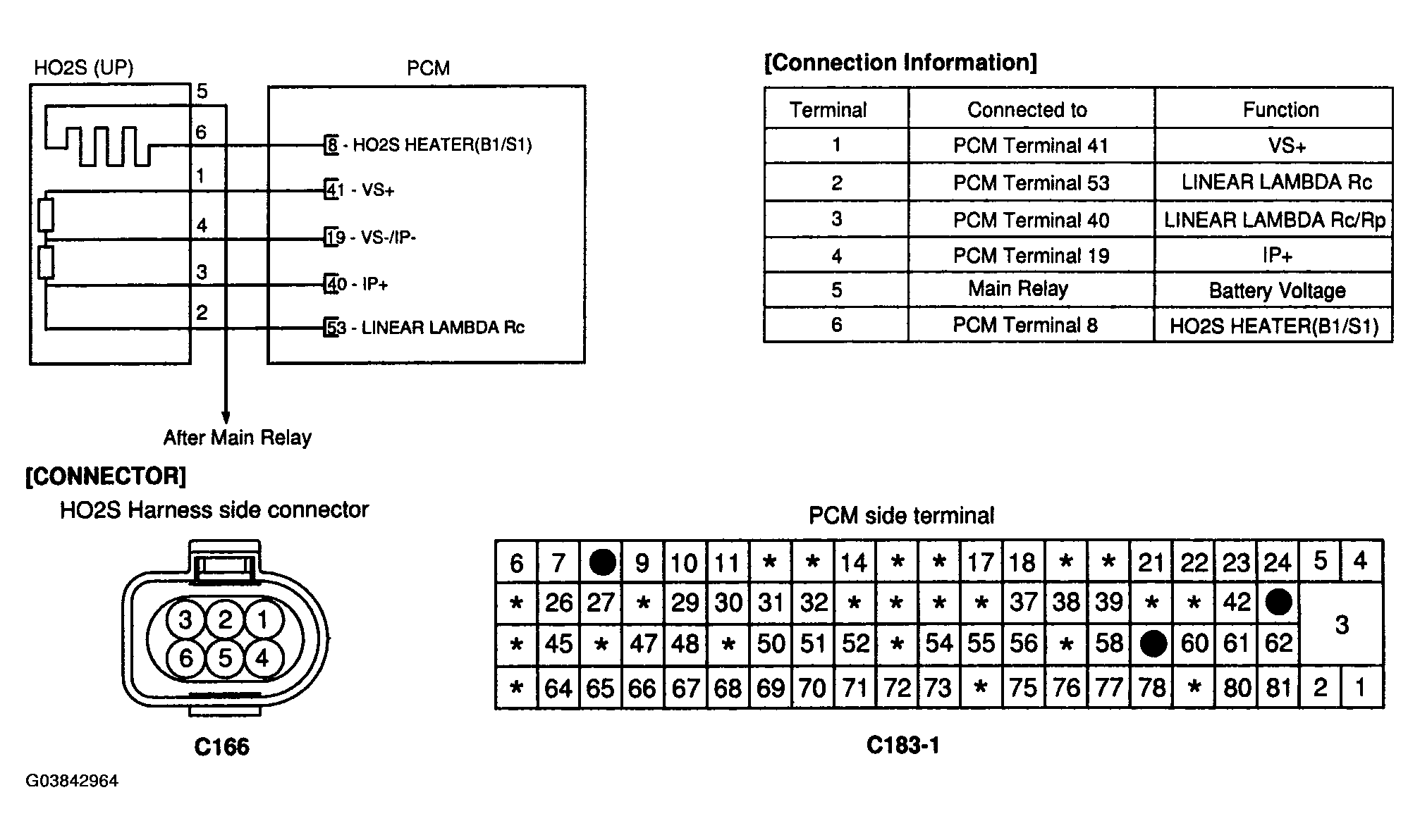

Home >> Hyundai >> 2005 >> Elantra GLS, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System >> DTC Troubleshooting Procedures >> DTC P2231: Ho2S Signal Circuit Shorted To Heater Circuit (Bank1, Sensor1) >> Schematic Diagram
