Control Circuit Inspection

Check for short to ground in control circuit.
1. Ignition "OFF".
2. Disconnect PCM connector.
3. Measure resistance between terminals 2 of the PCSV harness connector and 26 of the PCM harness connector.
  Specification: Approx. 0Ω

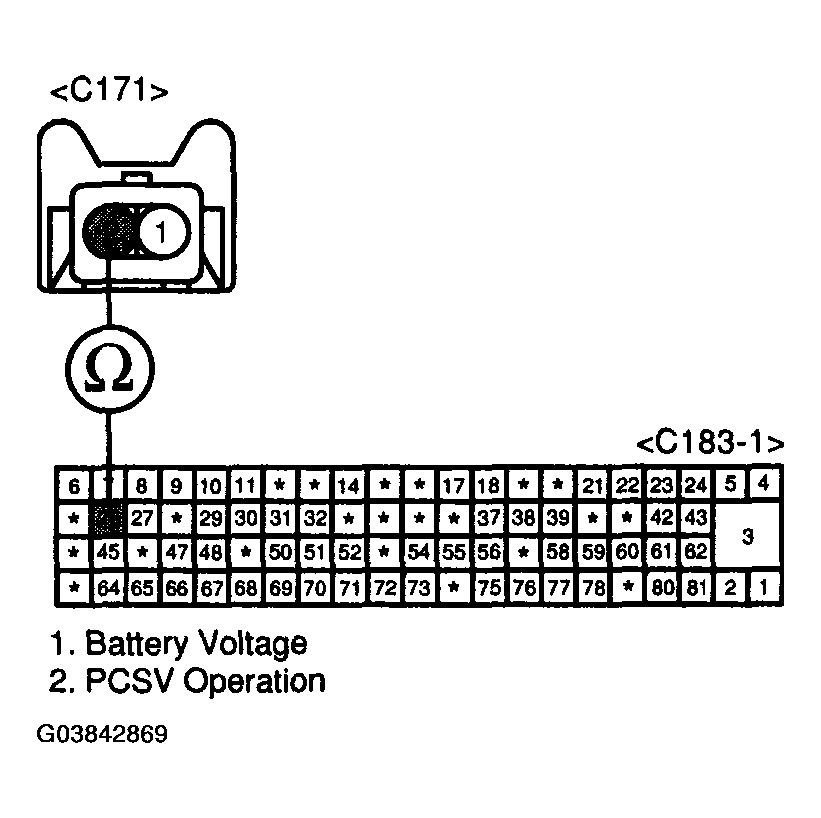

  Fig 1: Measuring Resistance Between Terminals 2 Of PCSV Harness Connector And 26 Of PCM Harness Connector
  Courtesy of HYUNDAI MOTOR CO.
4. Is resistance within the specification?
  YES
  - Go to next step as below.
  NO
  - Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check for short to battery in control circuit.
1. Ignition "ON" & Engine "OFF".
2. Measure voltage between terminal 2 of the PCSV harness connector and chassis ground.
  Specification: Approx. 0V

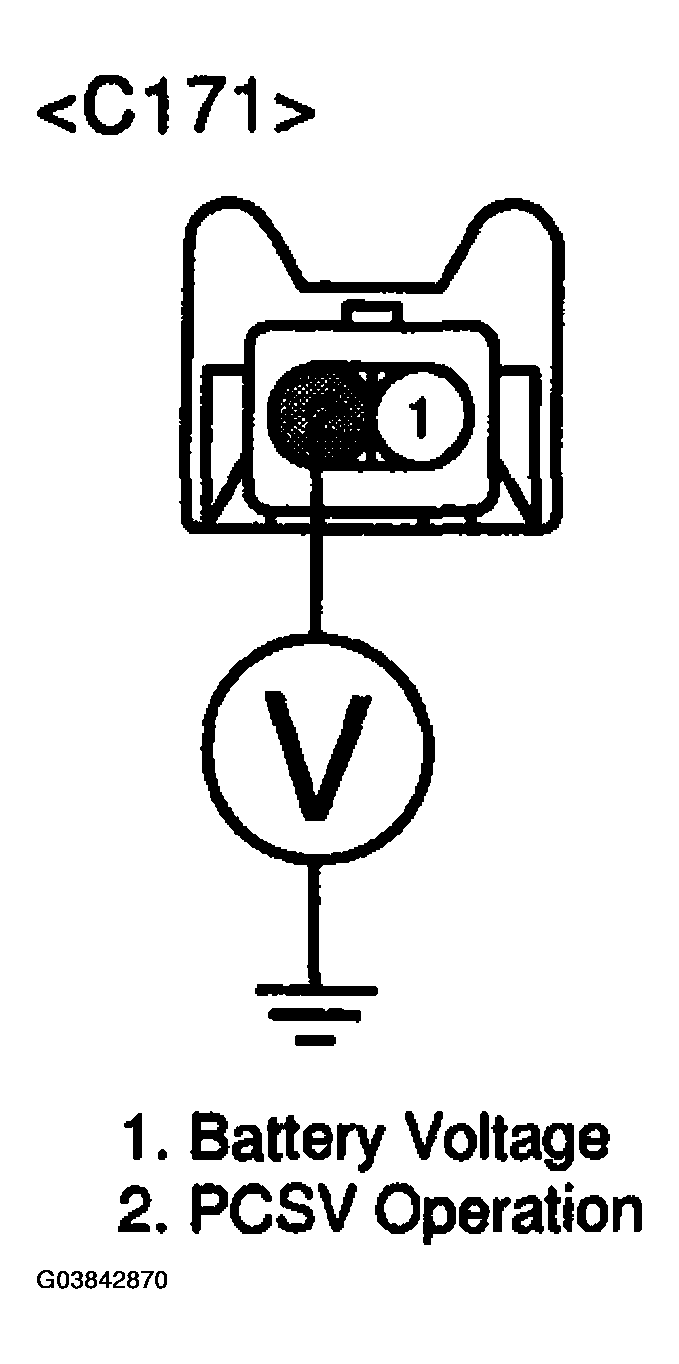

  Fig 2: Measuring Voltage Between Terminal 2 Of PCSV Harness Connector And Chassis Ground
  Courtesy of HYUNDAI MOTOR CO.
3. Is voltage within the specification?
  YES
  - Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure.
  NO
  - Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure.
