Component Inspection

  1. Ignition "OFF".
  2. Disconnect PCSV connector.
  3. Measure resistance between terminals 1 and 2 of the PCSV connector(Component side).
    PCSV RESISTANCE SPECIFICATIONS

    Purge Control Solenoid Valve Normal Parameter At 20°C (68°F)
    Resistance 24.5 ~ 27.5Ω

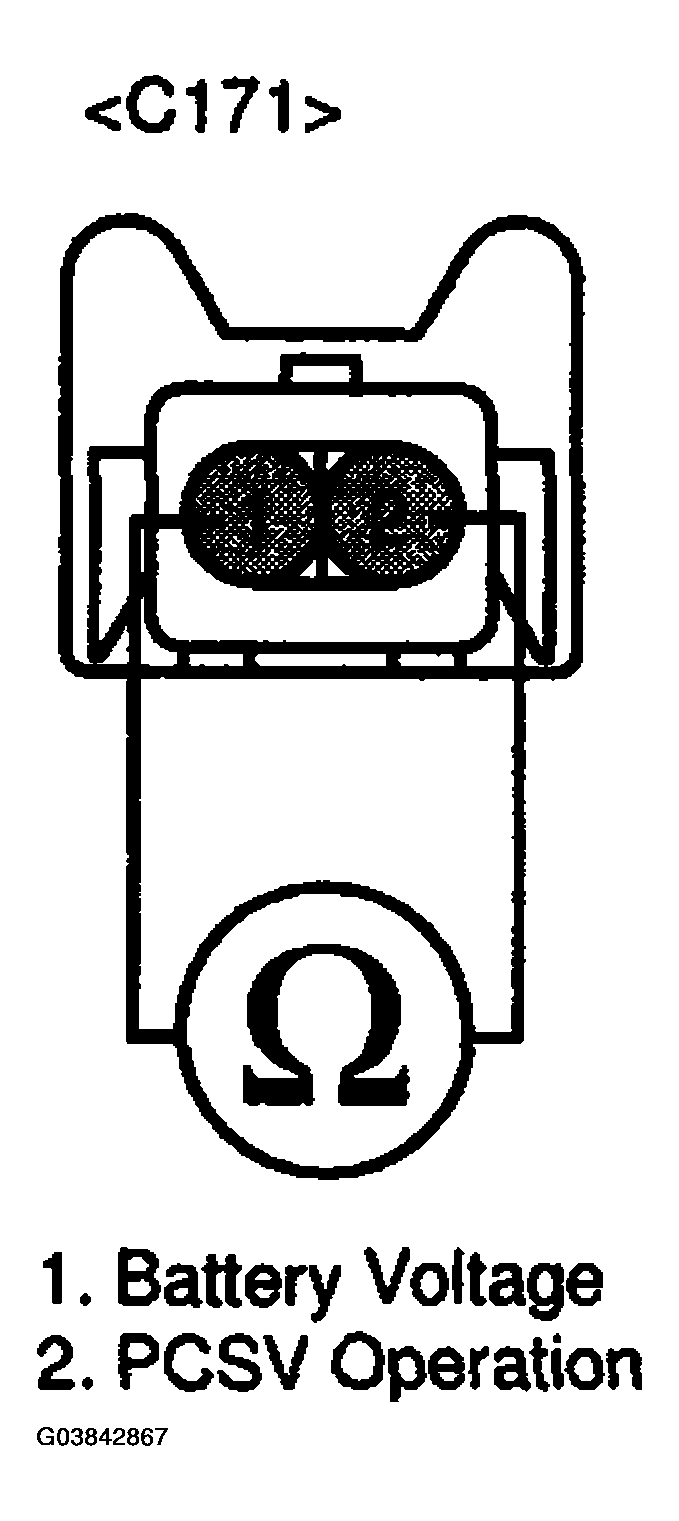

    Fig 1: Measuring Resistance Between Terminals 1 And 2 Of PCSV Connector
    G03842867Courtesy of HYUNDAI MOTOR CO.
  4. Is resistance within the specification?

    YES

    • Go to next step as below.

    NO

    • Check PCSV for contamination, deterioration, or damage. Substitute with a known-good PCSV and check for proper operation. If the problem is corrected, replace PCSV and then go to VERIFICATION OF VEHICLE REPAIR  procedure.
