Control Circuit Inspection

  1. Ignition "OFF"
  2. Disconnect PCM connector
  3. Measure resistance between terminal 2 of the PCSV harness connector and 26 of the PCM harness connector

    Specification : Approx. 0Ω

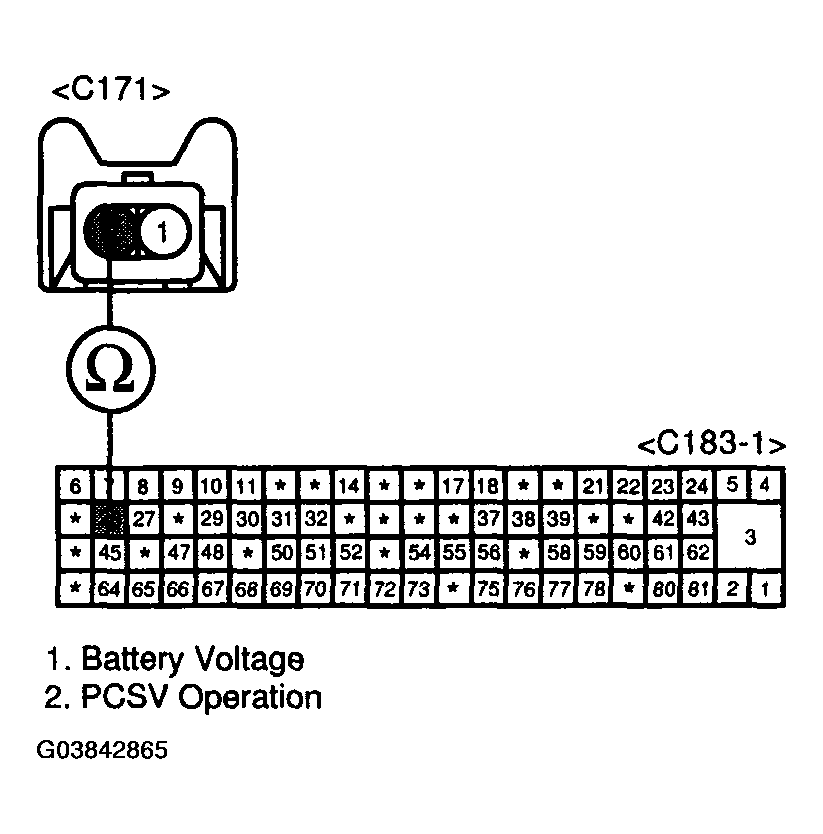

    Fig 1: Measuring Resistance Between Terminal 2 Of PCSV Harness Connector And 26 Of PCM Harness Connector
    G03842865Courtesy of HYUNDAI MOTOR CO.
  4. Is resistance within the specification?

    YES

    • Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR  procedure
