Home >> Hyundai >> 2005 >> Elantra GLS, 4D Hatchback, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System >> DTC Troubleshooting Procedures >> DTC P0335: Crankshaft Position Sensor A Circuit >> Schematic Diagram

Schematic Diagram

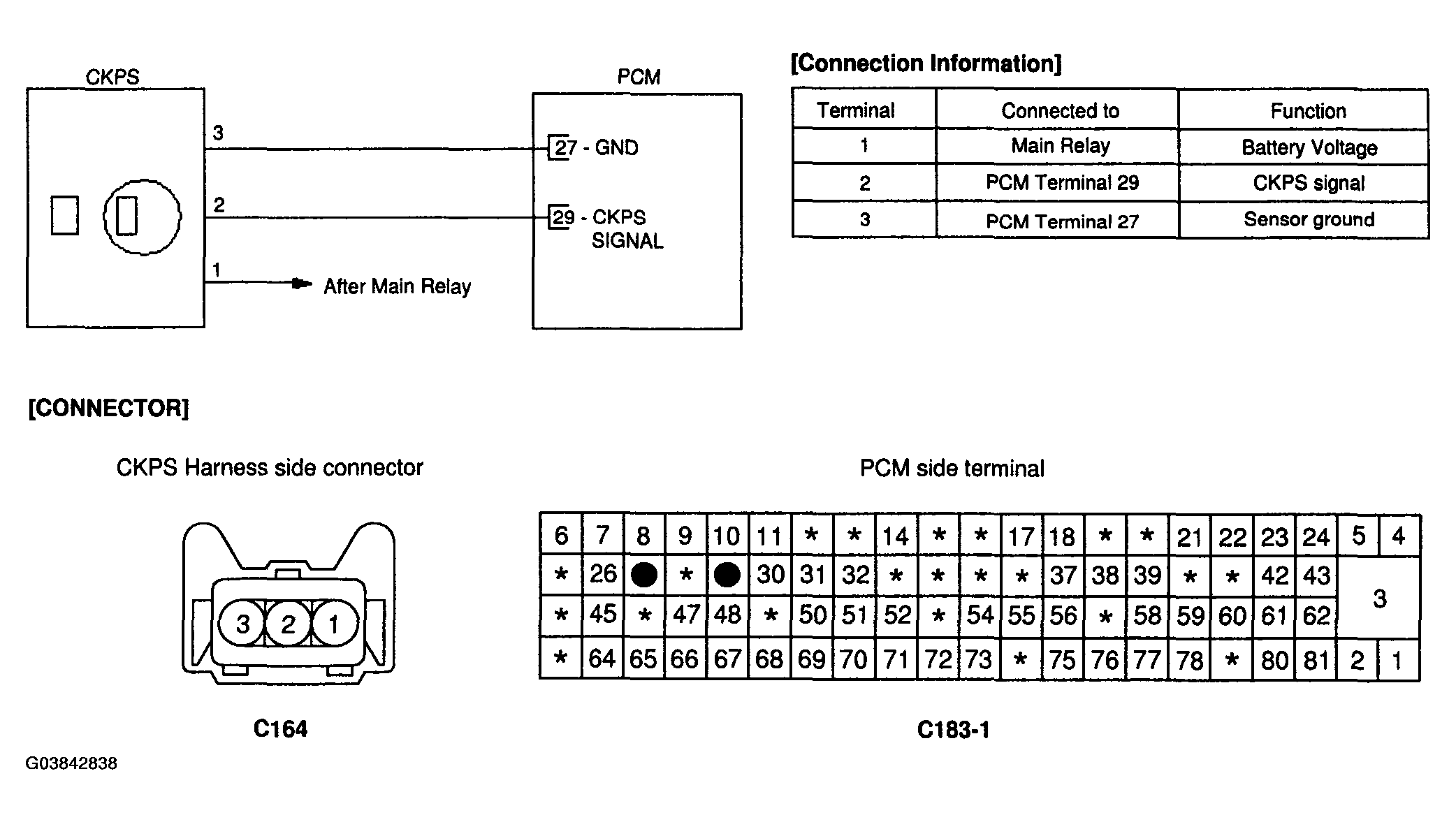

Fig 1: Crankshaft Position Sensor Schematic Diagram

G03842838

Courtesy of HYUNDAI MOTOR CO.
