Power Supply Circuit Inspection

Ignition "OFF".
Disconnect CKP sensor connector.
Ignition "ON" & Engine "OFF".
Measure voltage between terminal 1 of the sensor harness connector and chassis ground.
Specification : Approx. B+

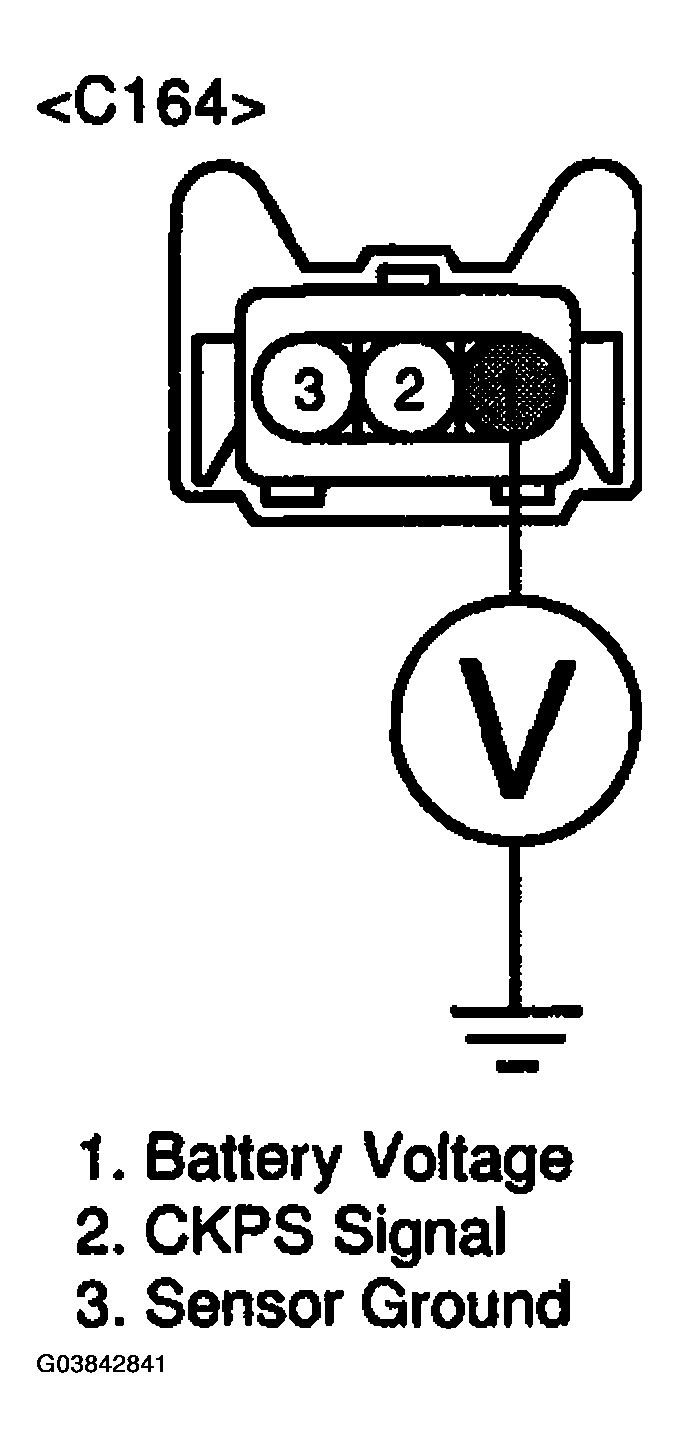

Fig 1: Measuring Voltage Between Terminal 1 Of Sensor Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is voltage within the specification?
YES
- Go to GROUND CIRCUIT INSPECTION procedure.
NO
- Check for a open in the power supply circuit between the main relay and the CKPS.
- Especially check for open or blown 10A sensor fuse.
- Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR procedure.
