Ground Circuit Inspection

  1. Ignition "OFF".
  2. Measure resistance between terminal 3 of the sensor harness connector and chassis ground.

    Specification : Approx. 0Ω

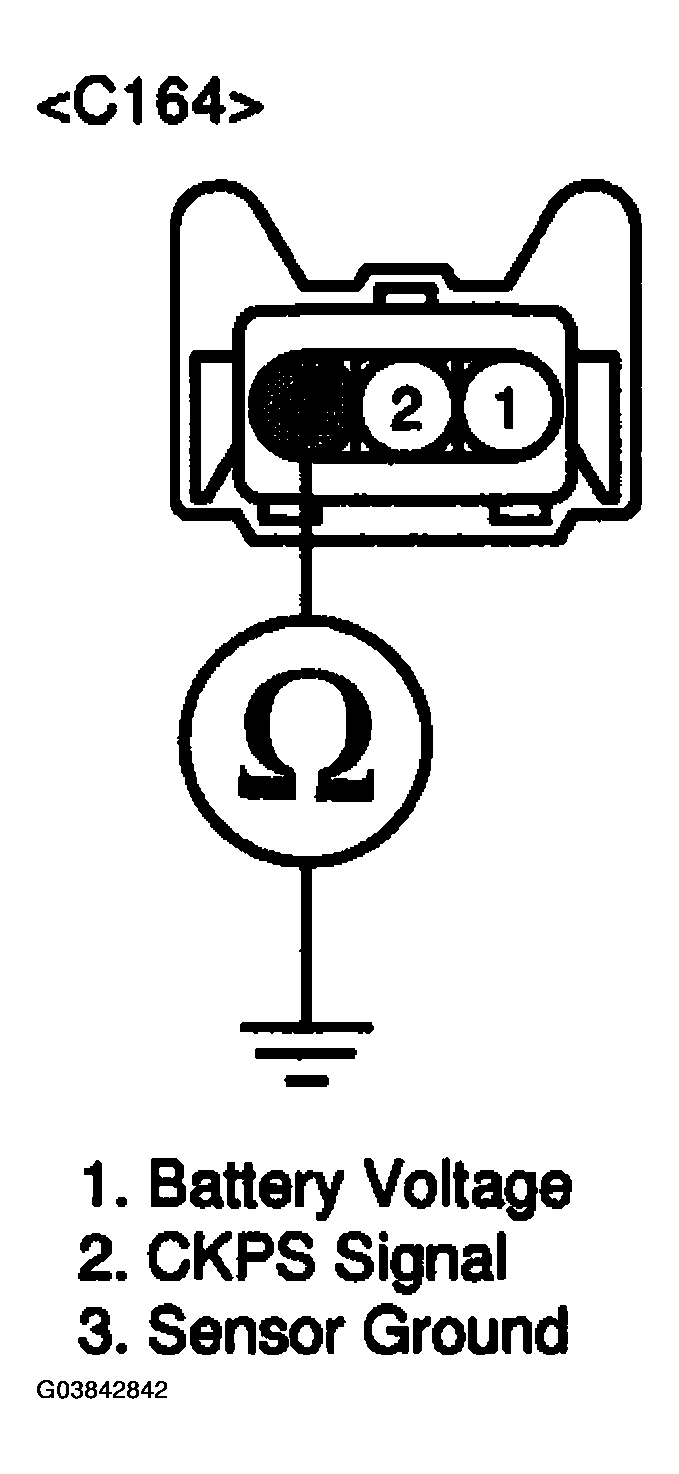

    Fig 1: Measuring Resistance Between Terminal 3 Of Sensor Harness Connector And Chassis Ground
    G03842842Courtesy of HYUNDAI MOTOR CO.
  3. Is resistance within the specification?

    YES

    NO
