Schematic Diagram

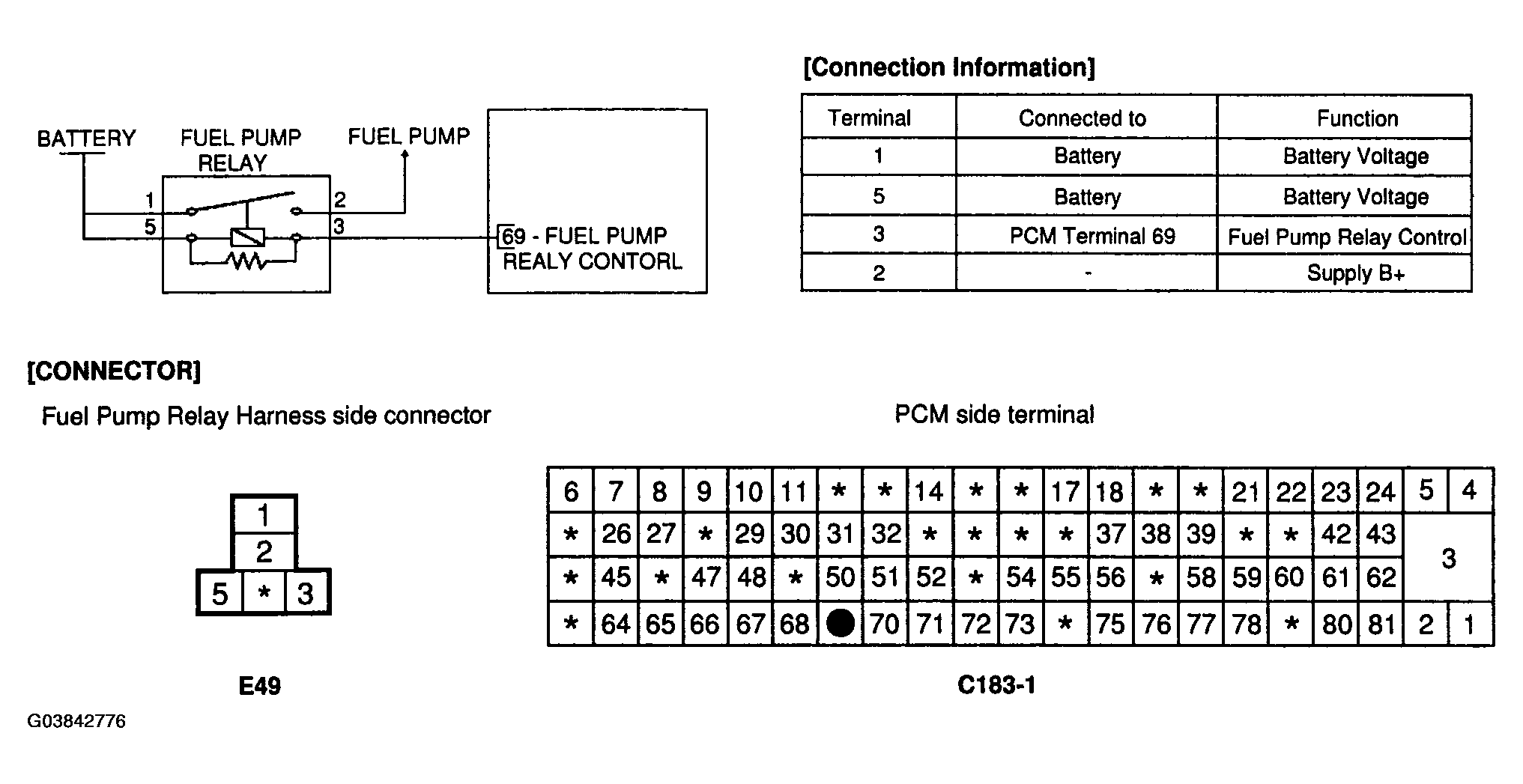

Fig 1: Fuel Pump Primary Schematic Diagram

G03842776

Courtesy of HYUNDAI MOTOR CO.
