Signal Circuit Inspection

  1. Ignition "ON" & Engine "OFF".
  2. Measure voltage between terminal 3 of sensor harness connector and chassis ground.

    Specification : Approx. 0V

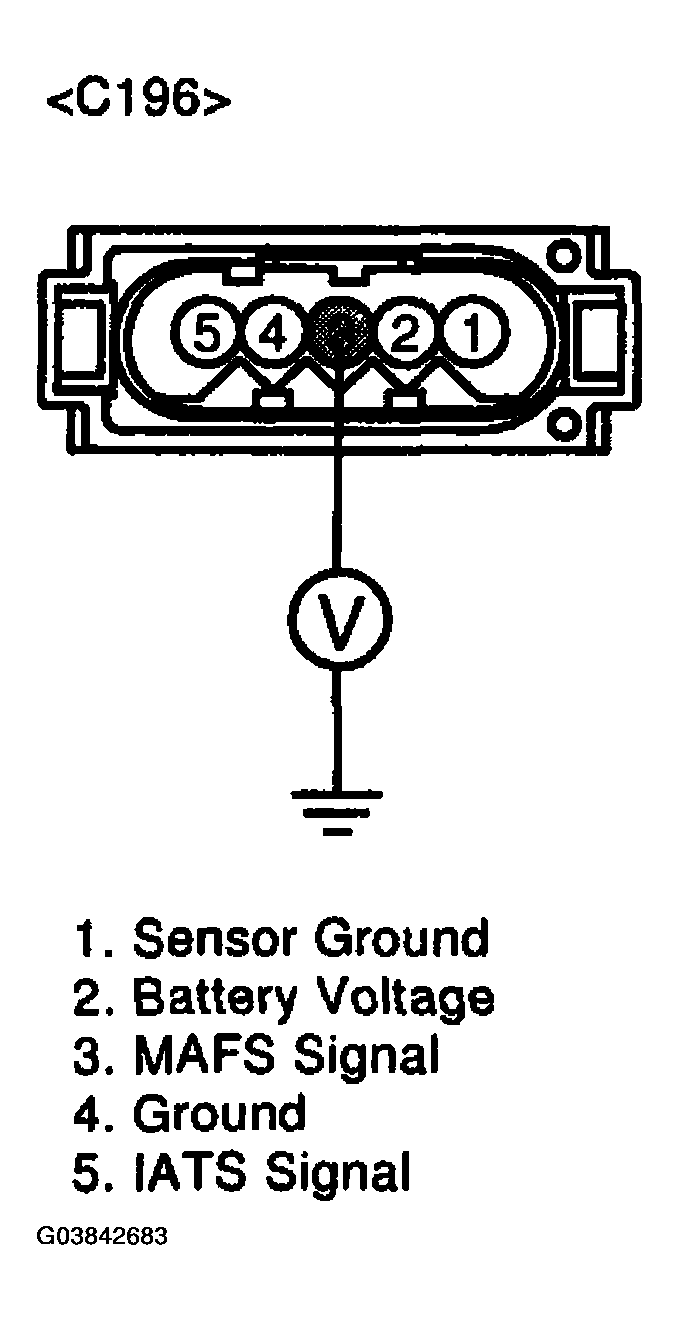

    Fig 1: Measuring Voltage Between Terminal 3 Of Sensor Harness Connector And Chassis Ground
    G03842683Courtesy of HYUNDAI MOTOR CO.
  3. Is MAF sensor voltage within the specification?
