Power Supply Circuit Inspection

  1. Ignition "OFF".
  2. Disconnect MAF sensor connector.
  3. Ignition "ON" & Engine "OFF"
  4. Measure voltage between terminal 2 of the sensor harness connector and chassis ground.

    Specification : Approx. B+

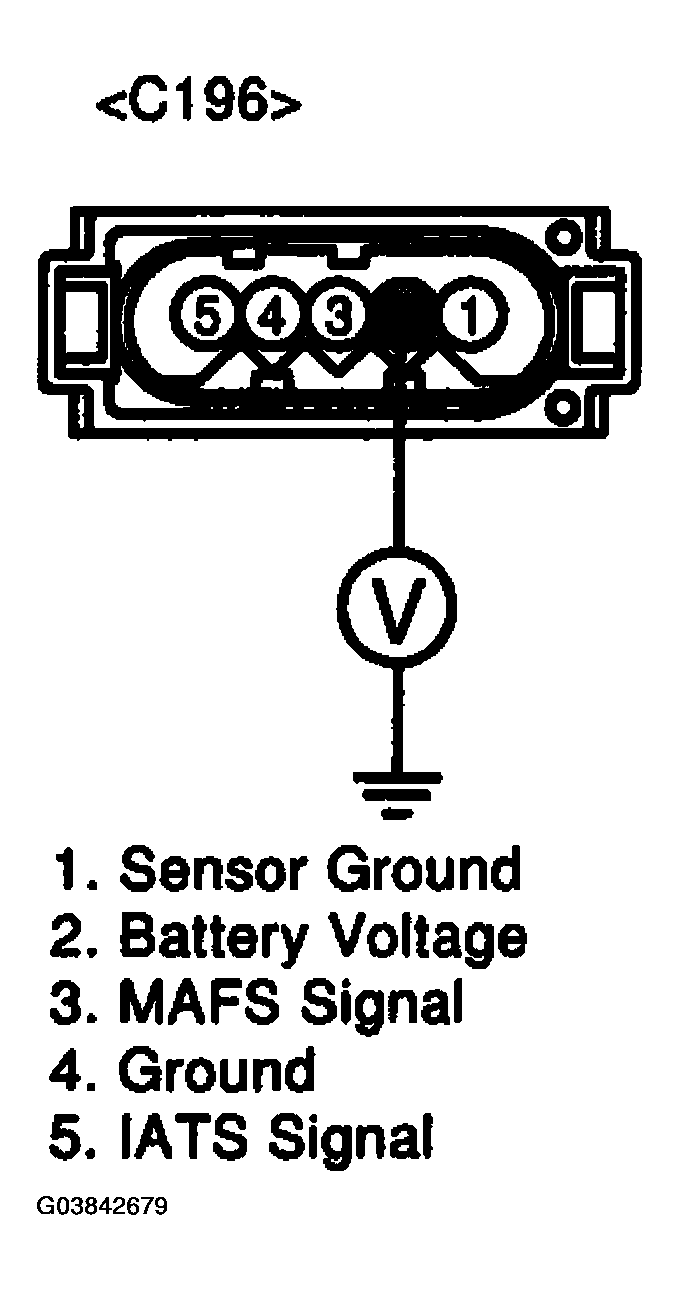

    Fig 1: Measuring Voltage Between Terminal 2 Of Sensor Harness Connector And Chassis Ground
    G03842679Courtesy of HYUNDAI MOTOR CO.
  5. Is voltage within the specification?

    YES

    NO

    • Check for an open or short to ground in the power supply circuit between the MAF sensor and main relay. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR  procedure.
