Cruise Control Unit And Cable

  1. Loosen the locknuts (A) and disconnect the actuator cable (B) from the throttle linkage (C).
    Fig 1: Loosening Actuator Cable Locknuts
    G03842565Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the cruise control unit connector.
  3. Loosen the three mounting bolts (E), and remove the cruise control unit with the bracket (F).

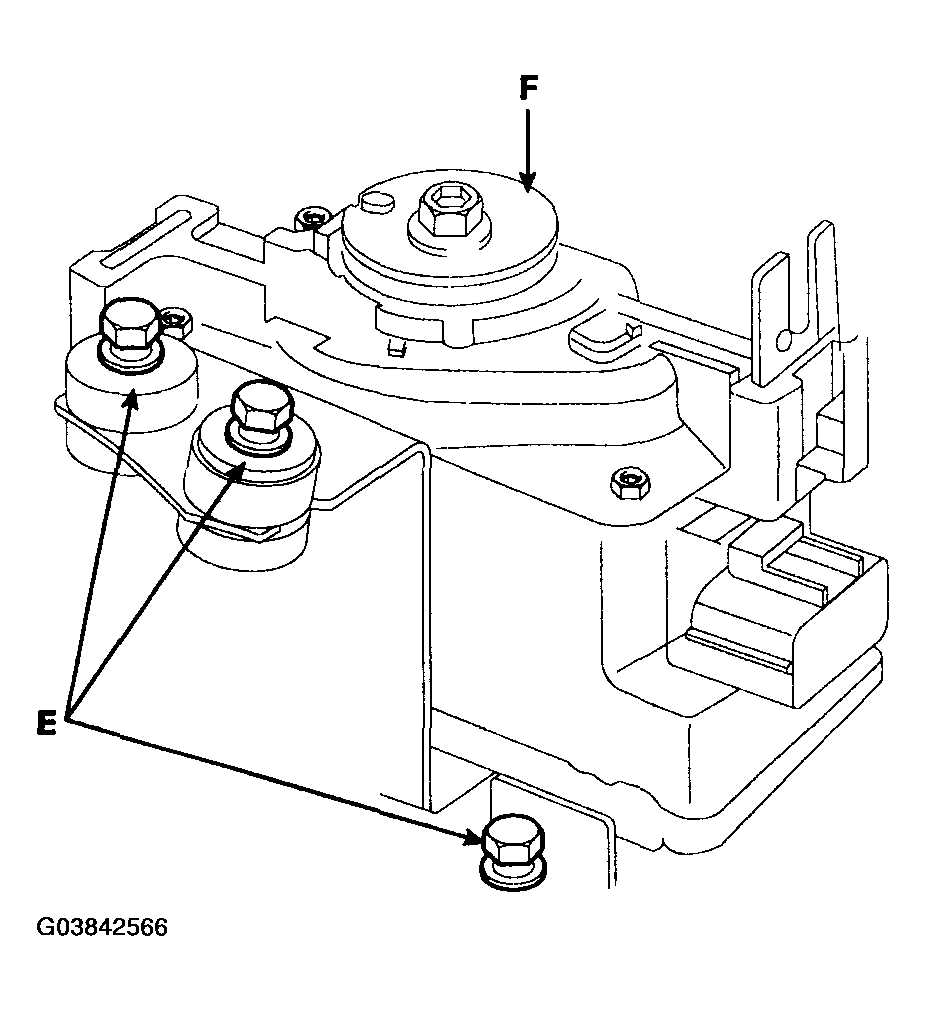

    Fig 2: Removing Cruise Control Unit
    G03842566Courtesy of HYUNDAI MOTOR CO.
  4. Loosen the locknuts and disconnect the actuator cable (B) from the cruise control unit.

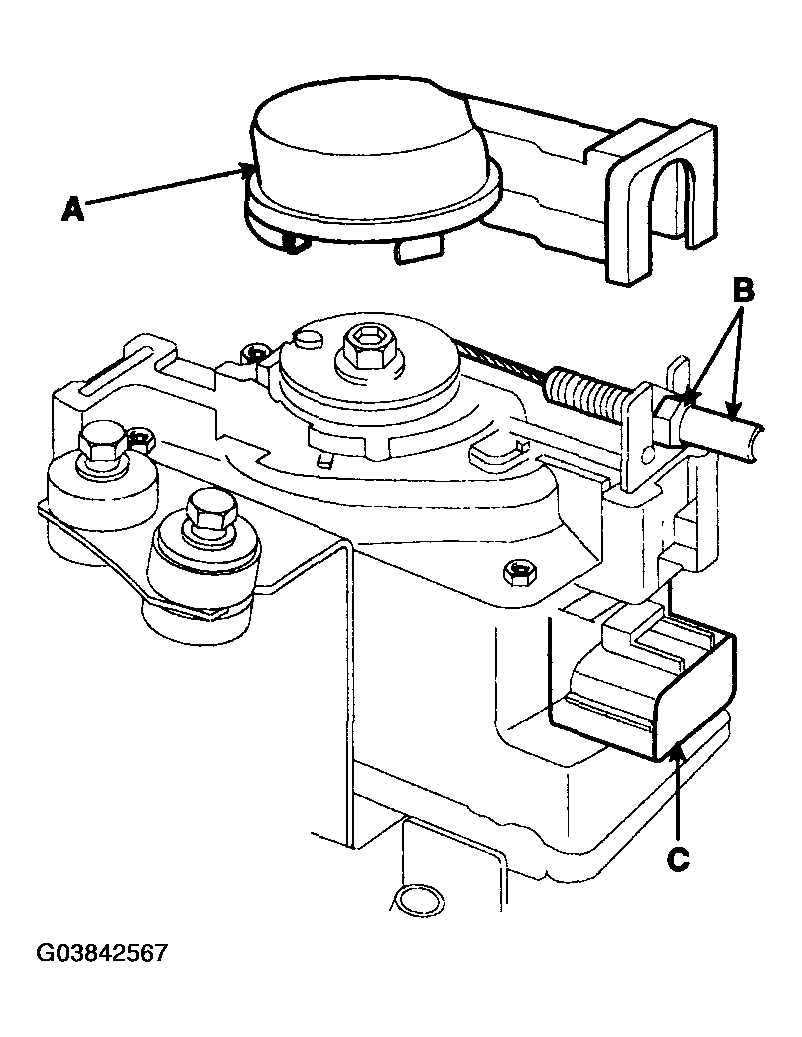

    Fig 3: Disconnecting Actuator Cable
    G03842567Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
