Brake Switch Test

  1. Disconnect the connector from the brake switch.
  2. Remove the brake switch.

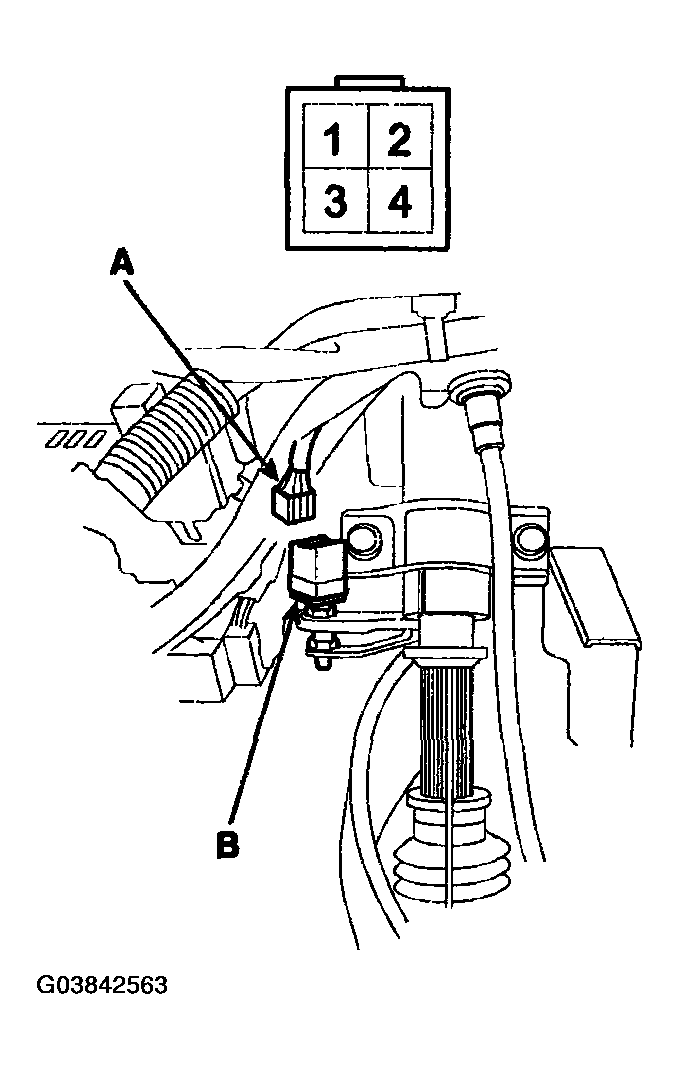

    Fig 1: Removing Brake Switch
    G03842563Courtesy of HYUNDAI MOTOR CO.
  3. Check for continuity between the terminals according to the table.
    Fig 2: Brake Switch Continuity Table
    G03842564Courtesy of HYUNDAI MOTOR CO.
  4. If necessary, replace the switch or adjust the pedal height.
