[With Abs]

  1. Check for open in circuit.
    1. Ignition "OFF".
    2. Disconnect PCM and ABS Control Module connectors
    3. Measure resistance between terminals 39 of the PCM harness connector and 3 of the ABS Control Module harness connector(W/ABS)

      Specification : Approx. 0Ω

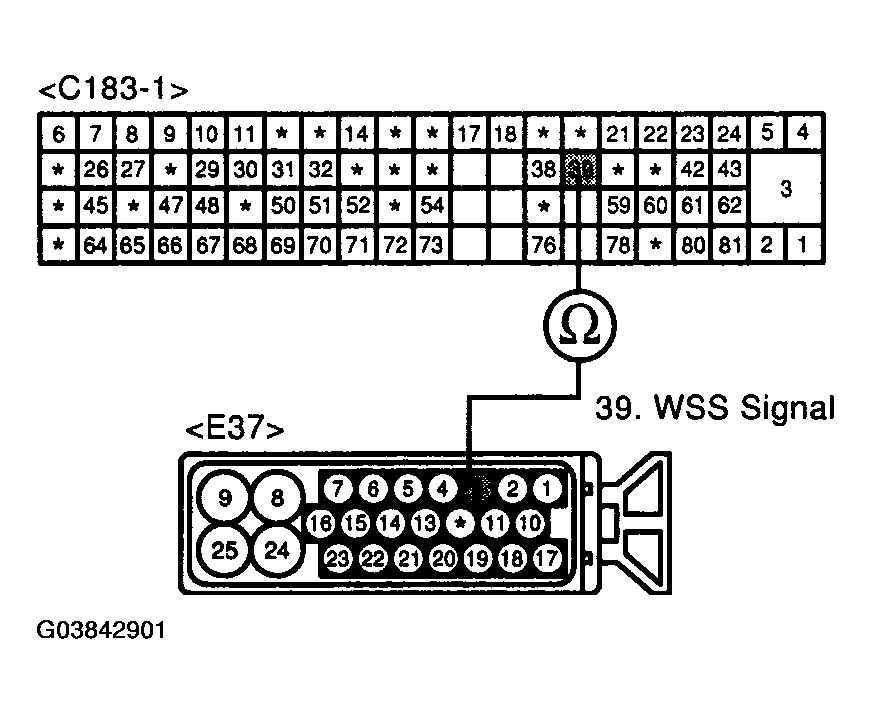

      Fig 1: Measuring Resistance Between Terminals 39 Of PCM Harness Connector And 3 Of ABS Control Module Harness Connector
      G03842901Courtesy of HYUNDAI MOTOR CO.
    4. Is resistance within the specification?

      YES

      • Go to next step as below.

      NO

  2. Check for short to ground in circuit.
    1. Measure resistance between terminal 39 of the PCM harness connector and chassis ground.

      Specification : Infinite

      Fig 2: Measuring Resistance Between Terminal 39 Of PCM Harness Connector And Chassis Ground
      G03842902Courtesy of HYUNDAI MOTOR CO.
    2. Is resistance within the specification?

      YES

      • Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR  procedure.

      NO
