Inspection Procedure 16

POSSIBLE CAUSES - INSPECTION PROCEDURE 16

Overdrive switch system Possible cause
In cases such as the above, the cause may be a defective overdrive switch circuit or defective ignition switch circuit.
  • Malfunction of overdrive switch
  • Malfunction of connector
  • Malfunction of ignition switch
  • Malfunction of PCM

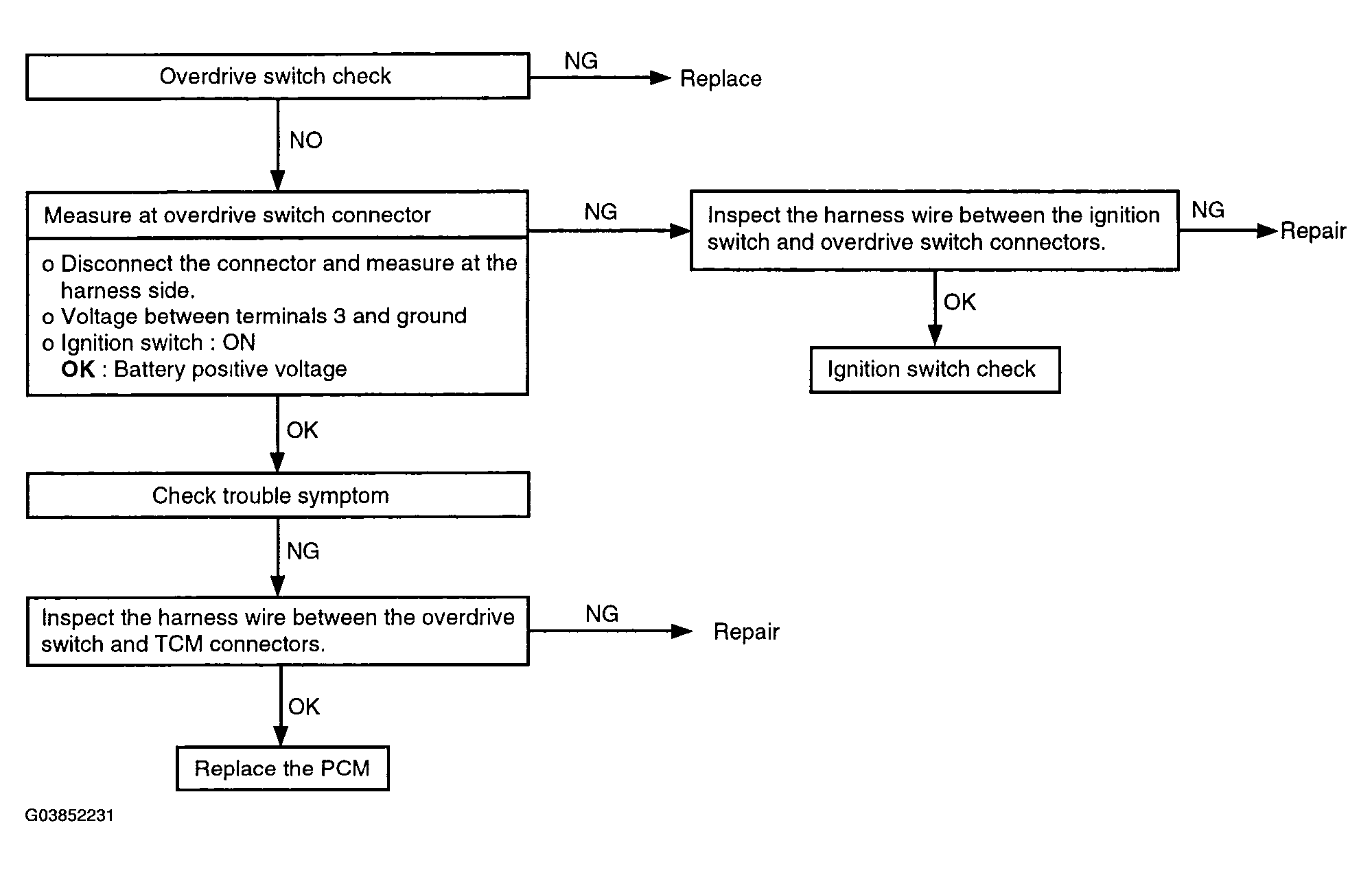

Fig 1: Inspection Procedure 16 - Flow Chart
G03852231Courtesy of HYUNDAI MOTOR CO.
