Inspection Procedure 13

POSSIBLE CAUSES - INSPECTION PROCEDURE 13

Does not shift Possible cause
Shifting does not occur while driving, and no fail-safe codes are output. In such cases, the cause may be a defective overdrive switch or parking switch.
  • Malfunction of overdrive switch
  • Malfunction of parking position switch
  • Malfunction of power supply circuit
  • Malfunction of PCM

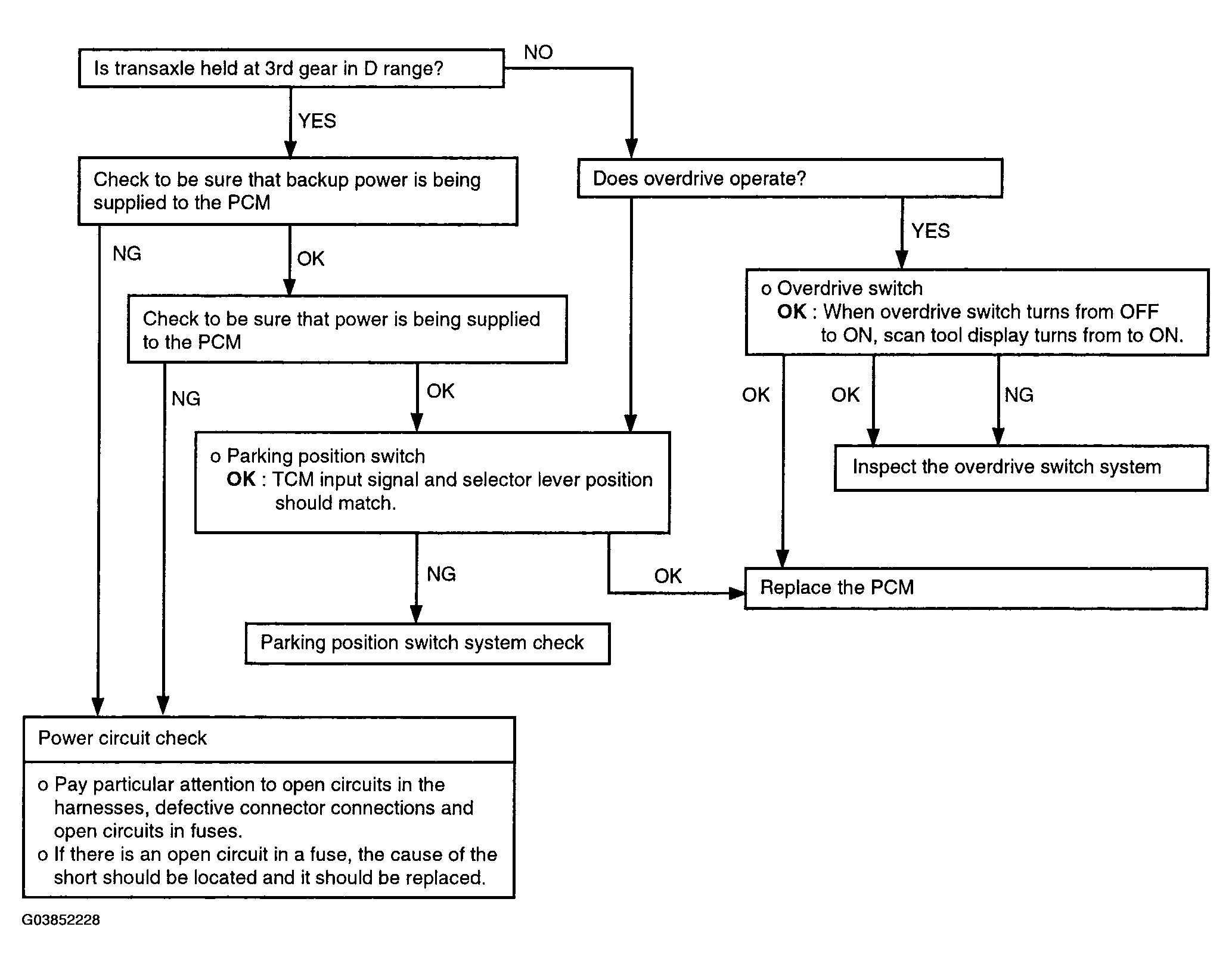

Fig 1: Inspection Procedure 13 - Flow Chart
G03852228Courtesy of HYUNDAI MOTOR CO.
