Inspection Procedure 11

POSSIBLE CAUSES - INSPECTION PROCEDURE 11

All points (Early, late shifting points)	Possible cause
All shift points occurs early, late while driving. In such cases, the cause may be a defective pulse generator B (PG-B) or shift control solenoid valve A or B (SCSV-A, B).	Malfunction of pulse generator B (PG-B) Malfunction of shift control solenoid valve A or B (SCSV-A, B) Malfunction of PCM Abnormal reducing pressure or kickdown servo brake application pressure Malfunction of clutches and brake

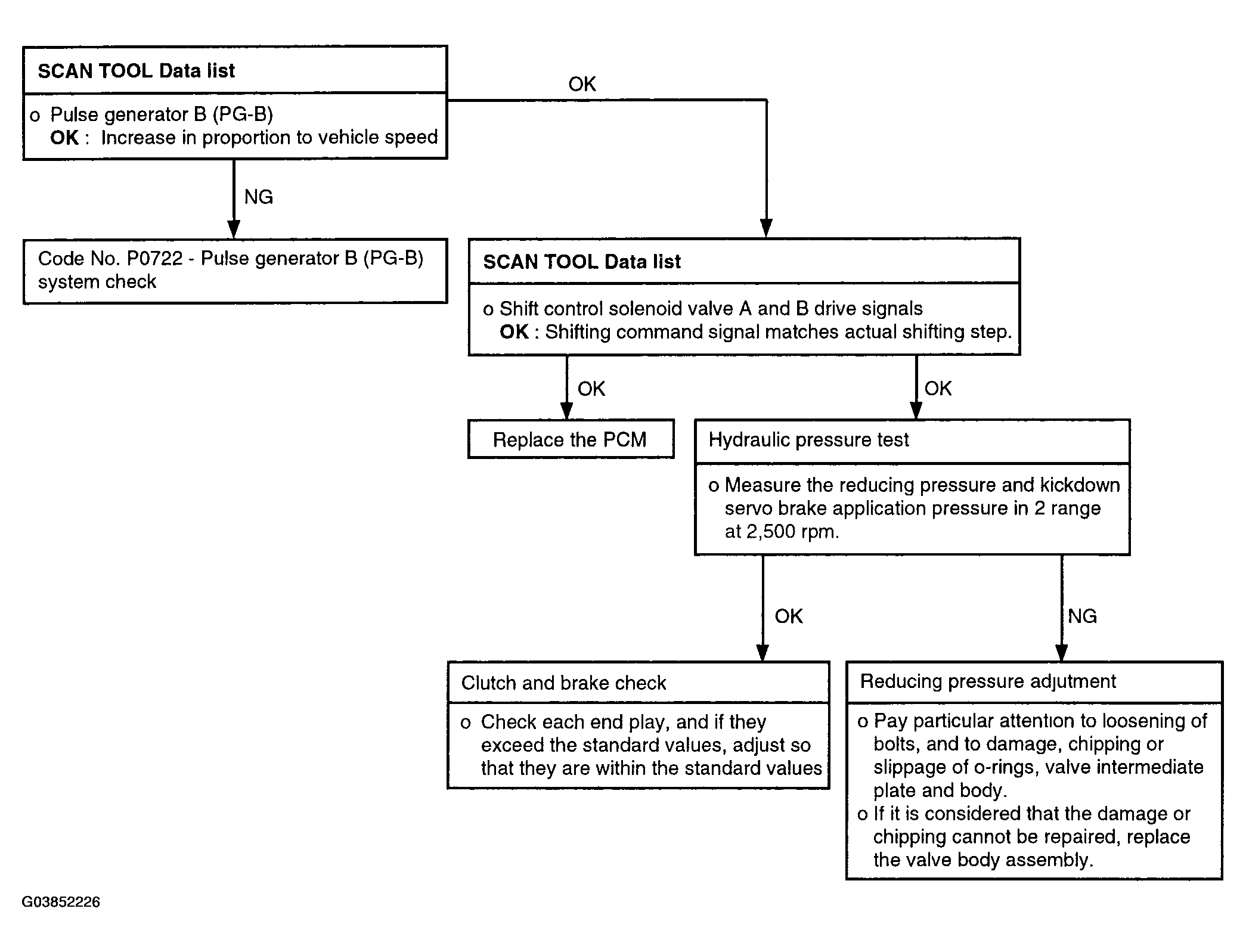

Fig 1: Inspection Procedure 11 - Flow Chart

Courtesy of HYUNDAI MOTOR CO.
