Starter Test Procedure: Notes

After the battery test, press ENTER immediately for the starter test.

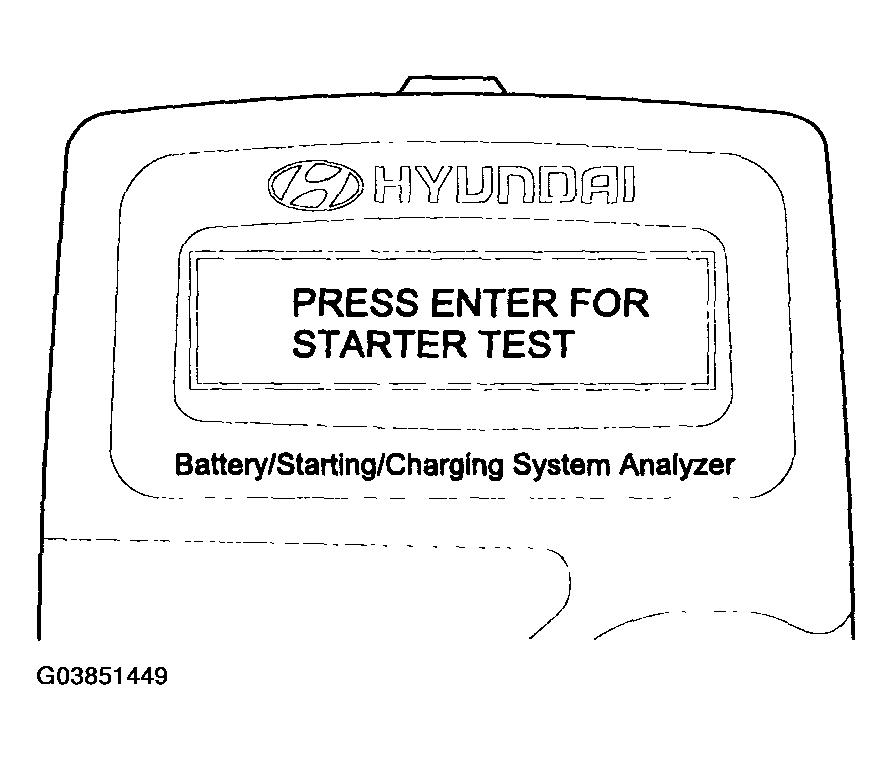

Fig 1: Identifying Starter Test Screen
Courtesy of HYUNDAI MOTOR CO.
After pressing ENTER key, start the engine.

Fig 2: Identifying Start Engine Screen
Courtesy of HYUNDAI MOTOR CO.
Cranking voltage and starter test results will be displayed on the screen.
Take a relevant action according to the test results by referring to the starter test results as given below.

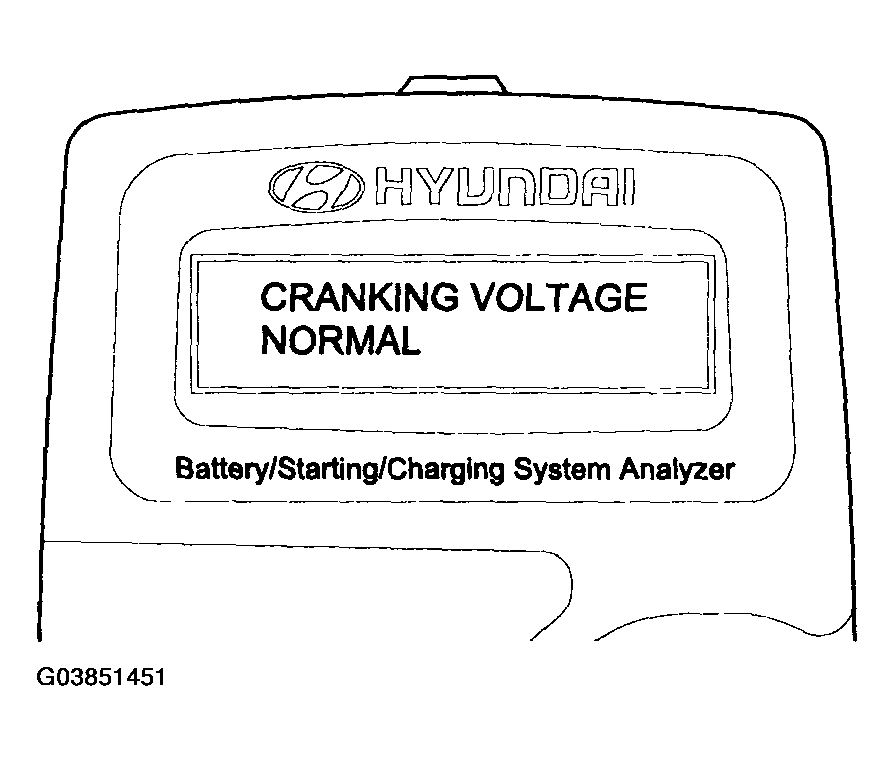

Fig 3: Identifying Cranking Voltage Screen
Courtesy of HYUNDAI MOTOR CO.
To continue charging system test, press ENTER.
