Inspection Procedure 9

POSSIBLE CAUSES - INSPECTION PROCEDURE 9

Shocks when shifting from N to D, N to R and long lag time	Possible cause
When the engine is idling, abnormal shocks or a lag time of 2 seconds or more occur when the selector lever is shifted from N to D range and from N to R range. In such cases, the cause may be abnormal reducing pressure or a defective oil pump.	Abnormal reducing pressure Malfunction of oil pump Malfunction of valve body

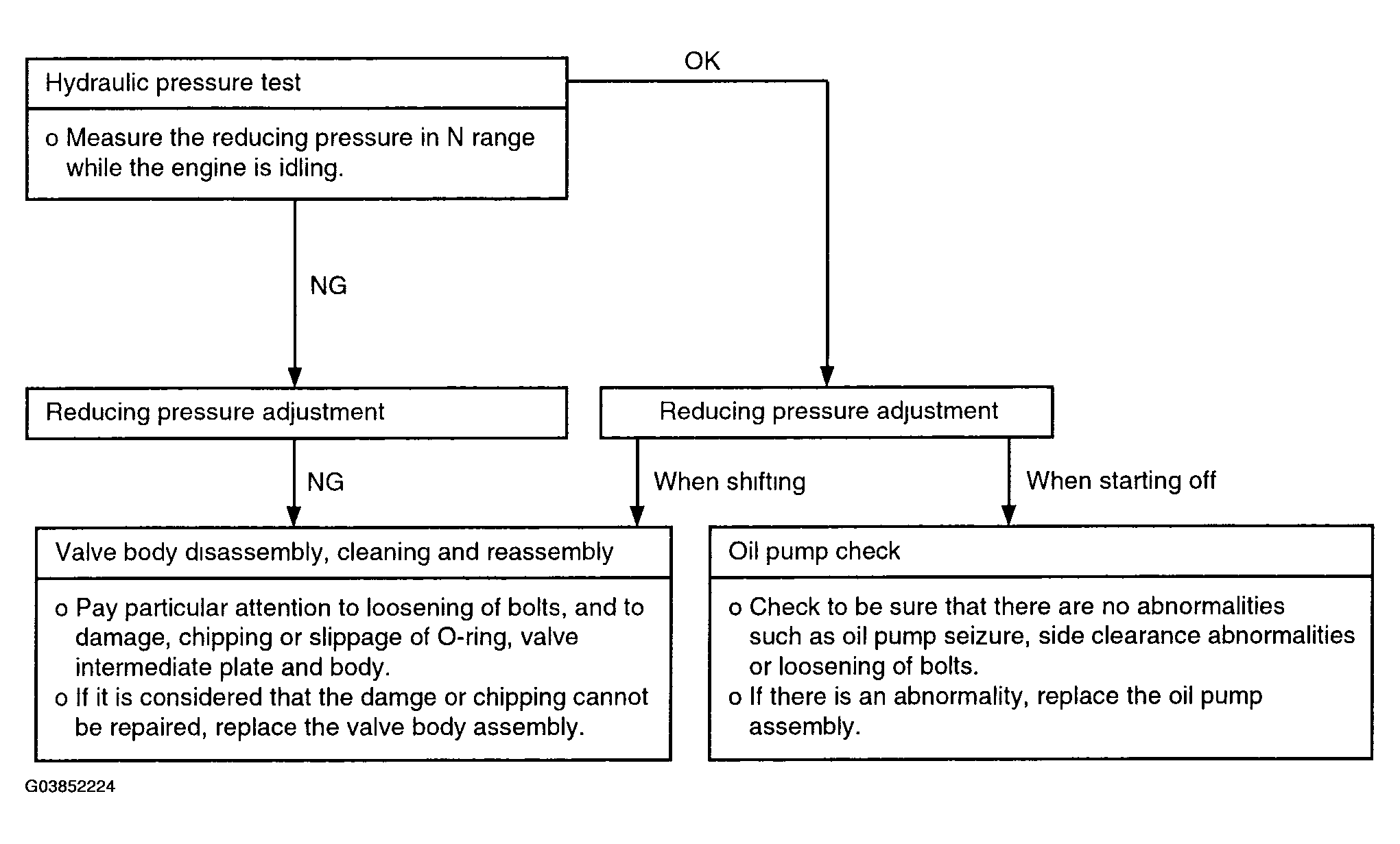

Fig 1: Inspection Procedure 9 - Flow Chart

Courtesy of HYUNDAI MOTOR CO.
