Inspection Procedure 6

POSSIBLE CAUSES - INSPECTION PROCEDURE 6

Engine stalling during shifting Possible cause
When the engine is idling, the engine stalls when the selector lever is shifted from N to D, 2, L or R range. In such cases, the cause may be a defective engine system or damper clutch control solenoid valve.
  • Malfunction of engine system
  • Malfunction of torque converter clutch solenoid
  • Malfunction of valve body
  • Malfunction of torque converter

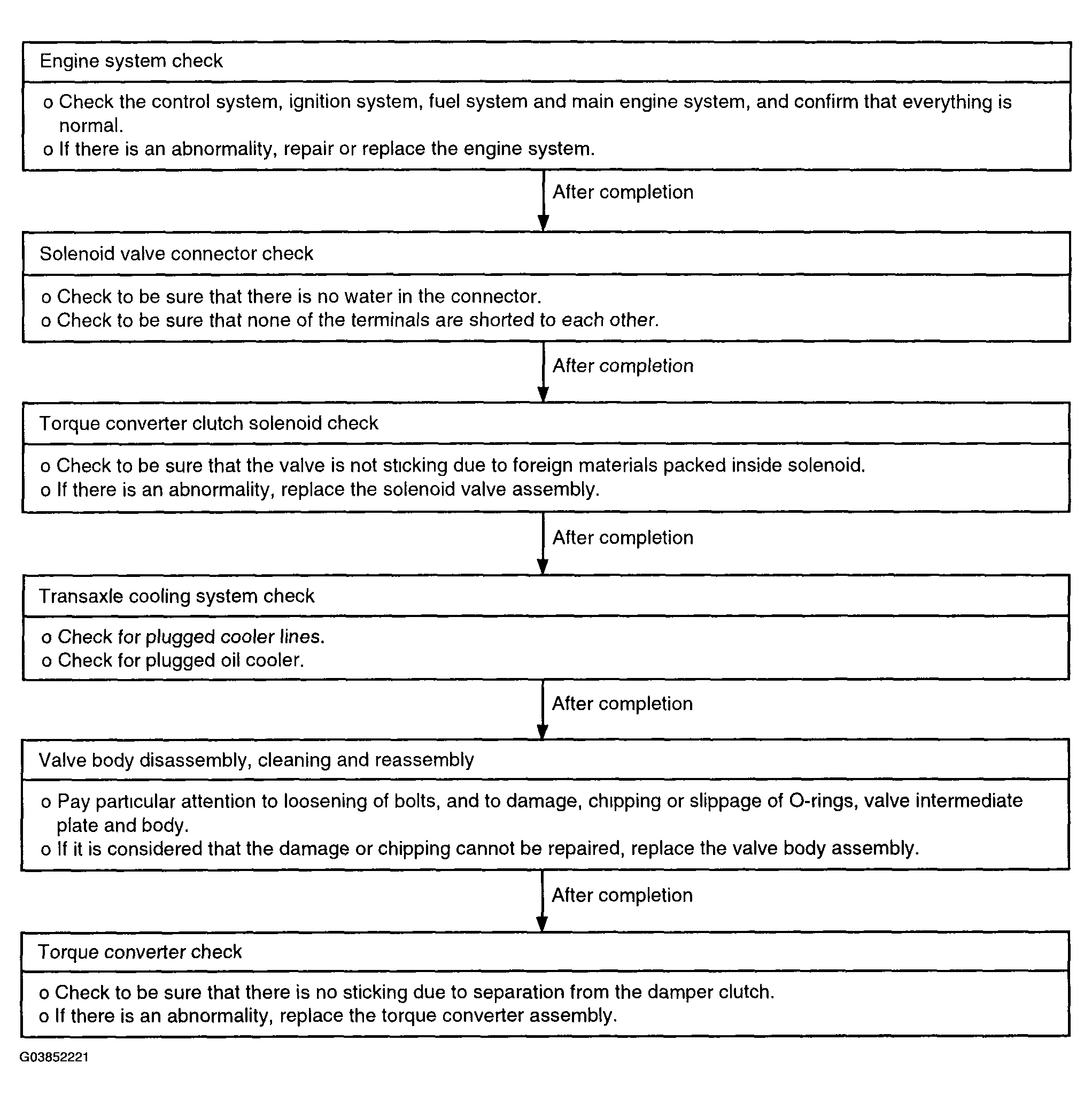

Fig 1: Inspection Procedure 6 - Flow Chart
G03852221Courtesy of HYUNDAI MOTOR CO.
