Inspection Procedure 5

POSSIBLE CAUSES - INSPECTION PROCEDURE 5

Does not move (forward or reverse) Possible cause
When the engine is idling, the vehicle does not move forward or reverse even if the selector lever is shifted from N to D, 2, L or R range. In such cases, the cause may be abnormal reducing pressure, or a defective oil pump or power train.
  • Abnormal reducing pressure
  • Malfunction of power train
  • Malfunction of oil pump
  • Malfunction of valve body

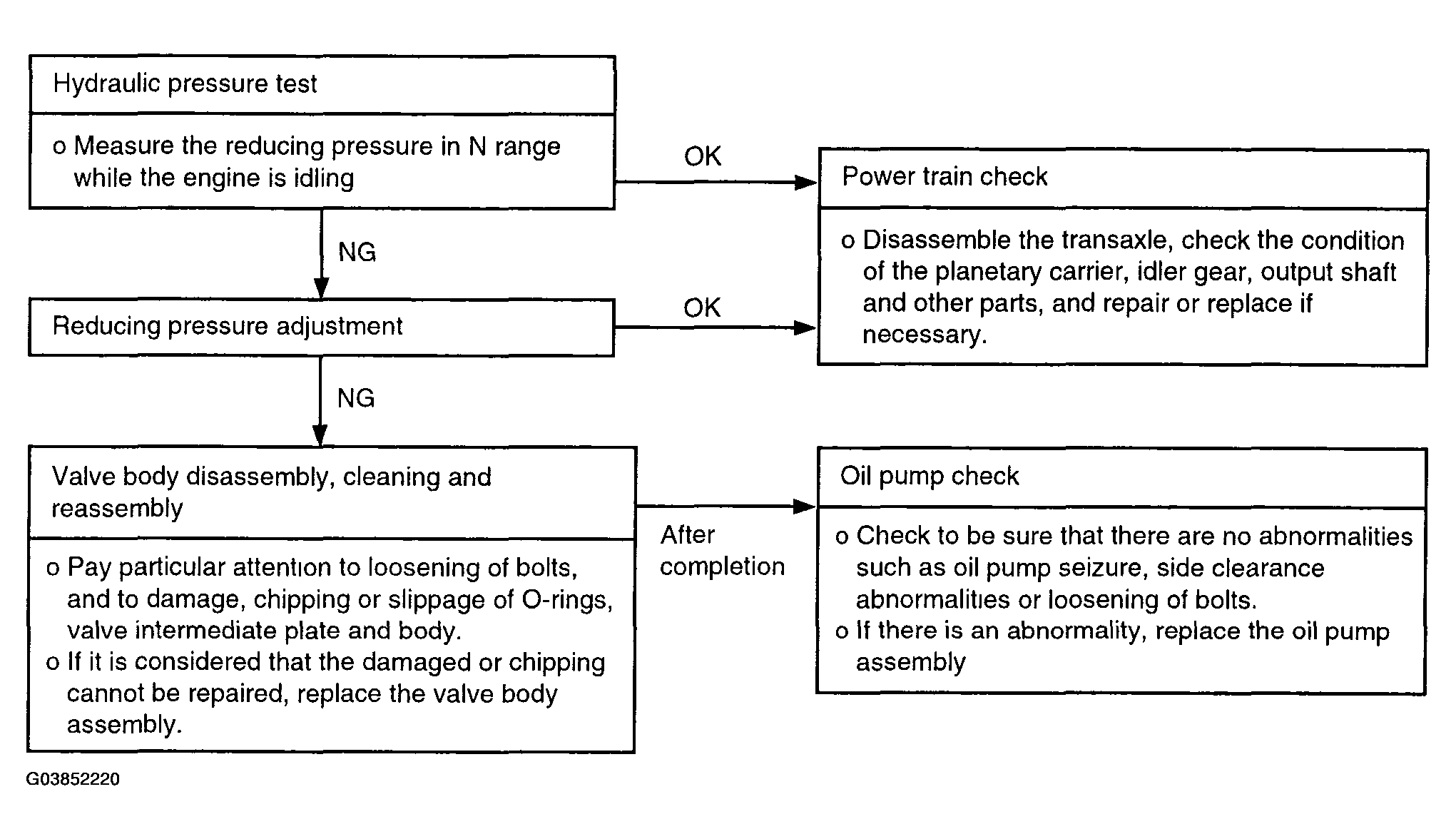

Fig 1: Inspection Procedure 5 - Flow Chart
G03852220Courtesy of HYUNDAI MOTOR CO.
