Inspection Procedure 2

POSSIBLE CAUSES - INSPECTION PROCEDURE 2

Starting Impossible (will not crank) Possible cause
Starting is not possible when the selector lever is in P or N range. In such cases, the cause may be a defective engine system, torque converter or oil pump.
  • Malfunction of the engine system
  • Malfunction of the oil pump
  • Malfunction of the torque converter

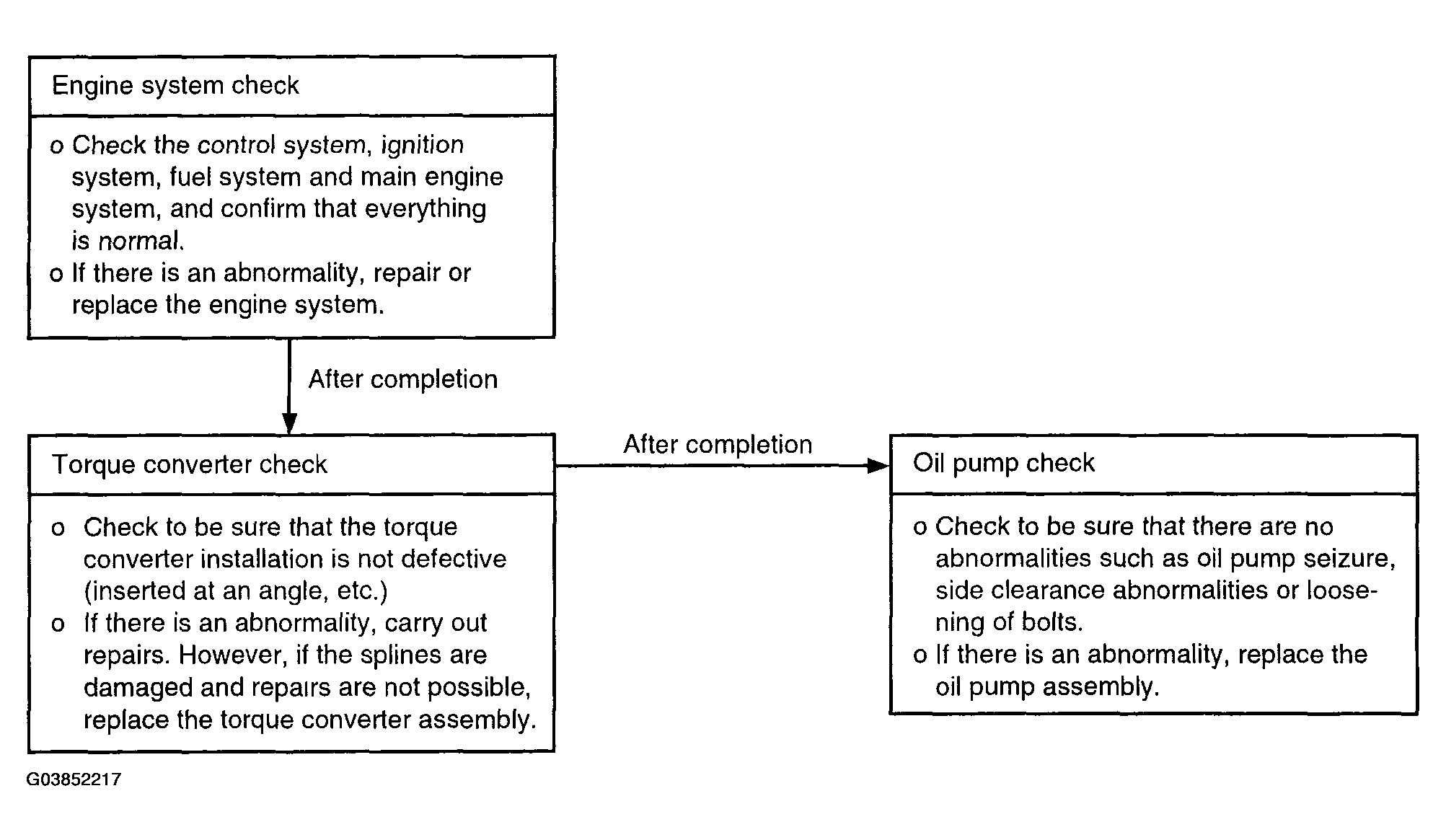

Fig 1: Inspection Procedure 2 - Flow Chart
G03852217Courtesy of HYUNDAI MOTOR CO.
