Inspection Procedure 15

POSSIBLE CAUSE - INSPECTION PROCEDURE 15

Vibration	Possible cause
Vibration occurs when driving at constant speed or when accelerating in top range. In such case, the cause may be abnormal torque converter clutch pressure or a defective torque converter.	Abnormal torque converter clutch pressure Malfunction of engine system Malfunction of torque converter Malfunction of valve body

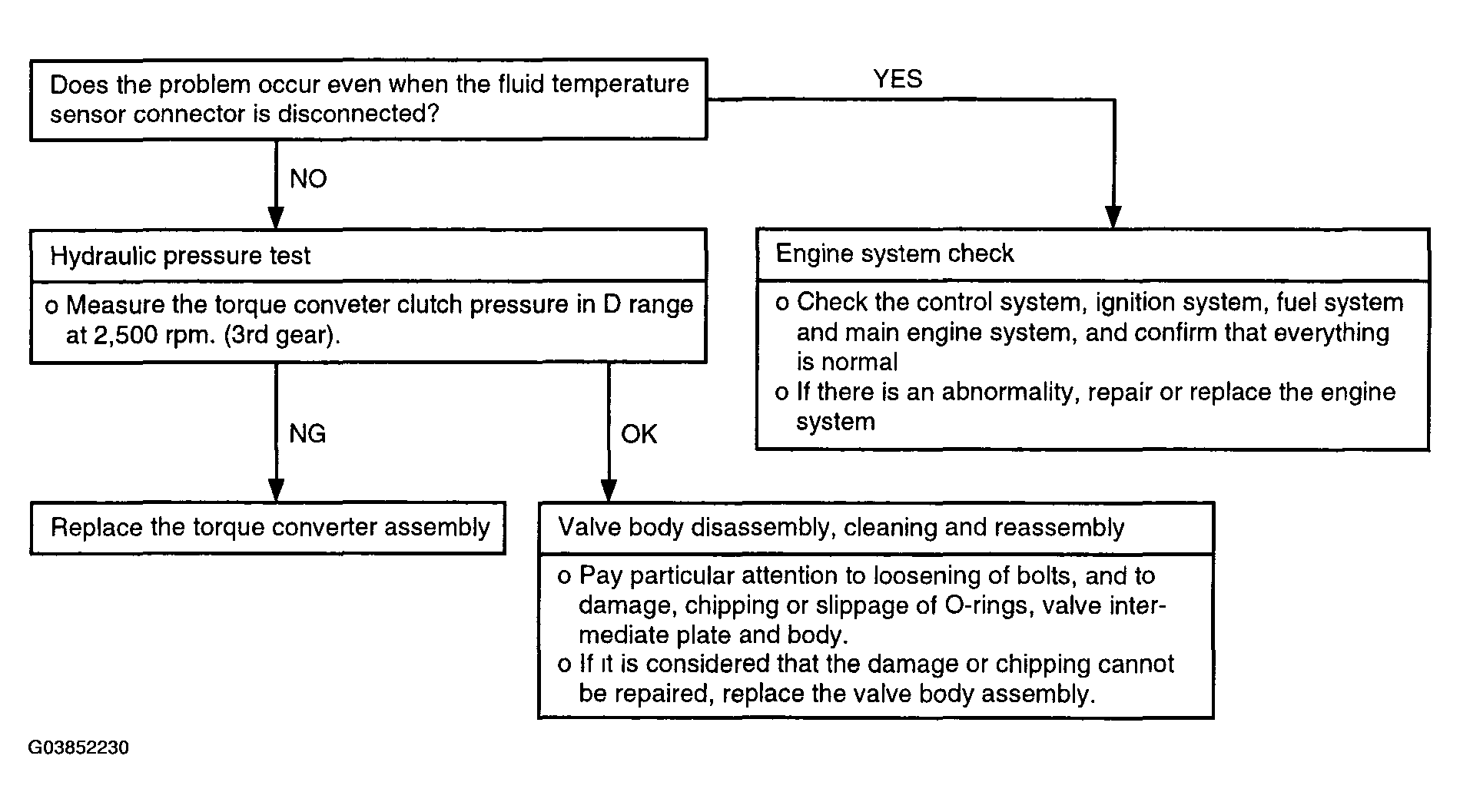

Fig 1: Inspection Procedure 15 - Flow Chart

Courtesy of HYUNDAI MOTOR CO.
