Inspection Process For Trouble Symptoms
>>
Inspection Procedure 5
Inspection Procedure 5

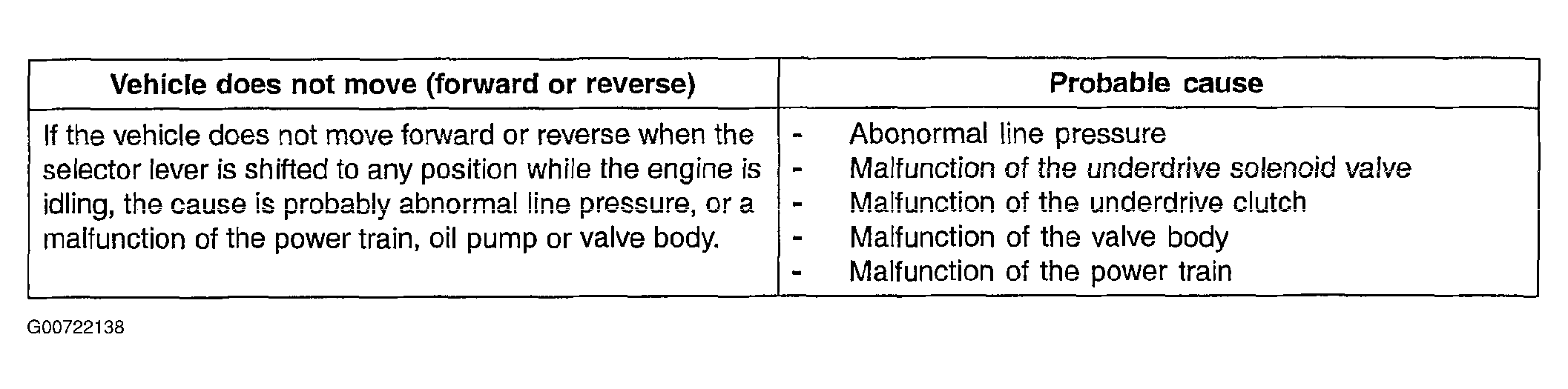

Fig 1: Inspection Procedure 5 (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

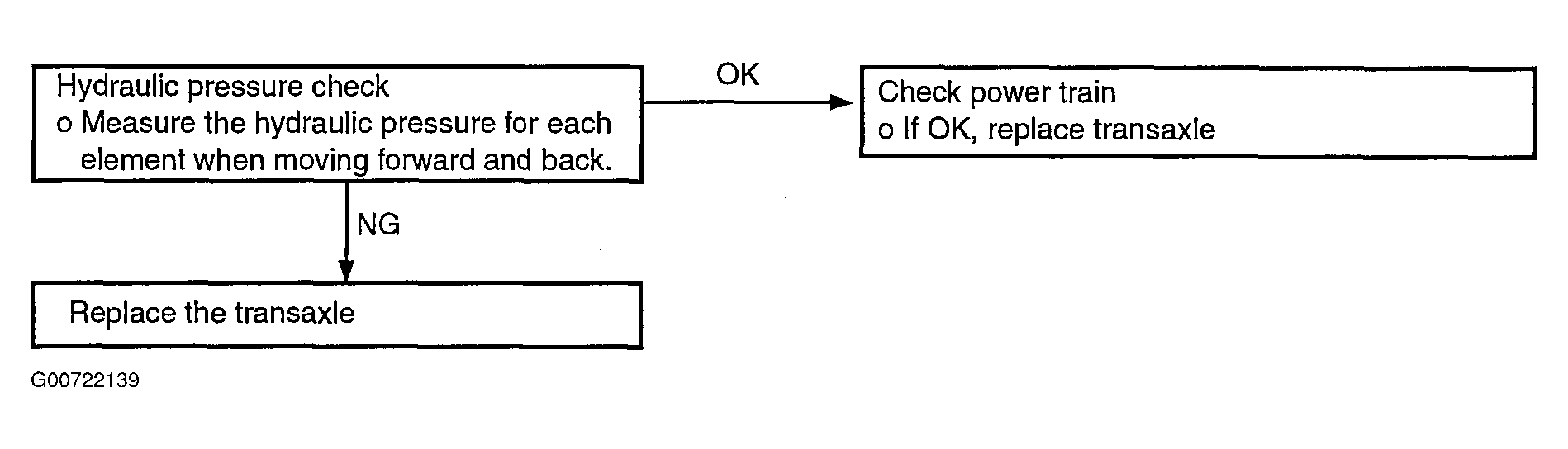

Fig 2: Inspection Procedure 5 (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
