Component Inspection

Check FTPS.
1. Engine "ON".
2. Measure voltage between terminal "3" of FTPS connector and chassis ground.
  1. Specification: 2.4~2.6V (at idle)

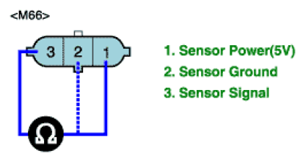

    Fig 1: Measuring Voltage Between Terminal 3 Of FTPS Connector And Chassis Ground
3. Is the measured voltage within specifications?
  YES
  - Go to " 2 Check PCM" as below.
  NO
  - Substitute with a known - good FTPS and check for proper operation.
    If the problem is corrected, replace FTPS and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Check PCM.
1. Ignition "OFF".
2. Connect Scantool and Ignition "ON" & Engine "OFF".
3. Select simulation function on scantool.
4. Simulate voltage at terminal "3" of FTPS signal connector.
  1. Specification: 2.4~2.6V (at idle)

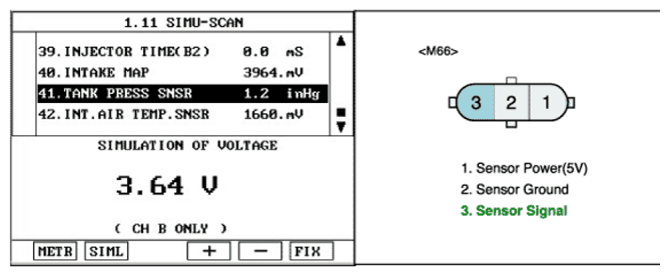

    Fig 2: Display - FTPS Sensor Voltage Simulation
5. Does the signal value of FTPS change according to simulation voltage?
  YES
  - Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Substitute with a known-good PCM and check for proper operation. If the problem is corrected, replace PCM and "Verification of Vehicle Repair" procedure.
