Inspection Procedure For Trouble Symptoms
>>
Inspection Procedure 2
Inspection Procedure 2

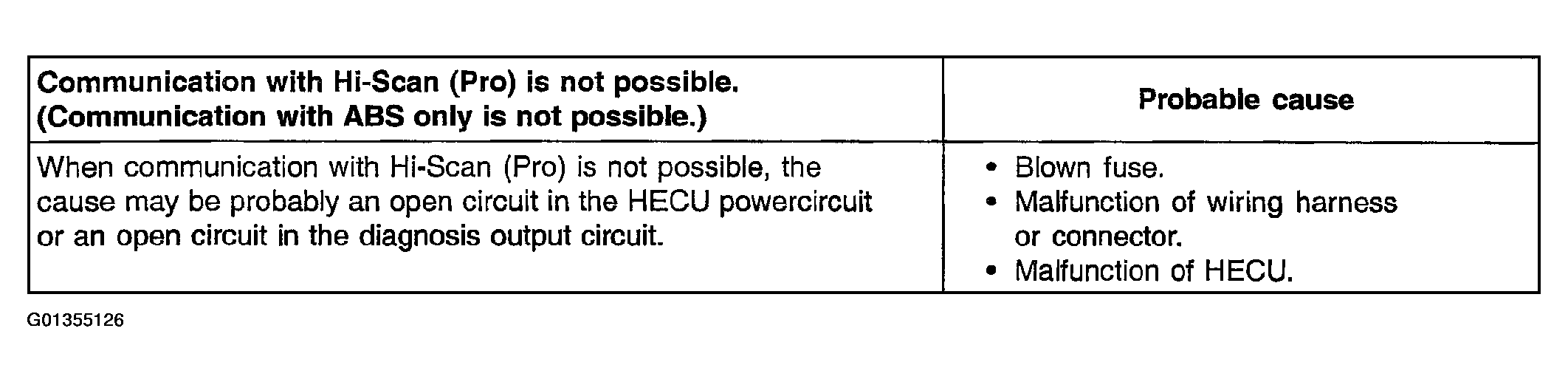

Fig 1: Inspection Procedure 2 Table
Courtesy of HYUNDAI MOTOR CO.

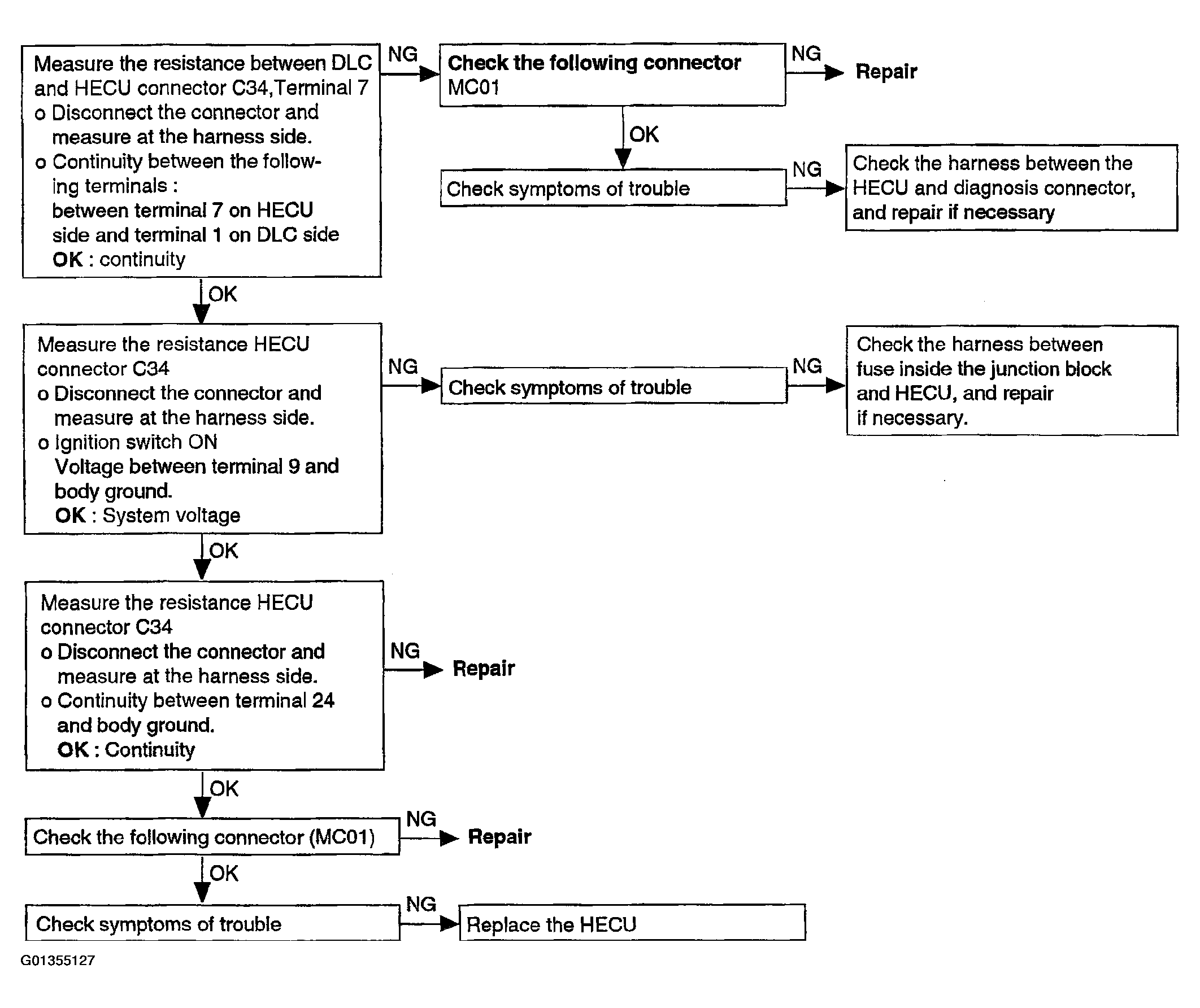

Fig 2: Inspection Procedure 2 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
