Front Fog Lamp Switch [M01-1]

NOTE: For M01-1 connector terminal identification, see Figure .

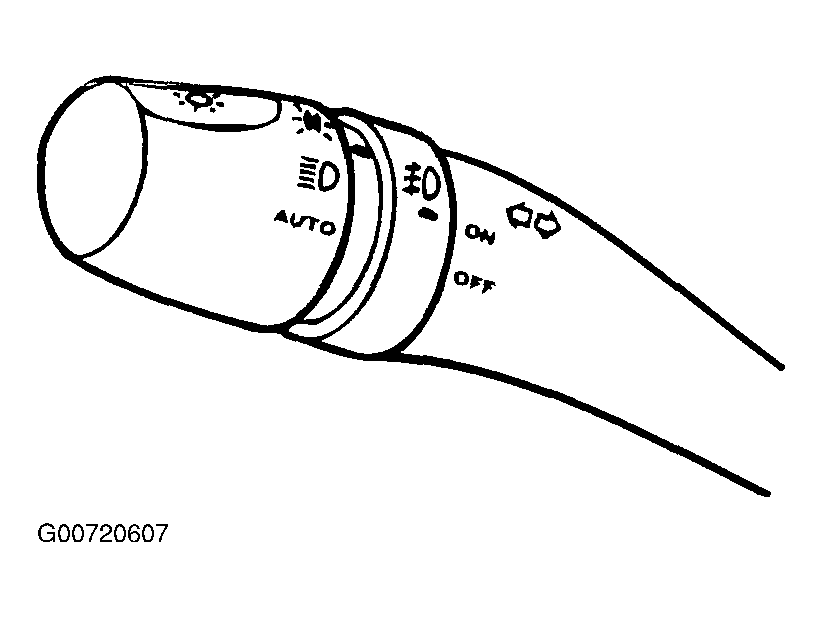

Fig 1: Identifying Front Fog Lamp Switch Positions
G00720607Courtesy of HYUNDAI MOTOR CO.

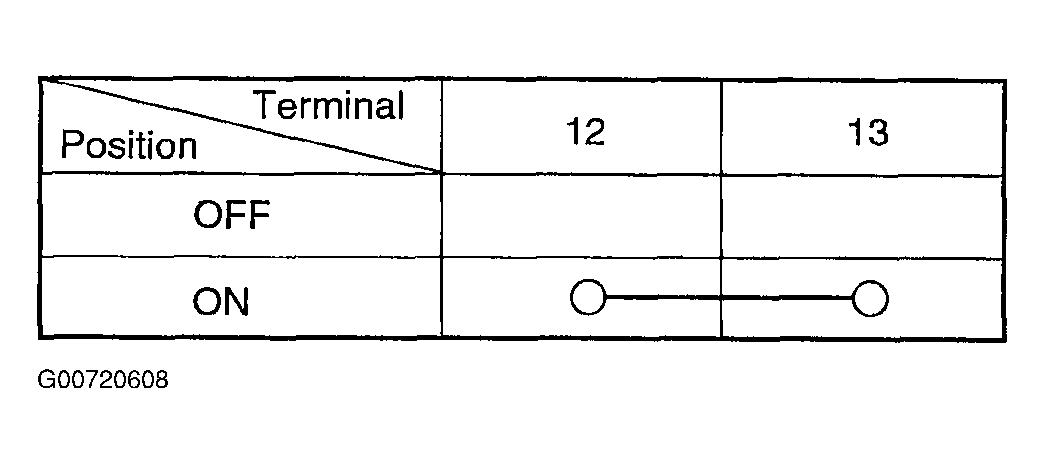

Fig 2: Front Fog Lamp Switch Connector M01-1 Terminal Continuity Table
G00720608Courtesy of HYUNDAI MOTOR CO.
