Control Specification

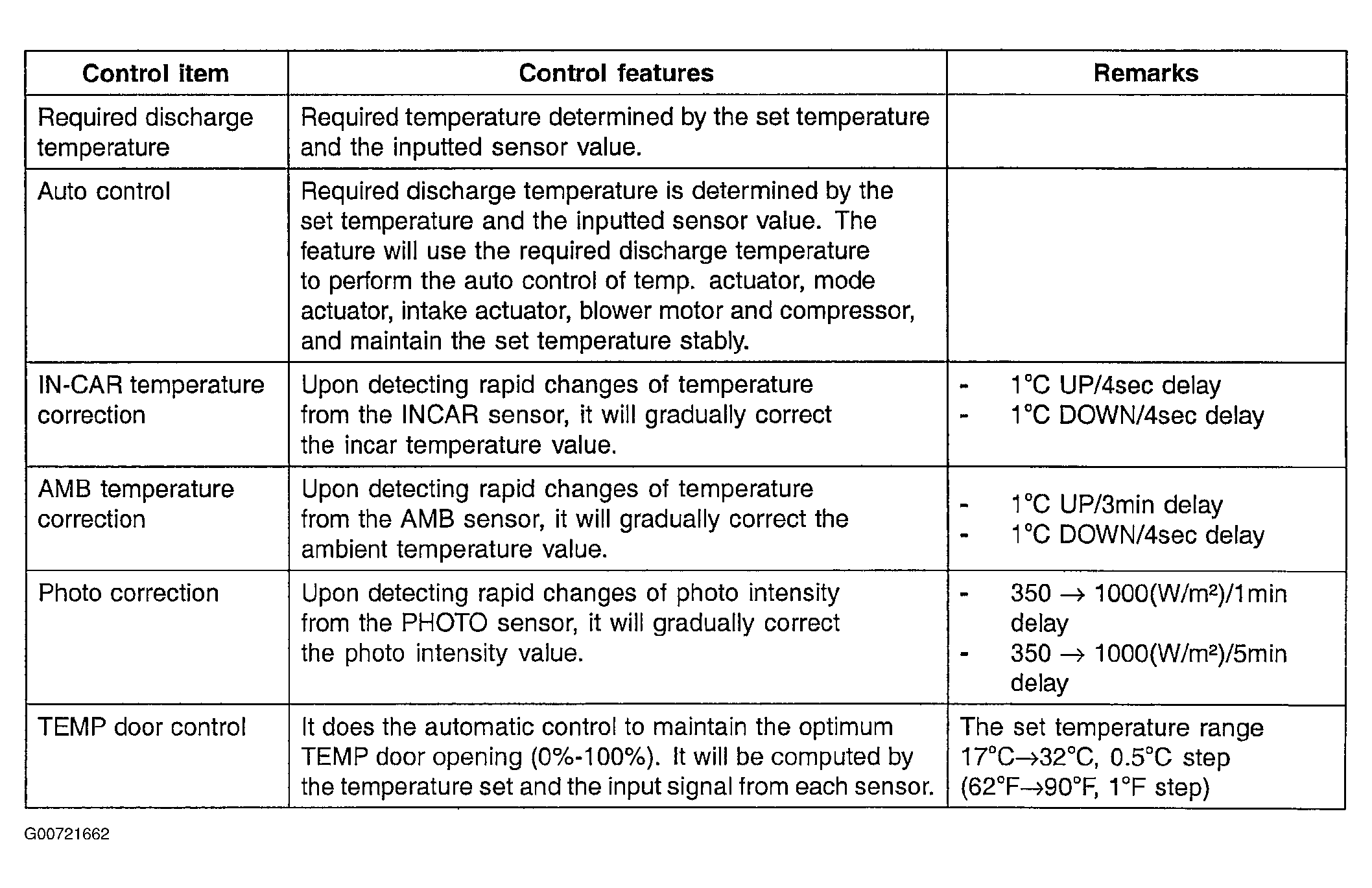

Fig 1: Control Specification Table (1 Of 3)
G00721662Courtesy of HYUNDAI MOTOR CO.

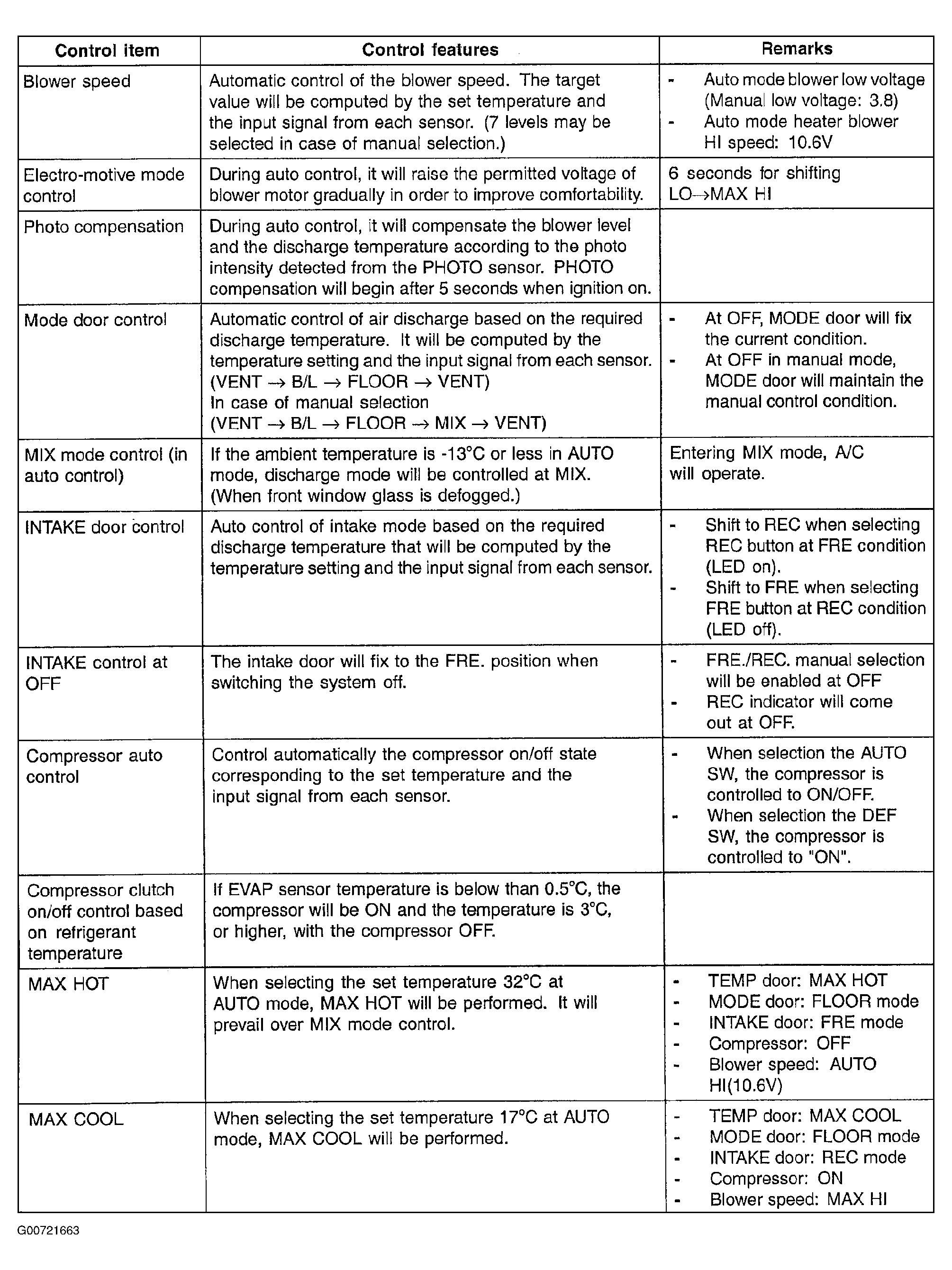

Fig 2: Control Specification Table (2 Of 3)
G00721663Courtesy of HYUNDAI MOTOR CO.

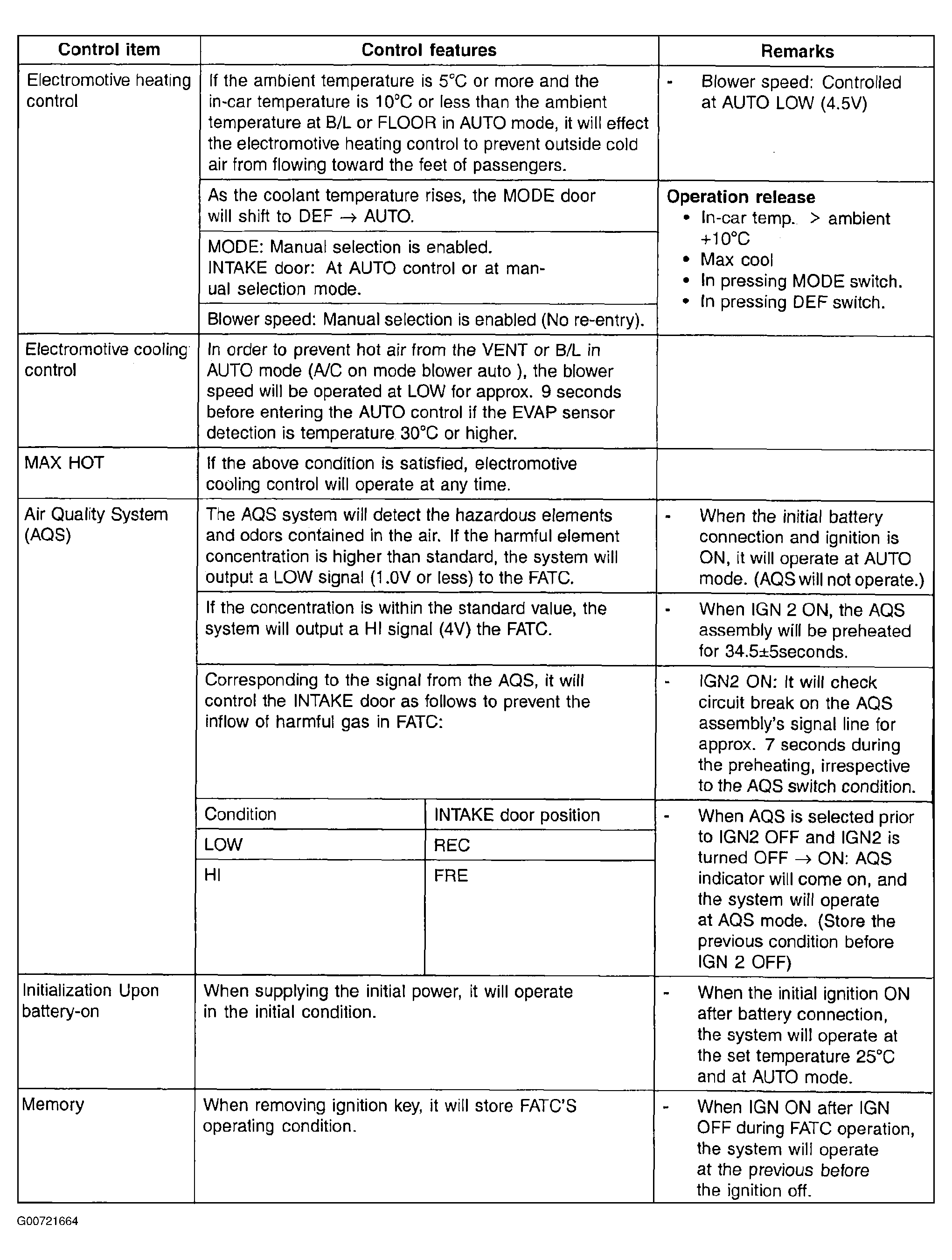

Fig 3: Control Specification Table (3 Of 3)
G00721664Courtesy of HYUNDAI MOTOR CO.
