A/C Compressor Controls (Manual): Compressor: Components

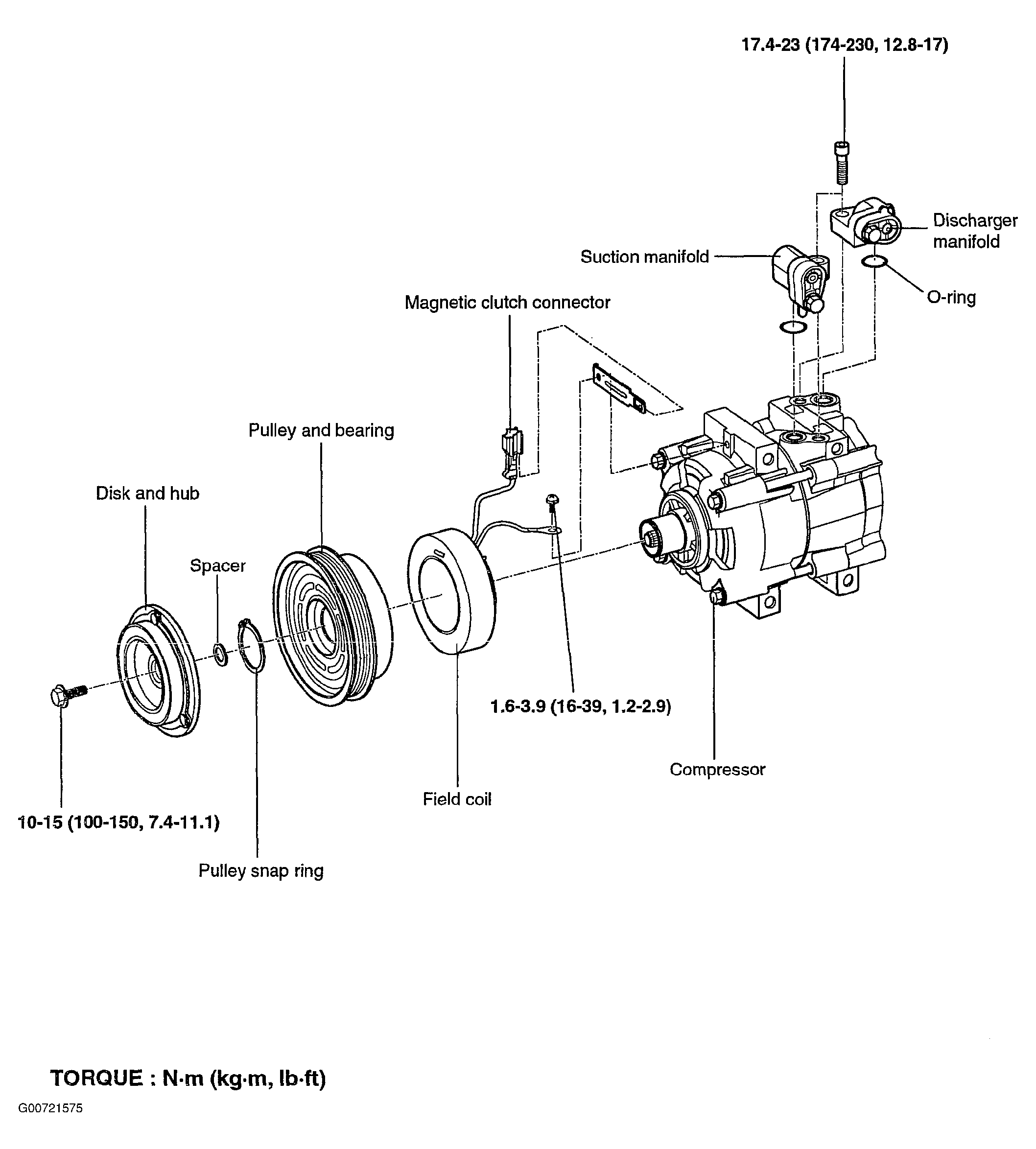

Fig 1: Identifying External A/C Compressor Components
G00721575Courtesy of HYUNDAI MOTOR CO.

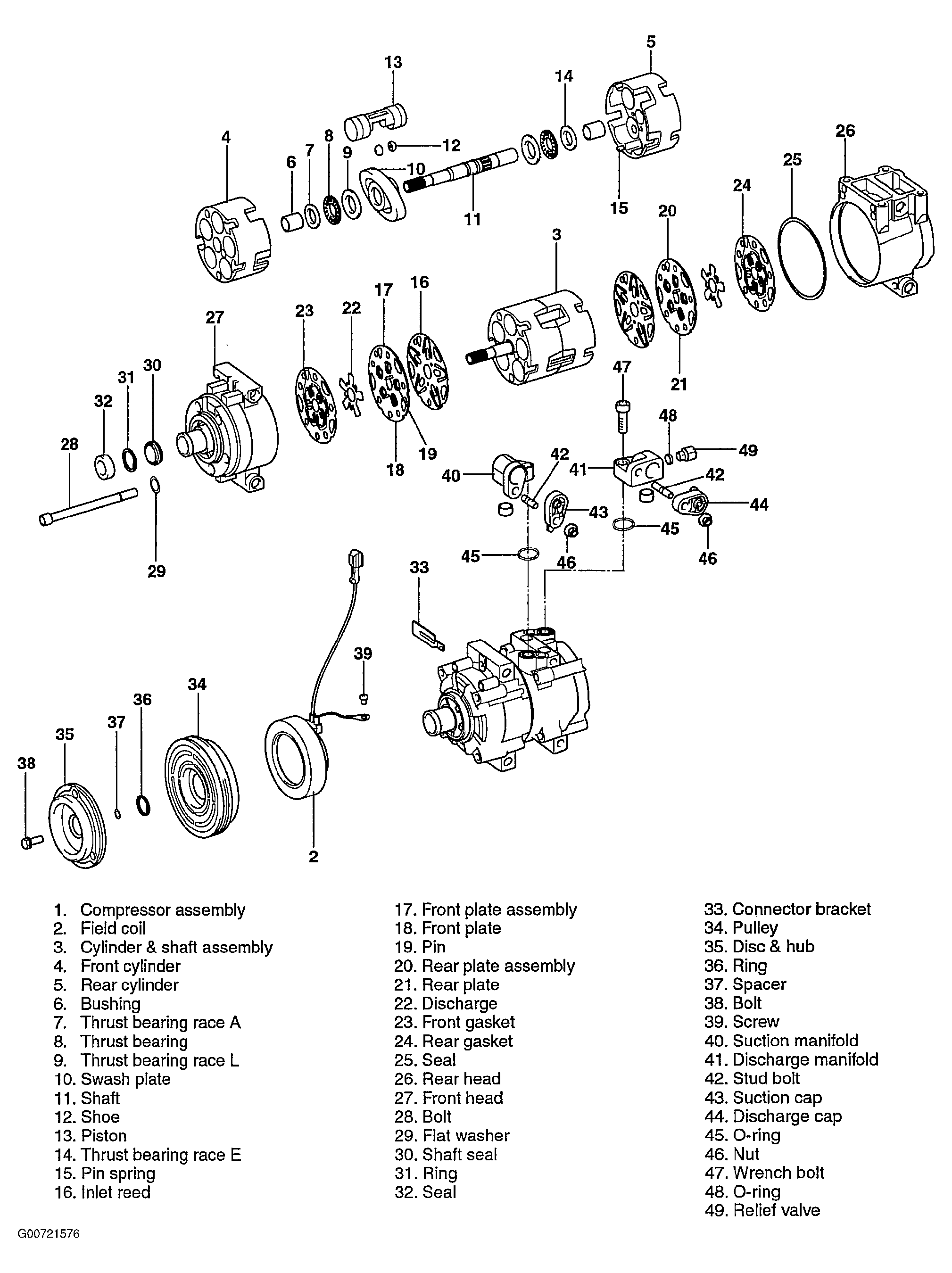

Fig 2: Identifying Internal A/C Compressor Components
G00721576Courtesy of HYUNDAI MOTOR CO.
