Circuit Diagram (With IMS): Components

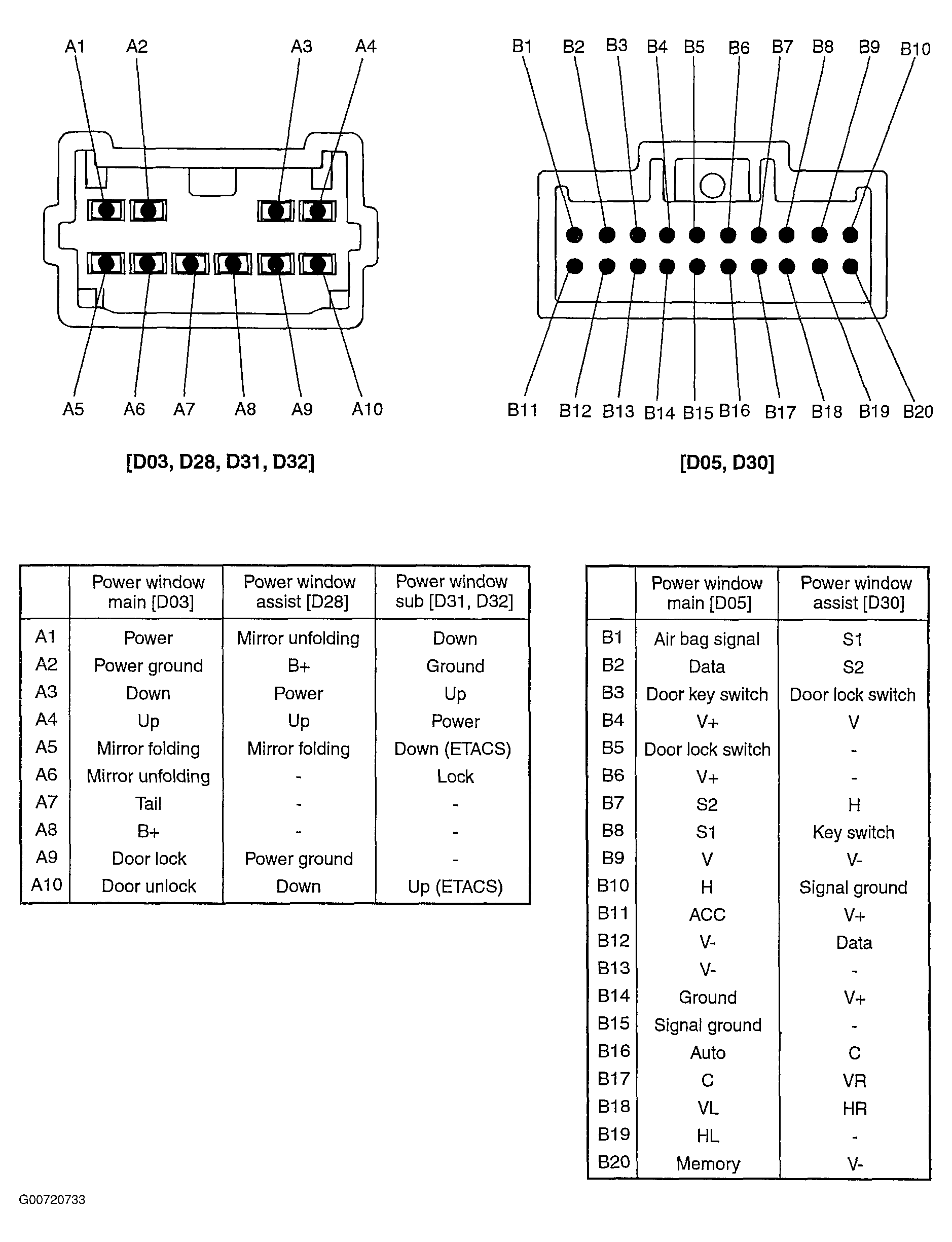

Fig 1: Power Window Circuit Identification (With IMS)

G00720733

Courtesy of HYUNDAI MOTOR CO.
